Bridgeport Fittings 433-SLT Liquid Tight Straight Connector

Product Description

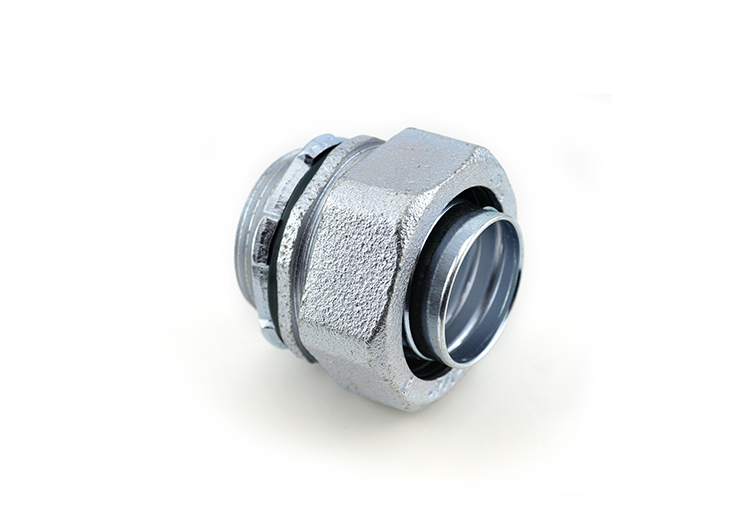

The BRIDGEPORT FITTINGS 433-SLT is a 1-1/4 inch malleable iron liquid tight straight connector designed to create a secure, liquid tight seal between metallic liquid tight conduit and an electrical box or enclosure. Built from malleable iron with an electroplated zinc finish, it delivers heavy-duty impact resistance, abrasion resistance, and long-term corrosion protection in harsh or wet service conditions. The fitting includes NPT threads, a knockout gasket, and an internal sealing ring to maintain a reliable seal at the conduit-to-enclosure junction. Licensed electricians and electrical contractors install this fitting in industrial, commercial, and wet-location applications.

This connector is suited for wet-location installations where conduit must terminate at a box or enclosure with a liquid tight seal intact. It meets NEMA Type 2, 3, 3R, 4, and 12 ratings, satisfies NEC requirements for use in wet locations, and is suitable for use in Class I Division 2, Class II Divisions 1 and 2, and Class III Divisions 1 and 2 per NEC 501.30(B). The 433-SLT is UL Listed under File No. E9391, covering trade sizes 1-1/4 inches through 4 inches.

Key Features

• Malleable iron construction for maximum impact and abrasion resistance in demanding environments
• Electroplated zinc finish provides corrosion resistance for long-term wet-location service
• NPT threads, knockout gasket, and internal sealing ring ensure a complete liquid tight seal
• NEMA Type 2, 3, 3R, 4, and 12 rated for broad environmental coverage
• Meets NEC wet-location requirements and hazardous-location classifications per NEC 501.30(B)
• UL Listed under File No. E9391 for trade sizes 1-1/4 inches through 4 inches

Compatibility

Designed for use with metallic liquid tight conduit terminating at an electrical box or enclosure knockout. Compatible trade sizes in the BRIDGEPORT FITTINGS malleable iron liquid tight straight connector series range from 1-1/4 inches to 6 inches.

Installation Notes

Installation is performed by a licensed electrician in accordance with the NEC and applicable local codes. De-energize all circuits before beginning conduit termination work. Slide the compression nut and inner sealing ring over the conduit before threading the ferrule into the conduit channel, then insert the conduit into the connector body, tighten the compression nut, and secure the fitting to the box knockout using the provided locknut. Do not overtighten the compression nut with power tools, as malleable iron fittings can crack under excessive force.

Technical Specifications

• Trade Size: 1-1/4 inches
• Material: Malleable Iron
• Finish: Electroplated Zinc
• Thread Type: NPT
• NEMA Rating: Type 2, 3, 3R, 4, 12
• Certifications: UL Listed, File No. E9391
• Hazardous Location Rating: Class I Div 2, Class II Divs 1 and 2, Class III Divs 1 and 2 per NEC 501.30(B)

Standard Information

• Brand: BRIDGEPORT FITTINGS
• Manufacturer Part Number: 433-SLT
