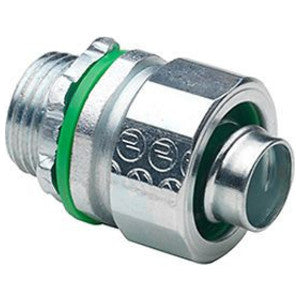

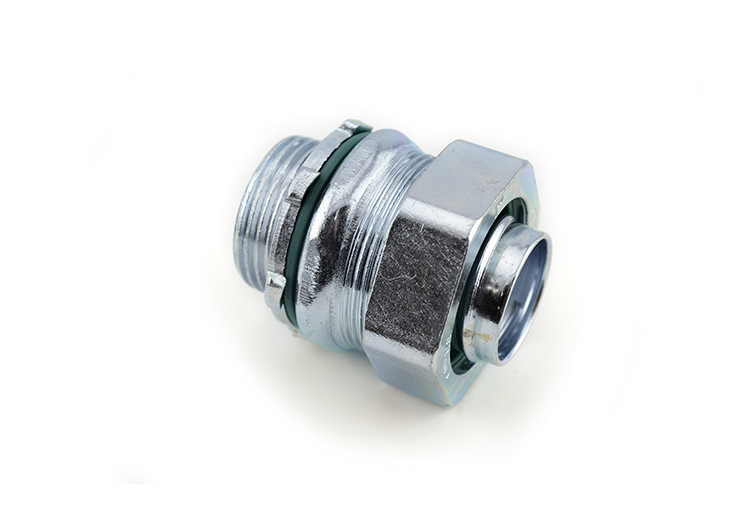

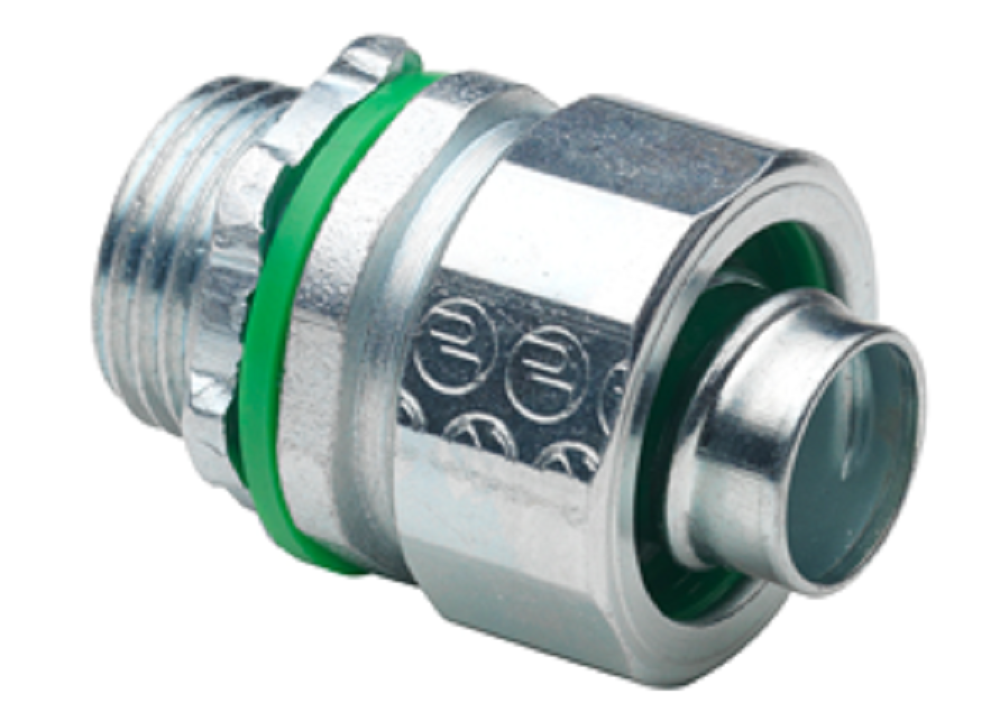

Bridgeport Fittings 432-SLT liquid tight connector steel straight 1 in. box of 5

Product Description

The Bridgeport Fittings 432-SLT is a straight liquid tight connector designed for use with metallic liquidtight conduit. This steel connector, with a zinc plated finish, joins conduit to an electrical box or enclosure, providing a liquid tight connection in wet environments. It features NPT threads, a 1 inch thread length, and sealing gaskets, suitable for hazardous locations and rated for 105 deg C.

• Durable zinc plated steel construction provides corrosion resistance.
• NPT threads, knockout gasket, and internal sealing ring ensure a liquid tight seal.
• UL-Listed, NEMA TYPE 2, 3, 3R, 4, 12, and NEC compliant for wet locations.

Product Highlights

Designed for metallic liquidtight conduit in wet and hazardous locations, featuring UL, CSA, and RoHS compliance.

Product Information

Standard Information

• Brand: BRIDGEPORT FITTINGS
• Manufacturer Part Number: 432-SLT
• Country of Origin: China

Technical Specifications

• Throat Type: Non-Insulated
• Finish: Zinc Plated
• UL Standard: UL-514B
• Material: Steel
• Angle: Straight
• Size: 1 IN
• Type: Connector
• Suitable For Use With: Metallic Liquidtight Conduit
• Application: Hazardous Locations
• Certifications and Approvals: CSA Certified, UL Listed, RoHS Complaint, Class i, Div 2, Class ii, Div 1 And 2, And Class iii, Div 1 And 2
• Thread Length: 1 in
• Temperature Rating: 105 deg C
