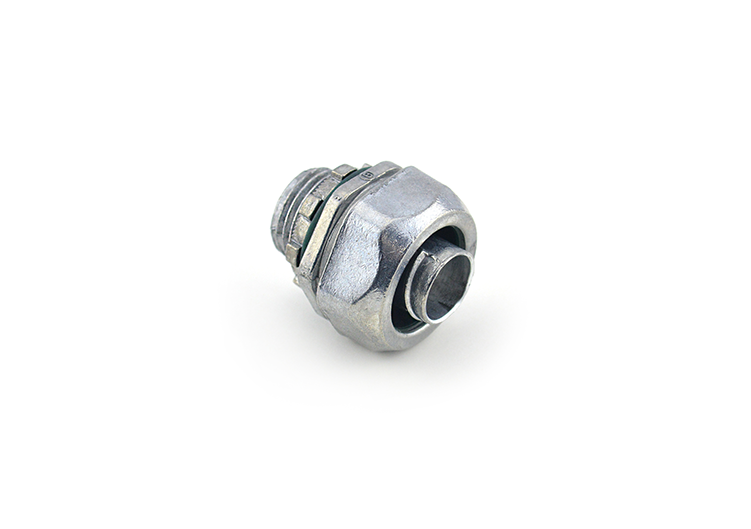

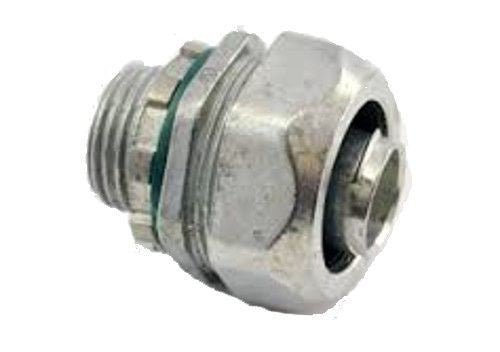

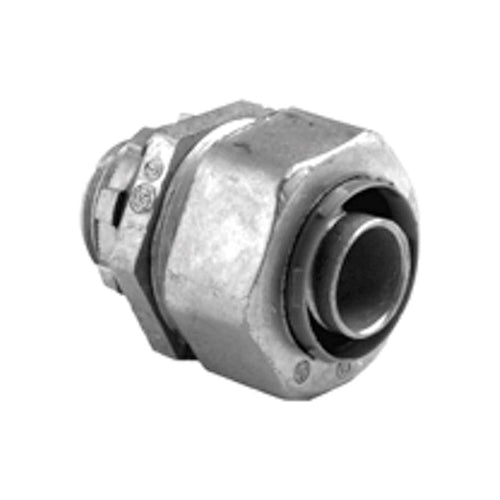

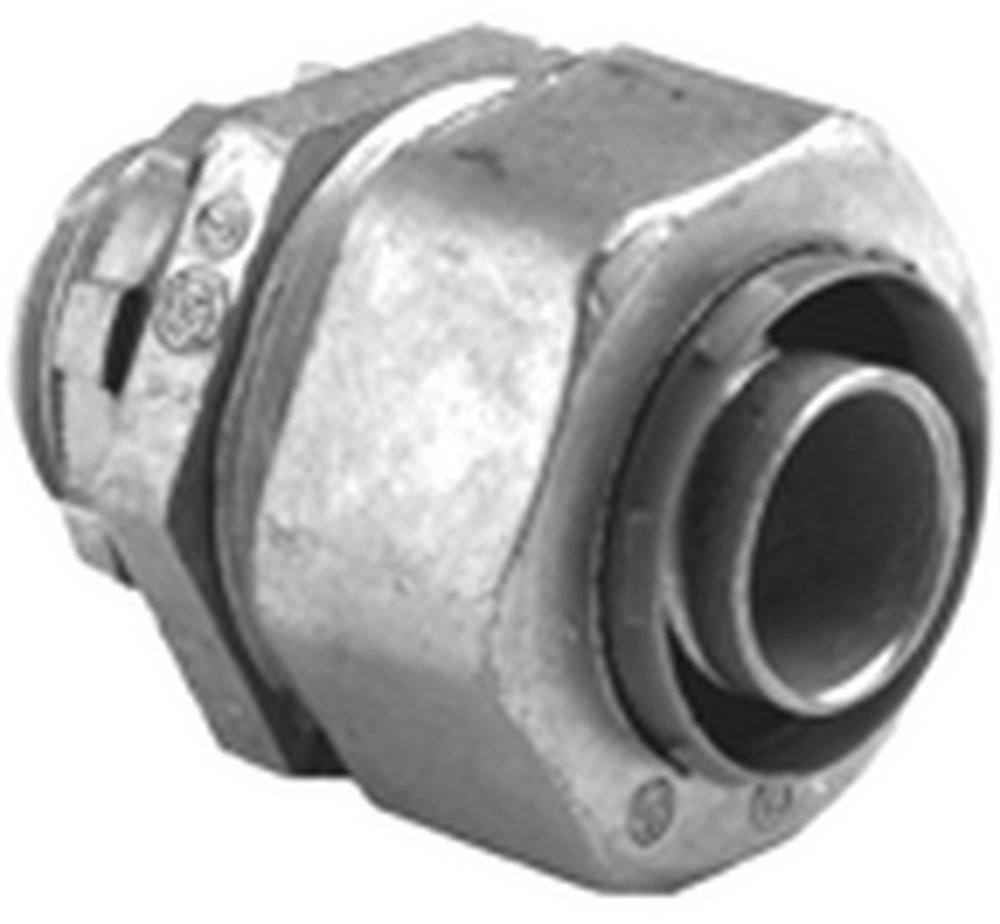

Bridgeport Fittings 430LT2 Conduit Male Zinc Die Cast Connection 1/2 in. Straight 15430

Product Description

The BRIDGEPORT FITTINGS 430LT2 is a straight connector, made from Zinc Alloy, designed for use with metallic and non-metallic "Type B" liquid tight conduit. It joins 1/2 inch liquid tight conduit to a box or enclosure, providing a liquid tight seal in wet environments. This connector features NPT threads, a polyethylene gasket, and an inner sealing ring for secure connections.

• Designed for use with metallic and non-metallic "Type B" liquid tight conduit.
• Features NPT threads, a polyethylene gasket, and an inner sealing ring for a liquid tight seal.
• UL-Listed (UL-514B) and meets NEMA TYPE 2, 3, 3R, 4, and 12 requirements for wet locations.

Product Highlights

Provides a secure, liquid tight connection for conduit in wet and hazardous environments, suitable for Class i, Div 2, Class ii, Div 1, 2, and Class iii, Div 1, 2.

Product Information

Standard Information

• Brand: BRIDGEPORT FITTINGS
• Manufacturer Part Number: 430LT2
• Country of Origin: China

Technical Specifications

• Brand: Bridgeport Fittings
• MPN: 430LT2
• Part Number: B430LT2
• Item Number: 3375961
• Product ID: 43879
• Finish: Ball Burnished Mirror Smooth
• UL Standard: UL-514B
• Material: Zinc Alloy
• Prop 65 Flag: No
• Angle: Straight
• Trade Size: 1/2 Inch
• Type: Connector
• Application: Straight connector for use with metallic and non-metallic "Type B" liquid tight conduit.
• Throat Type: Non-Insulated
• Standards & Approvals: CSA LR39354 Certified, UL E9391 Listed, RoHS Complaint, Class i, Div 2, Class ii, Div 1 And 2, And Class iii, Div 1 And 2
• Conduit Type: Liquid-Tight
• Accessory Type: Conduit Connectors
• Alternate Part Number: 15430
• Catalog Number: 430-LT2
• EU RoHS Indicator: Y
