Bridgeport Fittings 412DC2 Squeeze Conn. 1-1/4 in 180 deg

Product Description

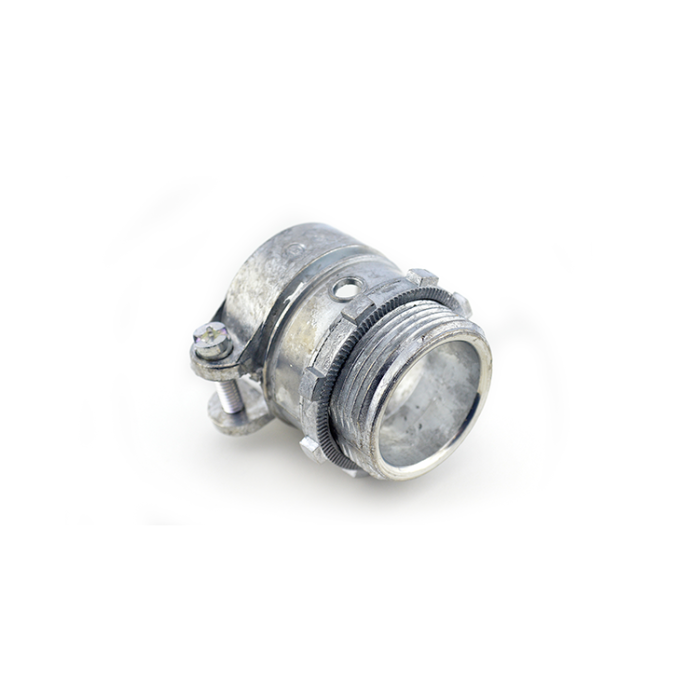

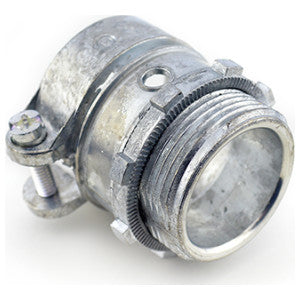

The BRIDGEPORT FITTINGS 412DC2 flexible metal squeeze connector is designed to join flexible metal conduit (FMC) or armored cable to an electrical box or enclosure. This 1-1/4 inch trade size connector is constructed from die cast zinc with a ball burnished mirror smooth finish, ensuring corrosion resistance. It features a 180-degree angle and is furnished with a Tri-drive screw for secure installation, meeting UL-514B standards.

• Secures 1-1/4 inch flexible metal conduit to an electrical box or enclosure through a 1-1/4 inch knockout.
• Constructed from die cast zinc for precise fit, finish, and corrosion resistance in harsh environments.
• cULus listed and RoHS compliant, ensuring safety and adherence to environmental standards.

Product Highlights

Die cast zinc squeeze connector for 1-1/4 inch flexible metal conduit, offering secure connection, corrosion resistance, and safety compliance.

Product Information

Standard Information

• Brand: BRIDGEPORT FITTINGS
• Manufacturer Part Number: 412DC2
• Country of Origin: United States

Technical Specifications

• Finish: Ball Burnished Mirror Smooth
• UL Standard: UL-514B
• Material: Die Cast Zinc
• Prop 65 Flag: No
• Suitable For Use With: Steel/XRW Flexible Metal Conduit
• Angle: 180 deg
• Height: 2-1/4 in
• Trade Size: 1-1/4 in
• Throat Diameter: 1.24 in
• Application: Used to connect steel flexible metal conduit to box or enclosure.
• Connection Type: Squeeze
• Type: Squeeze Flex Connectors
• Use With: Flexible Metallic Conduit
• Throat Type: Non-Insulated
