Bridgeport Fittings 408DC2 fmc straight squeeze connector 3/4 inch 180 deg

Product Description

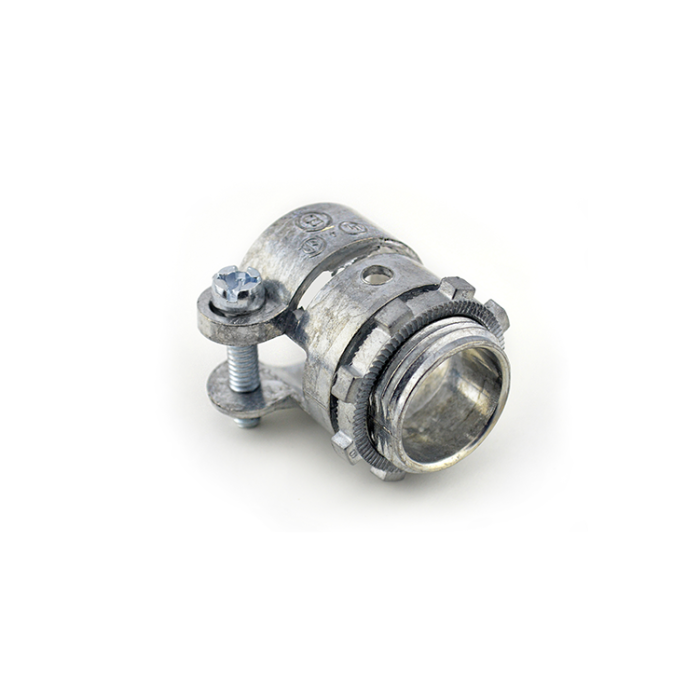

The Bridgeport Fittings 408DC2 is a 3/4 inch FMC Straight Squeeze Connector, designed for connecting flexible metal conduit to a box or enclosure. Constructed from zinc die cast with a ball burnished/mirror smooth finish, this 180-degree connector ensures secure electrical installations. It features a single cable opening and a 0.813 inch throat diameter, suitable for 3/4 inch knockouts.

• Single cable opening
• Connects flexible metal conduit to box or enclosure
• Non-insulated throat

Product Highlights

Zinc die cast construction with a ball burnished/mirror smooth finish, includes a 2-way Phillips/slotted head screw for installation.

Product Information

Standard Information

• Brand: BRIDGEPORT FITTINGS
• Manufacturer Part Number: 408DC2

Technical Specifications

• Series: 408
• Conduit Type: FMC, Straight
• Nominal Size: 3/4 Inch
• Angle: 180 deg
• Material: Zinc Die Cast
• Finish: Ball Burnished/Mirror Smooth
• Includes: 2-Way Phillips/Slotted Head Screw
• Applications: Used to connect steel flexible metal conduit or XRW FMC to box or enclosure.
• Connector Type: Squeeze
• Suitable For Use With: Steel/XRW Flexible Metal Conduit
• OD Min: 1.04 in.
• OD Max: 1.1 in.
• Cable Openings: Single
• Installation: Clamp, Squeeze
• Throat: Non-Insulated
