Bridgeport Fittings 386DC 2 grnd. bush. ins.14-1/0 zinc box of 10

Product Description

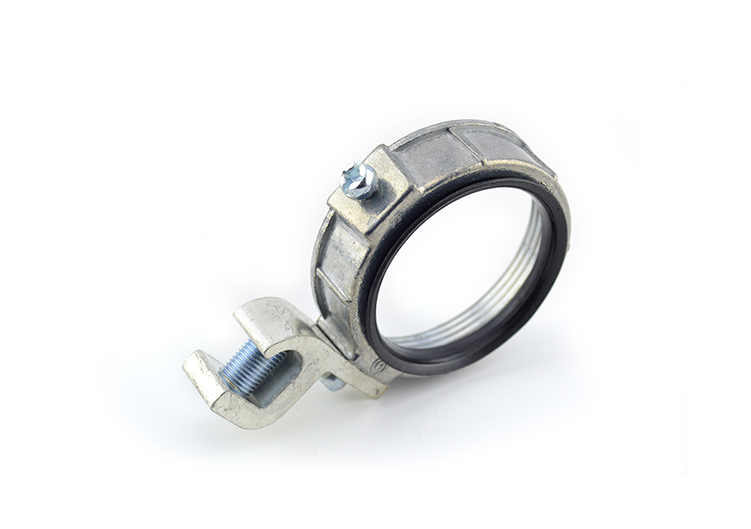

The BRIDGEPORT FITTINGS 386DC is a 2-inch zinc alloy insulated grounding bushing. Designed to terminate conduit to a cabinet with a locknut, it includes a lug for bonding a jumper to a neutral busbar. A plastic metaliner prevents damage to wire insulation, accommodating wire sizes from 14 AWG to 1/0 AWG. This bushing is temperature rated to 150°C and features a ball burnished mirror smooth finish.

• Temperature rated to 150°C for use in industrial environments.
• Features a tin-plated aluminum alloy 6061-T6 grounding lug and plastic metaliner to prevent wire insulation damage.
• Meets OSHA-recognized, NRTL-certified electrical standards, including UL-514B, UL467, CSA, and NEMA FB-1 requirements.

Product Highlights

Insulated grounding bushing for conduit termination, featuring a plastic metaliner for wire protection and a lug for neutral busbar bonding.

Product Information

Standard Information

• Brand: BRIDGEPORT FITTINGS
• Manufacturer Part Number: 386DC

Technical Specifications

• Finish: Ball Burnished Mirror Smooth
• Certifications: UL-514B, UL467, CSA, NEMA FB-1
• Material: Zinc Alloy
• UNSPSC: 39121312
• EAN: 0781747093868
• GTIN: 30781747093869
• UPC: 781747093868
• Temperature Rating: 150°C
• Size: 2-Inch
• Type: Insulated Ground Bushing
• Wire Range: 14-1/0
