Bridgeport Fittings 385DC 1-1/2 Ins Grd Bush

Product Description

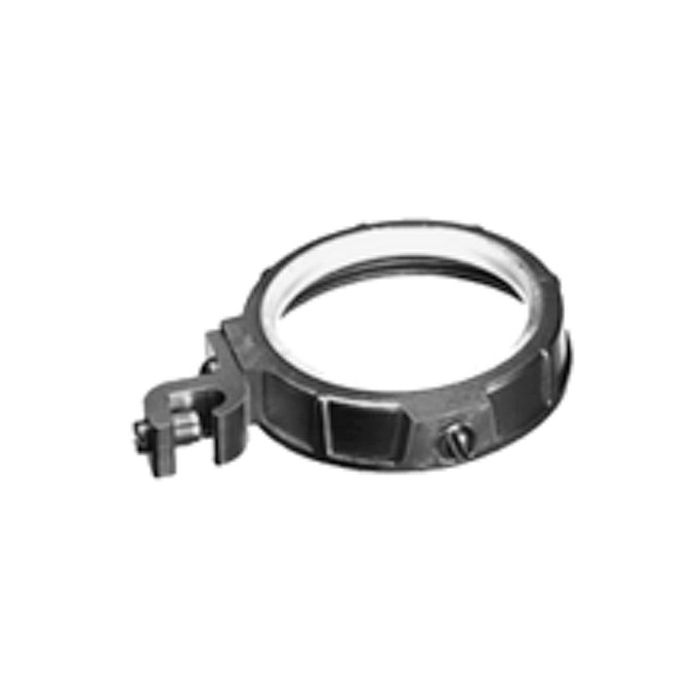

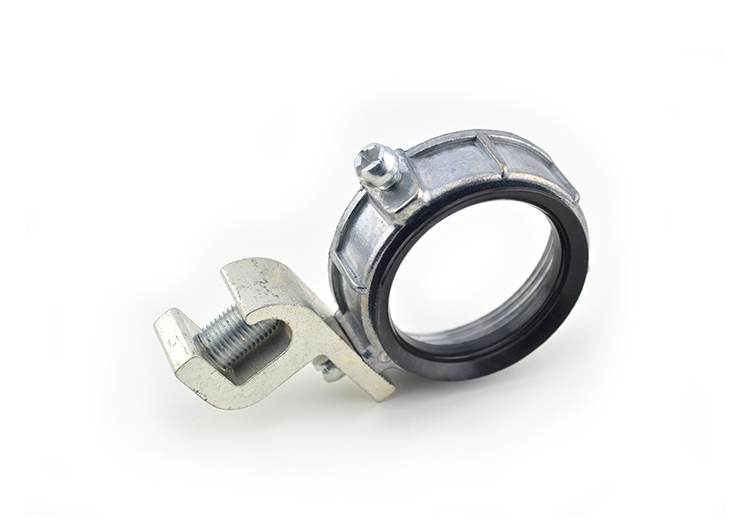

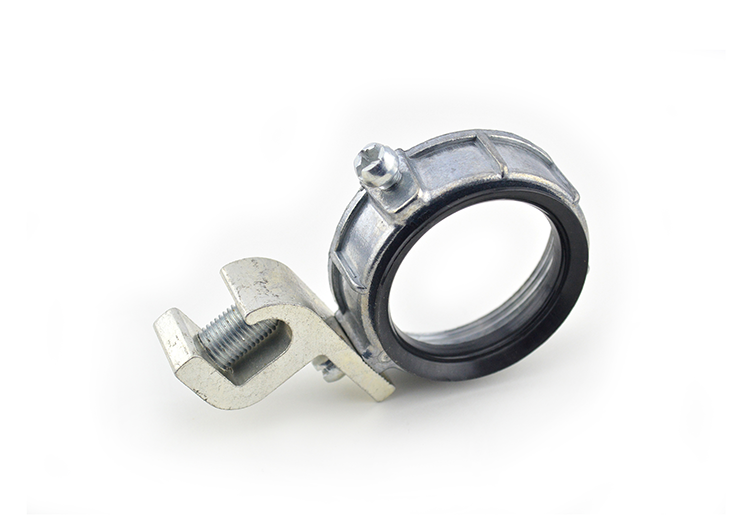

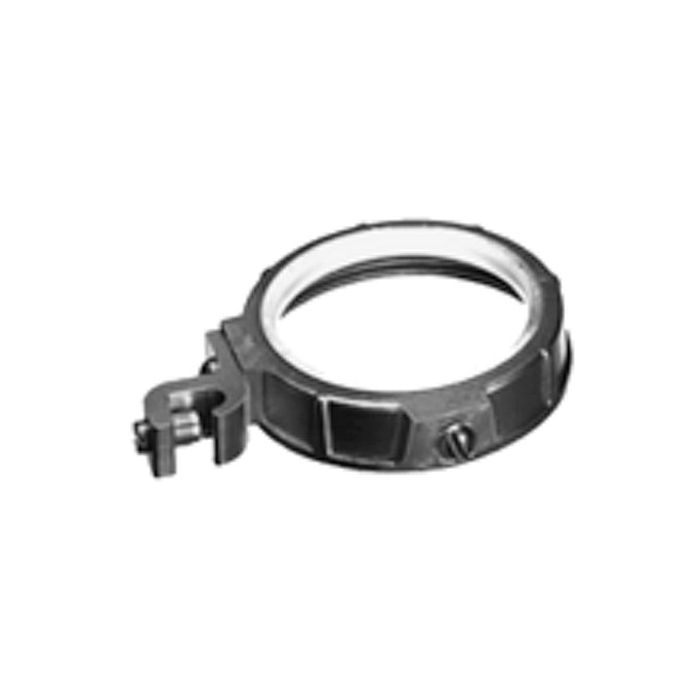

The Bridgeport 385DC 1-1/2 Insulated Grounding Bushing is designed to terminate conduit to a cabinet using a locknut. It features a plastic metaliner to prevent damage to wire insulation and includes a 14 to 1/0 lug for bonding a jumper to a neutral busbar. This zinc die cast bushing is temperature rated to 150 deg C.

• Plastic metaliner prevents damage to wire insulation.
• Includes a 14 to 1/0 lug for bonding a jumper to a neutral busbar.
• Temperature rated to 150 deg C for use in industrial environments.

Product Highlights

Zinc die cast insulated grounding bushing with a 150 deg C temperature rating and a 14 to 1/0 lug.

Product Information

Standard Information

• Brand: BRIDGEPORT FITTINGS
• Manufacturer Part Number: 385DC

Technical Specifications

• Manufacturer: Bridgeport Fittings
• Manufacturer Part Number: 385DC
• Parts Town Number: BPFT385-DC
• Units: Each
• Finish: Ball Burnished Mirror Smooth
• UL Standard: UL-514B & UL467
• Material: Zinc Die Cast
• UNSPSC: 39121312
• EAN/UCC-13: 0781747093851
• GTIN: 30781747093852
• Prop 65 Flag: No
• UPC: 781747093851
• AC Cable Size: 14 to 1/0 AWG
• Insulation Type: Insulated
• Temperature Rating: 150 deg C
• Trade Size: 1-1/2 Inch
• Type: Bushing
