Bridgeport Fittings 383DC Ground Bushing Insulated 1 Inch

Product Description

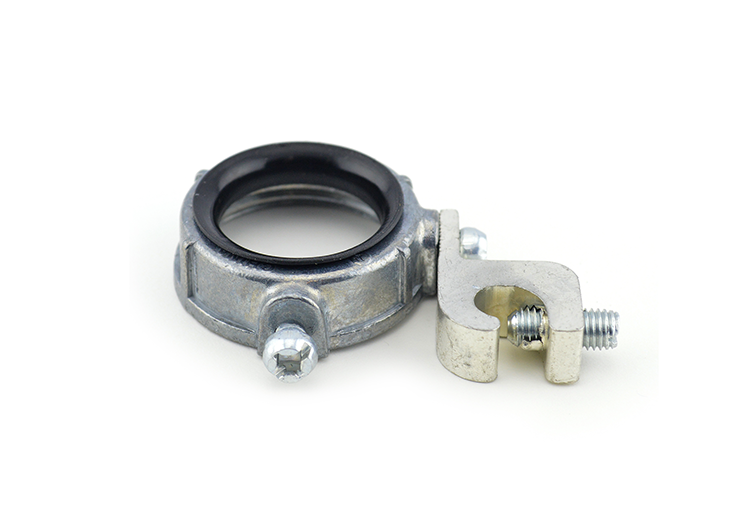

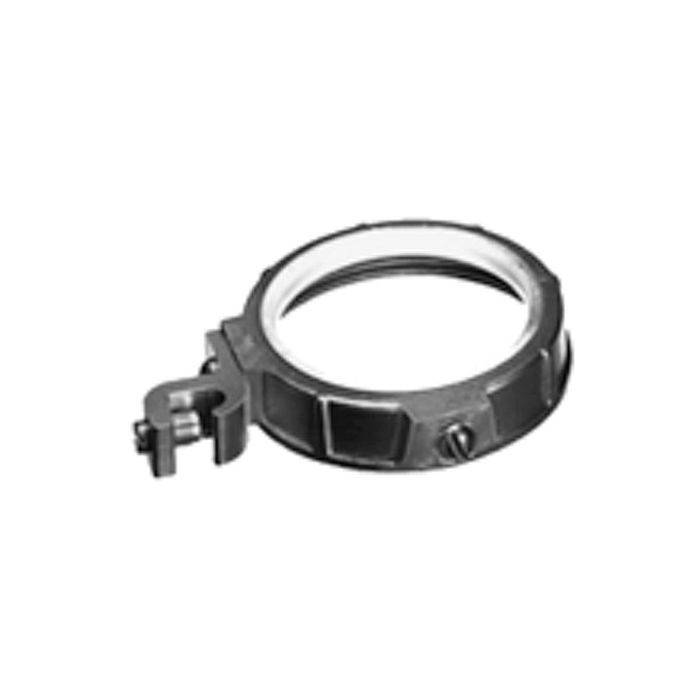

The BRIDGEPORT FITTINGS 383DC is a 1-inch Zinc Die Cast Insulated Grounding Bushing designed to terminate conduit to a cabinet using a locknut. It features a plastic metaliner to prevent damage to wire insulation and includes a 14 to 4 lug for bonding a jumper to a neutral busbar, ensuring secure electrical connections.

• Zinc casting byproducts can be melted down and recast to make new metals without property degradation.
• Temperature rated to 150 degrees Celsius for use in industrial environments.
• Tin-plated aluminum alloy 6061-T6 grounding lug and plastic metaliner protect wire insulation.

Product Highlights

Insulated grounding bushing for conduit termination, featuring wire insulation protection and a lug for neutral busbar bonding.

Product Information

Standard Information

• Brand: BRIDGEPORT FITTINGS
• Manufacturer Part Number: 383DC

Technical Specifications

• Finish: Ball Burnished Mirror Smooth
• UL Standard: UL-514B & UL467
• Material: Zinc Alloy
• Color: Grey with Black Insulator
• AC Cable Size: 14 to 4 AWG
• Insulation Type: Insulated
• Temperature Rating: 150 deg C
• Nominal Size: 1 Inch
