Bridgeport Fittings 3838ASP Flexible Conduit Connector 1/2 Inch

Product Description

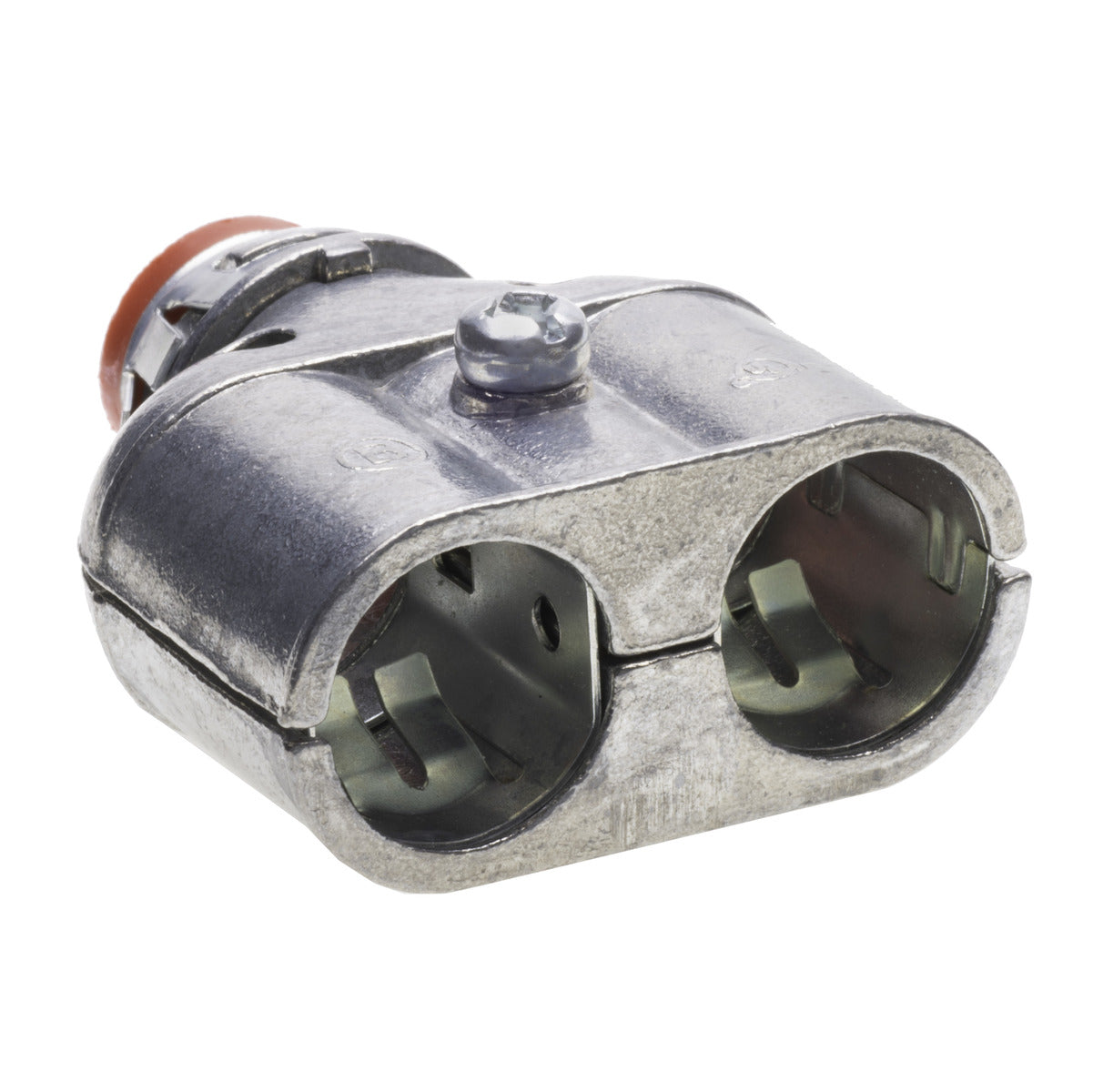

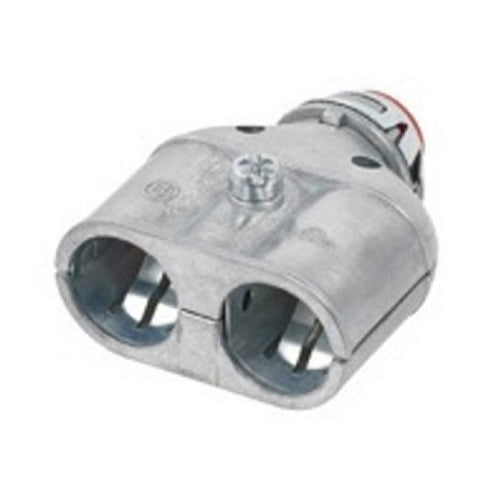

The BRIDGEPORT FITTINGS 3838ASP is a flexible conduit connector with an insulated throat. Constructed from ball burnished mirror smooth die-cast zinc, this straight type connector is suitable for steel or aluminum armored/metal clad cable and flexible metal conduit. It features a snap-in installation and fits a 1/2 inch knockout. It is designed for duplex cable openings.

• ROHS Compliant
• Snap-In Installation
• Insulated Throat

Product Highlights

This Bridgeport Fittings connector ensures secure and easy connections for various cable types, offering durability and convenience.

Product Information

Standard Information

• Brand: BRIDGEPORT FITTINGS
• Manufacturer Part Number: 3838ASP

Technical Specifications

• Approval: UL 514B, UL (Canada and US)
• Cable Opening: Duplex
• Cable/Conduit Type: Steel/Aluminum Armored/Metal Clad Cable, Flexible Metal Conduit
• Cord Size: (2) 14 AWG to (2) 10 AWG (Armored/Metal Clad Cable)
• Installation: Snap-In
• Knockout Size: 1/2 Inch
• Manufacturer Name: Bridgeport Fittings
• Material: Ball Burnished Mirror Smooth Die-Cast Zinc
• Product UPC: 781747086907
• Throat Type: Insulated
• Type: Straight
• Trade Size: 3/8 in
• Cable Openings: 0.38 to 0.59 in
• Finish: Ball Burnished/Mirror Smooth
• Application: For use with cable type 0.38 to 0.59 in steel or aluminum AC/MC/MCIA and 3/8 in steel or aluminum FMC
• Cable Type: Aluminum/AC/MC/MCI-A/FMC/HCF/HCFMCI-A/Steel
• Standards/Approvals: cULus Listed|NEMA FB-1 Rated|RoHS Compliant|UL 514B|UL Listed File No. E20534
• Temperature Rating: 105 deg C
