Bridgeport Fittings 382DC grounding bushing insulated 3/4 box of 50

Product Description

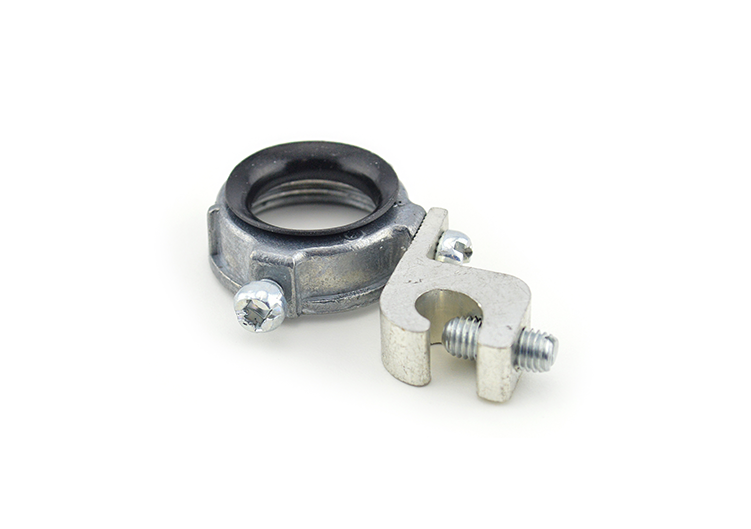

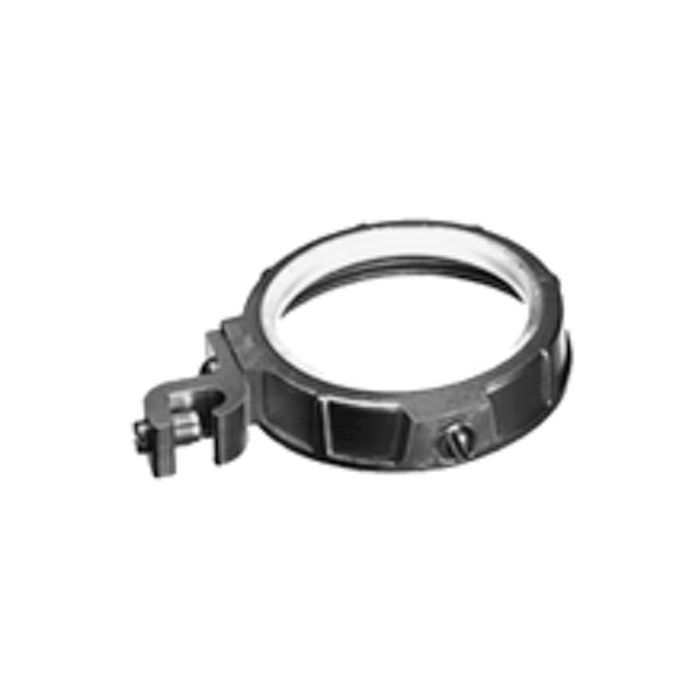

The Bridgeport Fittings 382DC Insulated Grounding Bushing terminates 3/4-inch conduit to a cabinet using a locknut. Constructed from zinc die cast with a ball burnished, mirror smooth finish, it features a plastic metaliner to prevent wire insulation damage. It supports wire sizes from 14 AWG solid to 4 AWG stranded and includes a tin electroplated 6061-T6 aluminum alloy lug for bonding to a neutral busbar. This bushing is temperature rated to 150°C.

• Temperature rated to 150°C for use in industrial environments.
• Features a plastic metaliner to prevent damage to wire insulation.
• Includes a tin-plated aluminum alloy 6061-T6 grounding lug.

Product Highlights

Insulated grounding bushing for 3/4-inch conduit, featuring a protective metaliner and 150°C temperature rating.

Product Information

Standard Information

• Brand: BRIDGEPORT FITTINGS
• Manufacturer Part Number: 382DC

Technical Specifications

• Finish: Ball Burnished Mirror Smooth
• UL Standard: UL 514B & UL467
• Material: Zinc Die Cast Alloy
• Color: Grey with Black Insulator
• UNSPSC: 39121312
• EAN/UCC-13: 0781747093820
• GTIN: 30781747093821
• UPC: 781747093820
• Connector Type: Crimp
• Terminal: Lug
• Temperature Rating: 150°C
• Maximum Voltage: 600 Volts DC
• Wire Size: 14 to 4 AWG
• Trade Size: 3/4 in
