Bridgeport Fittings 381dc grounding bushing 1/2 in

Product Description

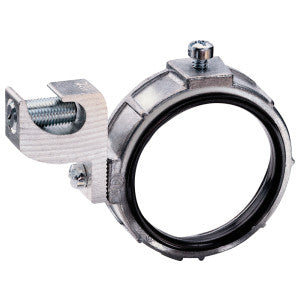

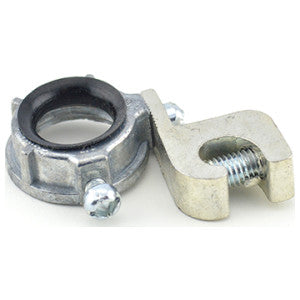

The BRIDGEPORT FITTINGS 381DC is a zinc die cast grounding bushing designed to join 14 to 4 AWG conduit to 1/2 inch conduit. This threaded and insulated bushing features an aluminum alloy lug, suitable for terminating service conduit to cabinets with a locknut. It includes a plastic metaliner to prevent wire insulation damage and is rated for 150°C. It is ideal for use with rigid/IMC conduit.

• Joins 14 to 4 AWG conduit to 1/2 inch conduit.
• Threaded and insulated zinc die cast construction.
• Features an aluminum alloy 6061-T6 grounding lug.

Product Highlights

Insulated grounding bushing for conduit termination, featuring wire insulation protection and a 150°C temperature rating.

Product Information

Standard Information

• Brand: BRIDGEPORT FITTINGS
• Manufacturer Part Number: 381DC
• Country of Origin: China

Technical Specifications

• Size: 1/2 in
• Material: Zinc Die Cast
• Finish: Ball burnish
• Connection Type: Threaded
• Use With: Rigid/IMC Conduit
• Lug Capacity: 14 to 4 AWG
• Lug Type: Aluminum Alloy
• Temperature Rating: 150°C
• Type: Bushing
