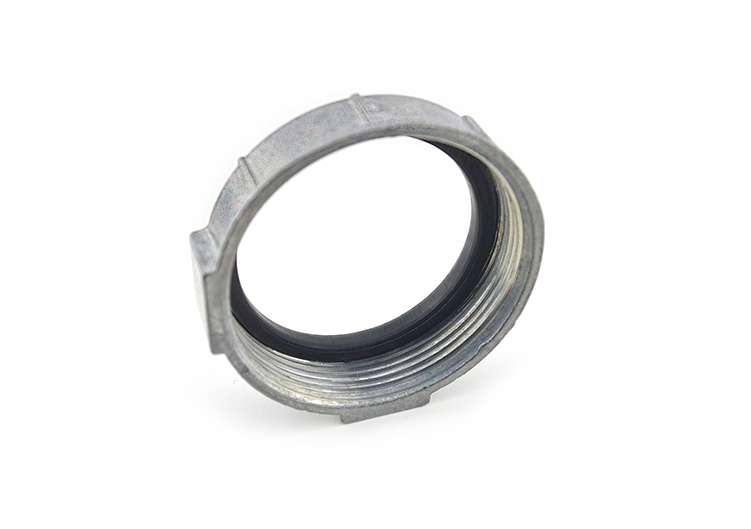

Bridgeport Fittings 366-DC Conduit Bushing Zinc Die Cast Insulated 150°C 2 in. 10-Pack

Product Description

The BRIDGEPORT FITTINGS 366-DC is a 2-inch insulated zinc die cast bushing designed for use with threaded rigid or IMC conduit. It facilitates termination to a box using a locknut, protecting conductors from damage. Featuring a plastic metaliner, this bushing prevents wire insulation abrasion. It has a threaded female installation and is constructed from ball burnished, mirror smooth zinc, with a temperature rating of 150 degrees Celsius.

• Protects conductors inside threaded rigid or IMC conduit entering a box.
• Features a plastic metaliner to prevent damage to wire insulation.
• Temperature rated to 150 degrees Celsius for industrial environments.

Product Highlights

This insulated zinc die cast bushing ensures conductor protection and secure conduit termination in high-temperature applications.

Product Information

Standard Information

• Brand: BRIDGEPORT FITTINGS
• Manufacturer Part Number: 366-DC
• Country of Origin: China

Technical Specifications

• Color: Black
• Type: Bushing, Insulated
• Material: Zinc Die Cast
• Size: 2 Inch
• Finish: Ball Burnished Mirror Smooth
• Ul Standard: UL-514B
• Shape: hex bushing
• Diameter: 2-5/8-Inch
• Height: 11/16-Inch
• Temperature Rating: 150°C
