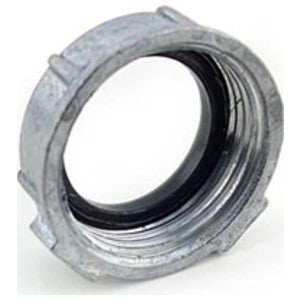

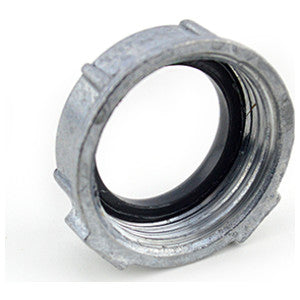

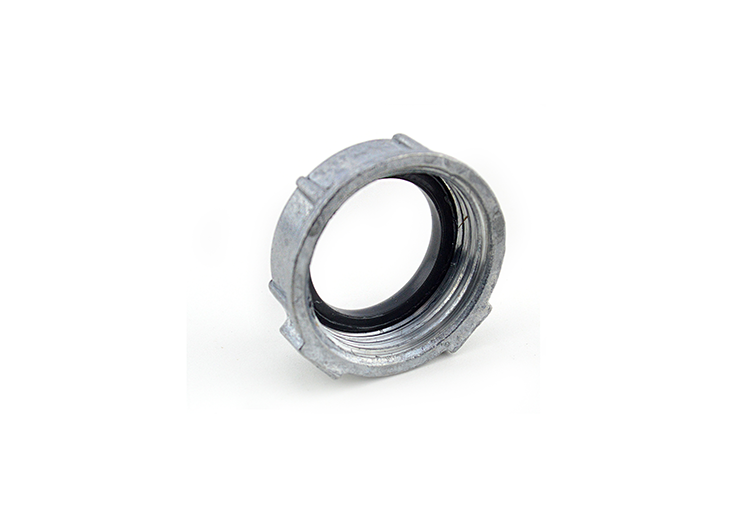

Bridgeport Fittings 363-DC Insulated Zinc Die Cast Bushing 1 inch Box of 50

Product Description

The BRIDGEPORT FITTINGS 363-DC Insulated Zinc Die Cast Bushing is designed for terminating threaded rigid or IMC conduit to a box. This 1-inch bushing, made from zinc die cast material, is used with a locknut to protect electrical conductors. It features a plastic metaliner to prevent damage to wire insulation, ensuring secure and safe electrical installations. The bushing is temperature rated to 150°C.

• Protects conductors inside threaded rigid or IMC conduit entering a box.
• Features a plastic metaliner to prevent wire insulation damage.
• Constructed from zinc die cast material with a 150°C temperature rating.

Product Highlights

Insulated zinc die cast bushing for conduit termination, protecting conductors and wire insulation.

Product Information

Standard Information

• Brand: BRIDGEPORT FITTINGS
• Manufacturer Part Number: 363-DC
• Country of Origin: China

Technical Specifications

• Color Family: Gray
• Height: 0.5 in.
• Length: 1 in.
• MPN: 363-DC
• Brand: BRIDGEPORT FITTINGS
• Finish: Ball Burnished Mirror Smooth
• UL Standard: UL-514B
• Material: Zinc Die Cast
• Size: 1 inch
• Type: Insulated Bushing
• Insulation: Insulated
• Temperature Rating: 150°C
