Bridgeport Fittings 362-DC insulated zinc die cast bushing 3/4 in. box of 100

Product Description

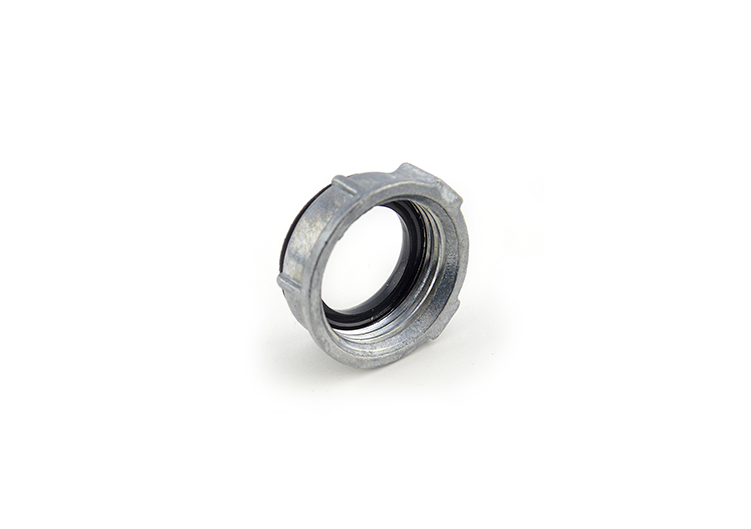

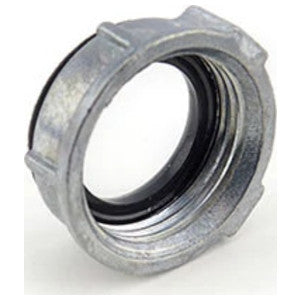

The Bridgeport Fittings 362-DC is a 3/4 inch insulated zinc die cast bushing designed to protect conductors. It is used with a locknut to secure threaded rigid or IMC conduit entering an electrical box. This bushing features a plastic metaliner to prevent damage to wire insulation, ensuring safe and reliable electrical installations. Its robust zinc alloy construction provides durability for industrial environments.

• Temperature rated to 150°C for industrial environments.
• Incorporates a plastic metaliner to prevent wire insulation damage.
• Threaded coupling facilitates easy connections for rigid or IMC conduits.

Product Highlights

This Bridgeport Fittings 362-DC insulated zinc die cast bushing protects conductors in 3/4 inch rigid or IMC conduit, featuring a 150°C temperature rating and a plastic metaliner.

Product Information

Standard Information

• Brand: BRIDGEPORT FITTINGS
• Manufacturer Part Number: 362-DC
• Country of Origin: China

Technical Specifications

• Finish: Ball Burnished Mirror Smooth
• UL Standard: UL-514B
• Material: Zinc Alloy
• Trade Size: 3/4 Inch
• Temperature Rating: 150 C
• Type: Bushing
• Insulation Type: Insulated
• Dimensions: 13/16 in ID x 1-5/16 in OD x 7/16 in W
