Bridgeport Fittings 3501 3/4 Inch Rigid Imc Set Screw Connector

Product Description

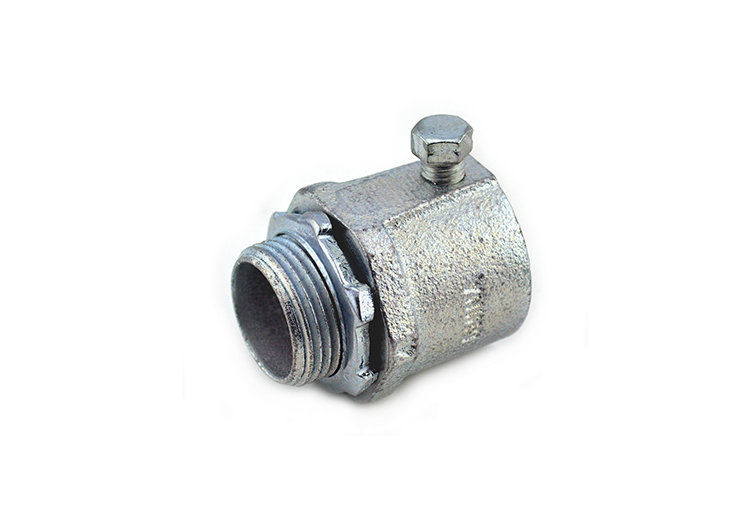

The BRIDGEPORT FITTINGS 3501 is a malleable iron set screw connector designed to join unthreaded rigid or IMC conduit to a box or enclosure. The connector forms a concrete-tight seal that keeps concrete aggregate from abrading conductor insulation or reducing usable raceway area. A single set screw secures the conduit without threading, making installation straightforward. Malleable iron construction delivers high tensile strength and long service life in commercial and industrial wiring applications. This connector meets UL Standard UL-514B, confirming it is listed for use in standard electrical installations.

This connector is used in commercial and industrial electrical installations where rigid metal conduit or IMC must terminate at a junction box, pull box, or enclosure. It is appropriate for use in concrete-pour applications where aggregate intrusion into the raceway must be prevented. Licensed electricians install this fitting during rough-in and finish wiring work on new construction and retrofit projects where a concrete-tight connection is required at an enclosure entry point.

Key Features

• Concrete-tight seal prevents aggregate intrusion and protects conductor insulation
• Set screw connection secures unthreaded rigid or IMC conduit without field threading
• Malleable iron construction provides high tensile strength and durability
• Listed to UL Standard UL-514B for safe use in electrical enclosure applications
• 3/4 inch trade size fits standard 3/4 inch rigid and IMC conduit

Compatibility

Designed as an OEM-style replacement fitting for 3/4 inch rigid metal conduit and IMC terminations at electrical boxes and enclosures.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code. De-energize the circuit and verify the absence of voltage before making connections at any enclosure. Insert the conduit fully into the connector body and tighten the set screw to secure the assembly. Do not use this fitting with flexible conduit or EMT, which require different connector types.

Technical Specifications

• Trade Size: 3/4 inches
• Material: Malleable Iron
• Connection Type: Set Screw
• Conduit Type: Rigid or IMC
• Listing: UL-514B
• Seal Rating: Concrete-Tight

Standard Information

• Brand: BRIDGEPORT FITTINGS
• Manufacturer Part Number: 3501
