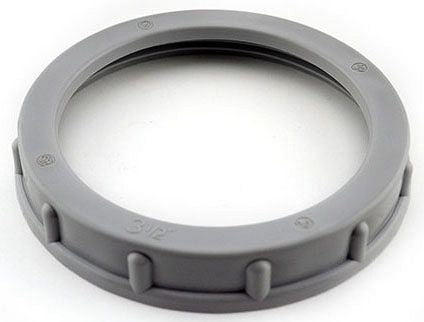

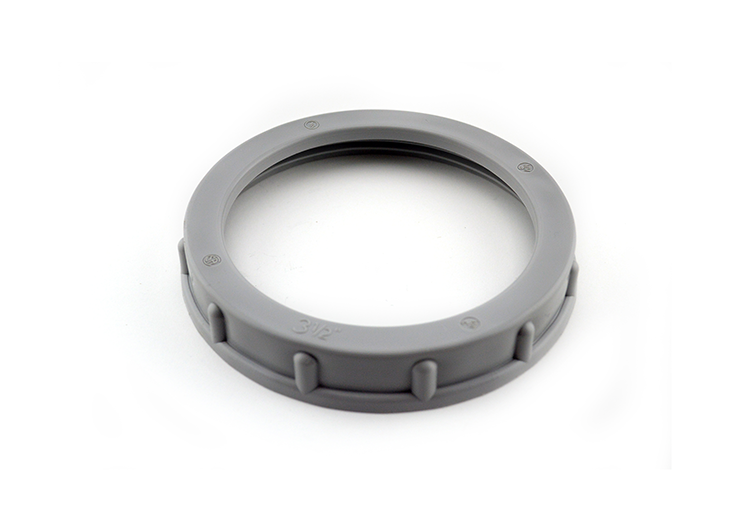

Bridgeport Fittings 329 Conduit Bushing Plastic Insulating 3-1/2 in

Product Description

The BRIDGEPORT FITTINGS 329 is a 3-1/2 inch plastic insulating bushing designed for terminating threaded rigid and IMC conduits to a box. It can be used with a locknut for termination or with a connector to prevent damage to wire insulation. This bushing is temperature rated to 105 degrees C.

• Plastic insulating construction for electrical applications.
• Designed for 3-1/2 inch threaded rigid and IMC conduits.
• Prevents damage to wire insulation during installation.

Product Highlights

This 3-1/2 inch plastic insulating bushing is rated for 105 Deg C and features a rounded surface to protect wire insulation, ensuring secure and safe conduit termination.

Product Information

Standard Information

• Brand: BRIDGEPORT FITTINGS
• Manufacturer Part Number: 329
• Country of Origin: United States

Technical Specifications

• ECCN: EAR99
• UNSPSC: 39121312
• Approval: UL 514B, CSA
• Material: Plain Plastic
• Temperature Rating: 105 Deg C
• Type: Threaded Female
• Used On: IMC/Rigid Conduit
• Trade Size: 3-1/2 in
• Finish: Plain
• Color: Gray
