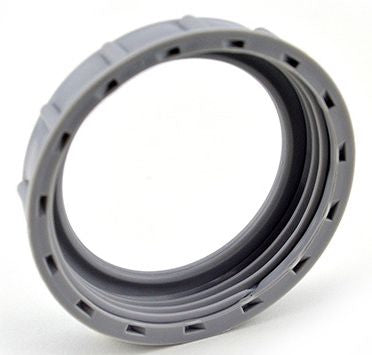

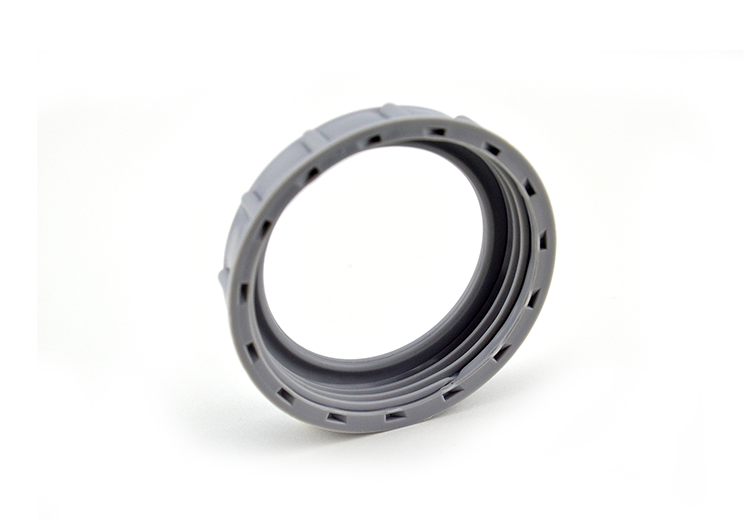

Bridgeport Fittings 325 Conduit Bushing Plastic Insulating 1-1/2 In.

Product Description

The BRIDGEPORT FITTINGS 325 plastic insulating bushing is designed for 1-1/2 inch rigid and IMC conduits. It is used with a locknut to terminate threaded conduits to a box, or with a connector to prevent damage to wire insulation. This durable polypropylene bushing is rated for temperatures up to 105 degrees C, ensuring reliable performance in various electrical applications.

• RoHS Compatible for environmental compliance.
• Rounded surface prevents damage to wire insulation during installation.
• Designed for use with rigid and IMC conduits, rated for 105 degrees C.

Product Highlights

Durable polypropylene insulating bushing for 1-1/2 inch rigid/IMC conduits, protecting wires and rated for 105°C.

Product Information

Standard Information

• Brand: BRIDGEPORT FITTINGS
• Manufacturer Part Number: 325
• Country of Origin: United States

Technical Specifications

• Certifications: UL 514B, CSA
• Diameter: 2.19 IN
• Material: Polypropylene
• Temperature Rating: 105°C
• Throat Type: Insulated
• Type: Threaded Female
• Application: IMC/Rigid Conduit
• Size: 1-1/2 in
• Finish: Plain
• Color: Gray
