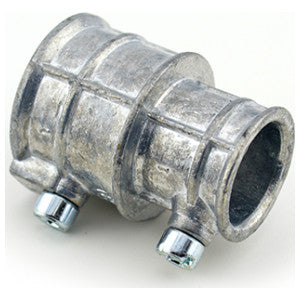

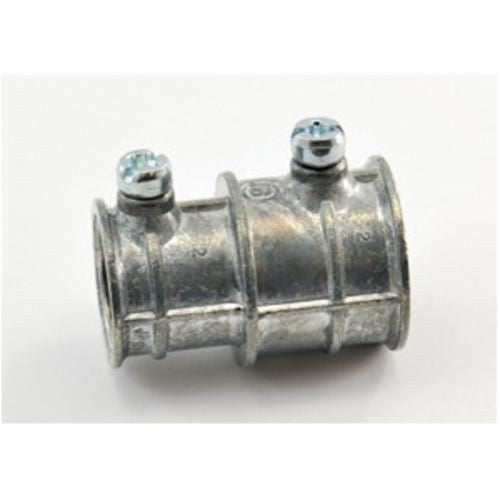

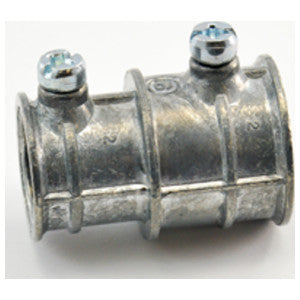

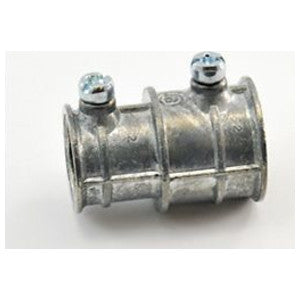

Bridgeport Fittings 290-DC Combination Coupling Set-Screw Zinc Die Cast EMT to Rigid/IMC Conduit 1/2 in.

Product Description

The BRIDGEPORT FITTINGS 290-DC is a combination coupling designed for electrical conduit applications. This set screw type fitting is used to securely join EMT to rigid or IMC conduit, ensuring a concrete-tight connection. Constructed from ball burnished mirror smooth die-cast zinc, it provides durability. It is furnished with Tri-Drive slot/Phillips/Robertson head screws for versatile installation.

• Set screw type fitting for secure connections.
• Designed to join EMT to rigid or IMC conduit.
• Features concrete-tight construction.

Product Highlights

Durable die-cast zinc combination coupling for EMT to rigid/IMC conduit, featuring set screw installation and concrete-tight design.

Product Information

Standard Information

• Brand: BRIDGEPORT FITTINGS
• Manufacturer Part Number: 290-DC
• Country of Origin: United States

Technical Specifications

• ECCN: EAR99
• Country of Origin: US - United States
• UNSPSC: 39131707
• Approval: UL 514B, ETL (Canada and US)
• Construction Feature: Concrete-Tight
• Installation: Set Screw EMT to Set Screw IMC/Rigid
• Material: Ball Burnished Mirror Smooth Die-Cast Zinc
• Length: 1-7/8 Inch
• Used On: IMC/Rigid Conduit
• Size: 1/2 Inch
• Type: Combination Coupling
• Connection Type: Set Screw
• Included Screws: Tri-Drive Slot, Phillips, Robertson Head Screw
• Compliance: RoHS/REACH Compliant
• Applicable Standard: NEMA FB-1, LEED
• Finish: Ball Burnished/Mirror Smooth
