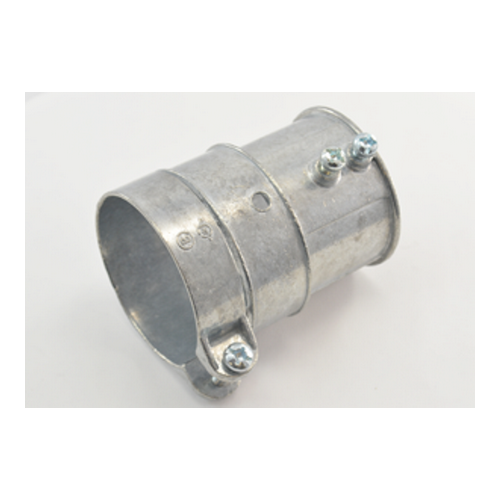

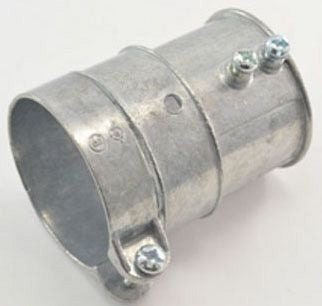

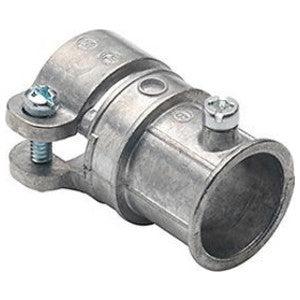

Bridgeport Fittings 286-DC Combination Conduit Fitting Zinc Die Cast 2 in

Product Description

The BRIDGEPORT FITTINGS 286-DC is a combination conduit fitting designed to join 2 inch EMT to 2 inch flexible metal conduit. This zinc die cast connector features a set-screw end for EMT and a squeeze-type end for flexible metal conduit, ensuring a secure electrical connection. It provides dimensional flexibility for raceway systems, facilitating transitions between EMT and FMC/Greenfield conduits, particularly useful when dropping into switchgear or transformers.

• Joins 2 inch EMT to 2 inch flexible metal conduit using a set-screw and squeeze-type mechanism.
• Constructed from zinc die cast for durability and corrosion resistance.
• Facilitates transitions between EMT and FMC/Greenfield conduits in raceway systems.

Product Highlights

This coupling simplifies raceway transitions, eliminating the need for multiple fittings or mounting boxes when connecting EMT to flexible metal conduit.

Product Information

Standard Information

• Brand: BRIDGEPORT FITTINGS
• Manufacturer Part Number: 286-DC
• Country of Origin: CN - China

Technical Specifications

• Approval: UL 514B, UL (Canada and US)
• Installation: EMT to Flexible Metal Conduit/Armored Cable/Metal Clad Cable
• Material: Ball Burnished Mirror Smooth Die-Cast Zinc
• Used On: EMT/Flexible Conduit
• Finish: Ball Burnished/Mirror Smooth
• Trade Size: 2 Inch
• Standards/Approvals: RoHS Compliant, cULus Listed
• Connector Type: Transition
• Type: Coupling
