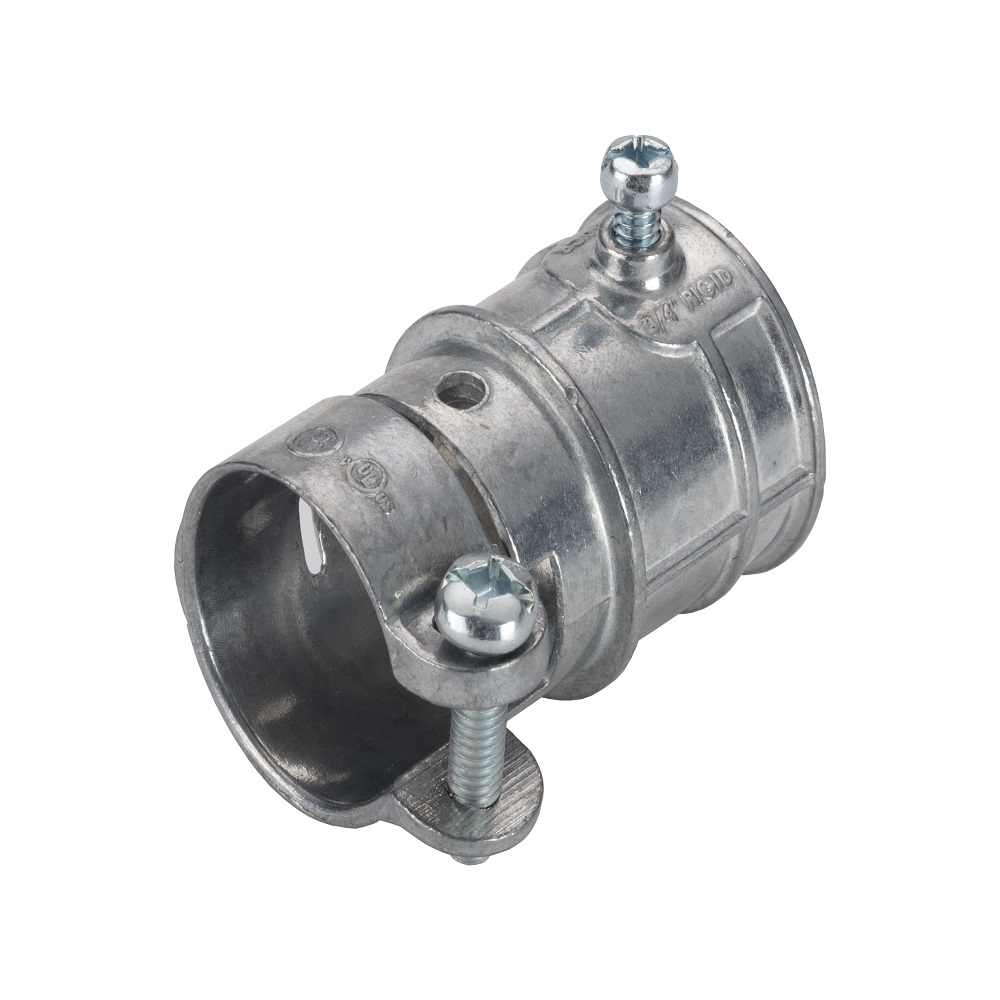

Bridgeport Fittings 282-DCR Mighty-Merge Threadless Rigid To FMC Transition Fitting 3/4 Inch

Product Description

The BRIDGEPORT FITTINGS 282-DCR Mighty-Merge® Transition Fitting is designed to join 3/4 inch threadless rigid conduit and 3/4 inch flexible metal conduit. This zinc die cast coupling ensures a secure electrical connection between different raceway types. It features a set screw end for rigid conduit and a squeeze type end for flexible metal conduit, providing dimensional flexibility for various electrical installations.

• Maintains a secure electrical connection between rigid and flexible metal conduit.
• Constructed from zinc die cast for corrosion resistance and long-term use.
• Equipped with a slotted head screw to secure the rigid conduit connection.

Product Highlights

Facilitates easy and listed transitions between threadless rigid and flexible metal conduit, suitable for connecting stub-ups from concrete to panels, motors, or generators.

Product Information

Standard Information

• Brand: BRIDGEPORT FITTINGS
• Manufacturer Part Number: 282-DCR
• Country of Origin: China

Technical Specifications

• Country of Origin: China
• Length: 2.216 Inch
• Outside Diameter: 1.28 Inch
• Trade Size: 3/4 Inch
• Finish: Ball Burnished, Mirror Smooth
• Material: Zinc Die Cast
• NEMA Rating: FB-1
• UL File Number: E9391
• UL Standard: UL-514B
• UNSPSC: 39131707
• EAN/UCC-13: 0781747292827
• GTIN: 30781747292828
• UPC: 781747292827
• Type: Transition
