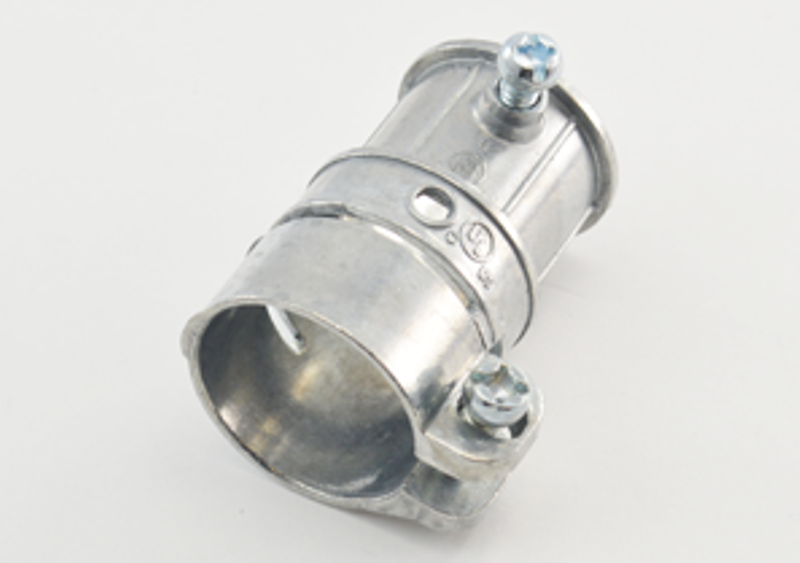

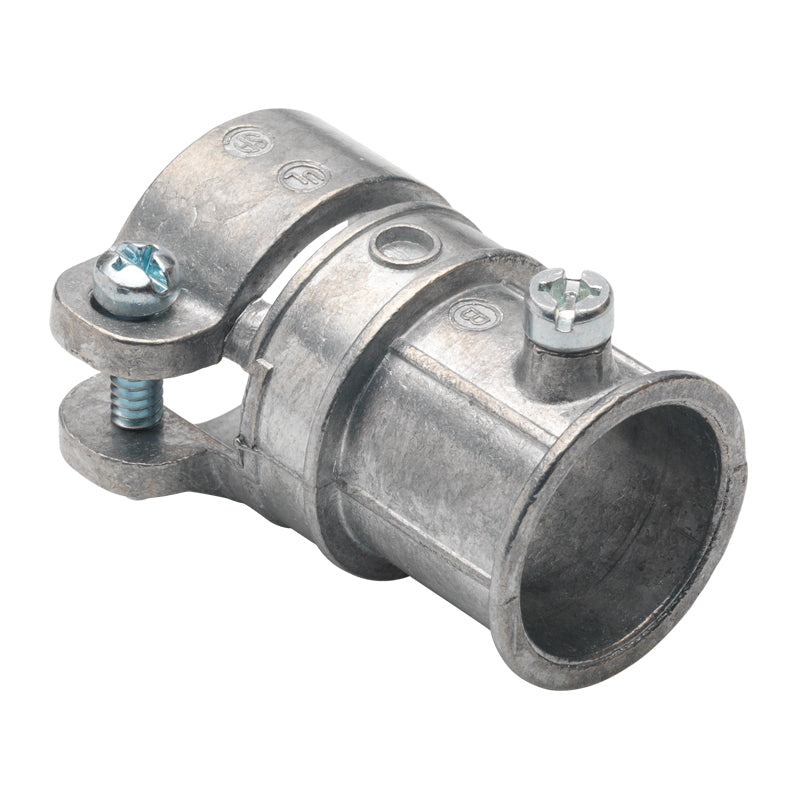

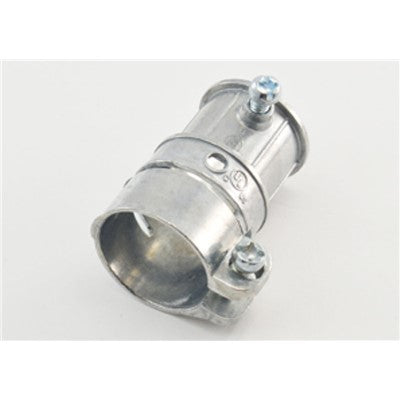

Bridgeport Fittings 282-DC Combination Conduit Fitting 3/4 in. EMT Set-Screw 3/4 in. Flex Clamp

Product Description

The BRIDGEPORT FITTINGS 282-DC is a combination conduit fitting, crafted from zinc die cast, designed to securely join 3/4 inch EMT to 3/4 inch flexible metal conduit. This connector features a set-screw mechanism for EMT and a clamp for flexible conduit, ensuring a reliable electrical connection. Its robust construction makes it suitable for diverse electrical installations requiring transitions between different conduit types, providing durability and consistent performance.

• Joins 3/4 inch EMT to 3/4 inch flexible metal conduit.
• Constructed from zinc die cast for durability and corrosion resistance.
• Features a set-screw connection for EMT and a clamp for flexible metal conduit.

Product Highlights

Securely connects 3/4 inch EMT to 3/4 inch flexible metal conduit with a durable zinc die cast construction.

Product Information

Standard Information

• Brand: BRIDGEPORT FITTINGS
• Manufacturer Part Number: 282-DC
• Country of Origin: China

Technical Specifications

• Approval: UL 514B, UL (Canada and US)
• Installation: Set Screw EMT to Squeeze Flexible Metal Conduit
• Material: Ball Burnished Mirror Smooth Die-Cast Zinc
• Application: EMT/Flexible Metal Conduit
• Type: Conduit Combination Coupling
• Screw Type: 2-Way Phillips/Slotted Head Screw
• Trade Size: 3/4 in
• Finish: Ball Burnished/Mirror Smooth
• Flex Conduit Size: 3/4"
• EMT Size: 3/4"
• Connection Type: Set Screw
