Product Description

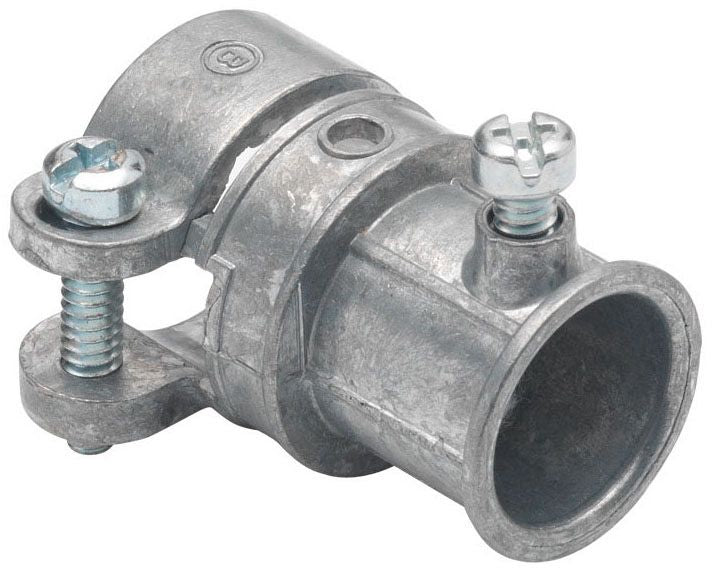

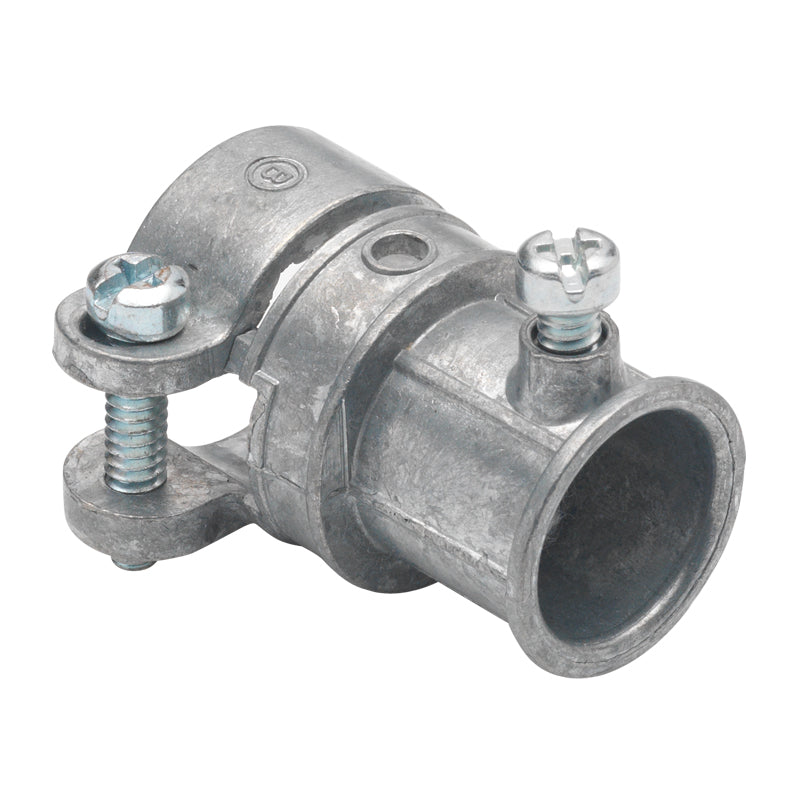

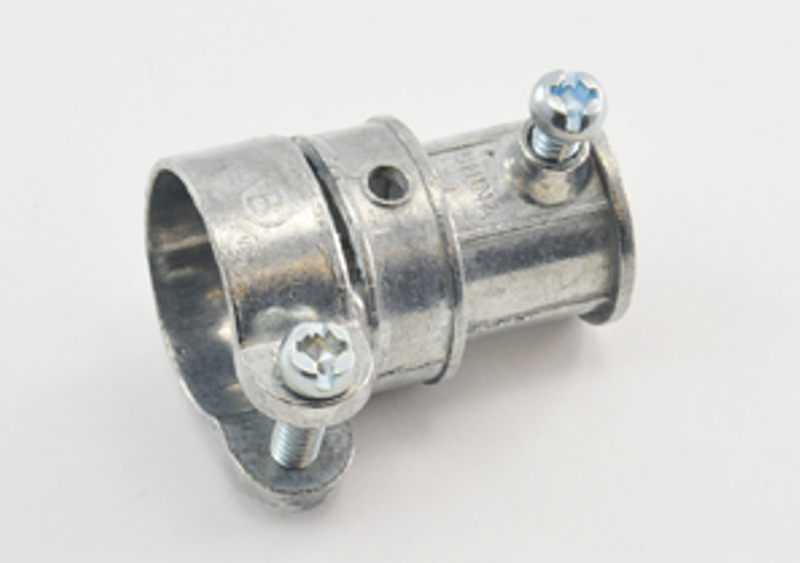

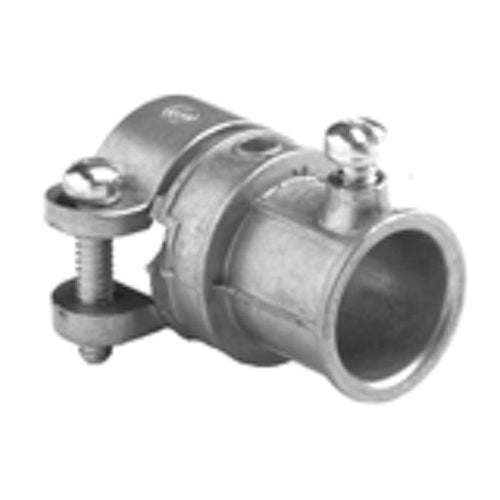

The BRIDGEPORT FITTINGS 281-DC is a combination conduit fitting designed to join 1/2 inch EMT to 1/2 inch flexible metal conduit. This zinc die cast connector features a set-screw mechanism for EMT and a squeeze type for flexible metal conduit, ensuring a secure electrical connection. It is suitable for various electrical installations requiring transitions between different conduit types.
- Joins 1/2 inch EMT to 1/2 inch flexible metal conduit.
- Constructed from zinc die cast material.
- Features set-screw for EMT and squeeze type for flexible metal conduit.
Product Highlights
Durable zinc die cast combination coupling for secure EMT to flexible metal conduit connections.
Product Information
Standard Information
-
Brand: BRIDGEPORT FITTINGS
-
Manufacturer Part Number: 281-DC
-
Country of Origin: China
Technical Specifications
-
ECCN: EAR99
-
UNSPSC: 39131707
-
Approval: UL 514B, UL (Canada and US), CULUS File No. E9391
-
Installation: Set Screw EMT to Squeeze Flexible Metal Conduit
-
Material: Ball Burnished Mirror Smooth Die-Cast Zinc
-
UPC: 781747092816
-
Application: EMT/Flexible Metal Conduit
-
Type: Conduit Combination Coupling
-
Screw Type: 2-Way Phillips/Slotted Head Screw
-
Size: 1/2 in
-
Finish: Ball Burnished/Mirror Smooth
-
Connection Type: Set Screw
-
Country of Origin: United States
