Bridgeport Fittings 264-DC 1-1/2 inch EMT Compression Coupling 10-Pack

Product Description

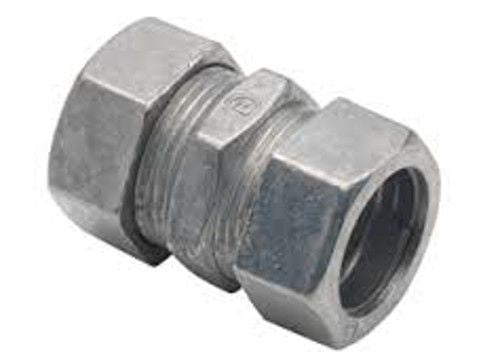

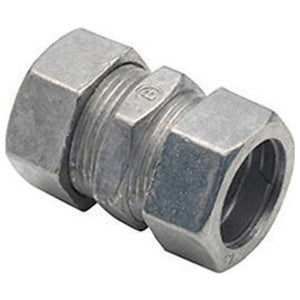

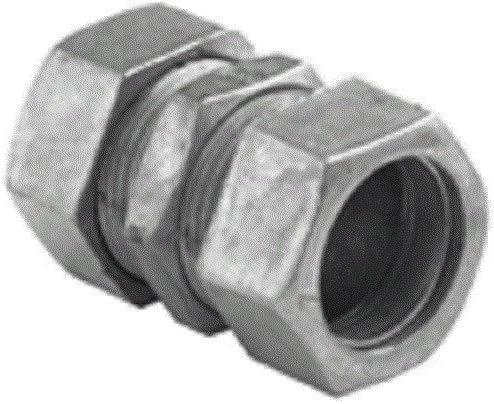

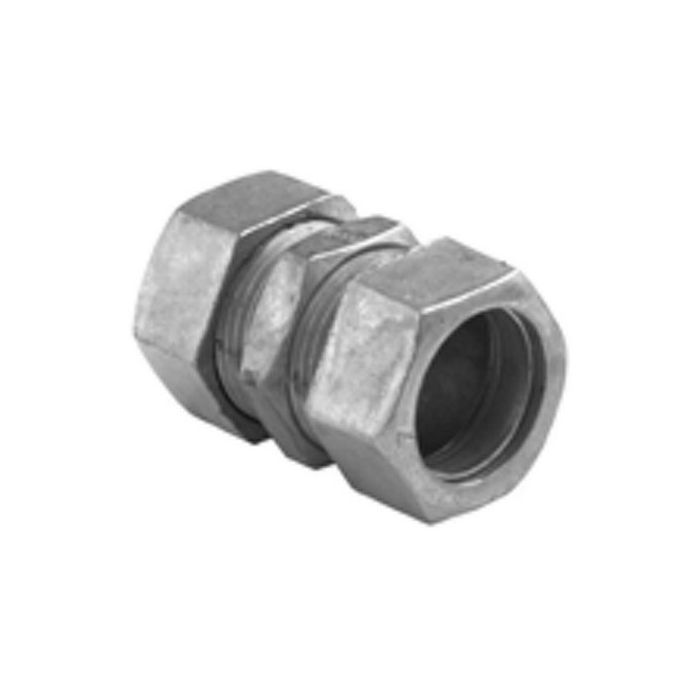

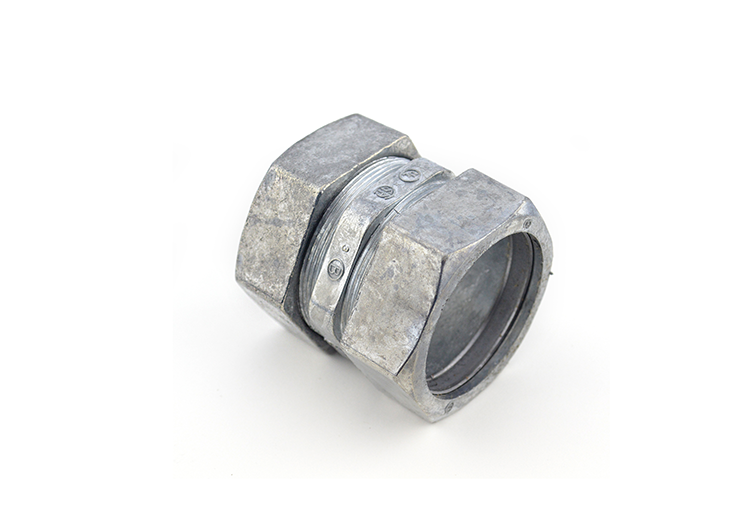

The BRIDGEPORT FITTINGS 264-DC is a 1-1/2 inch EMT compression coupling designed to join two lengths of EMT conduit. Constructed from ball burnished mirror smooth die-cast zinc, this coupling provides a secure, concrete-tight connection. It is suitable for use with both steel and aluminum EMT conduit, ensuring reliable performance in various electrical installations.

• ROHS Compliant for environmental safety standards.
• Provides a concrete-tight connection for secure installations.
• Features a die-cast zinc body for enhanced corrosion resistance.

Product Highlights

This 1-1/2 inch EMT compression coupling features a ball burnished die-cast zinc body, suitable for steel and aluminum EMT conduit, providing a concrete-tight connection.

Product Information

Standard Information

• Brand: BRIDGEPORT FITTINGS
• Manufacturer Part Number: 264-DC
• Country of Origin: United States

Technical Specifications

• Throat Type: Non-Insulated
• Certifications: UL 514B, CSA, File No. E24001, LR39354, NEMA FB-1, RoHS Complaint
• Constructional Feature: Concrete-Tight
• Outer Diameter: 2.44 IN
• Material: Ball Burnished Mirror Smooth Die-Cast Zinc
• Coupling Type: EMT Compression Coupling
• Suitable For Use With: Steel and Aluminum EMT Conduit
• Nominal Size: 1-1/2 Inch
• Finish: Ball Burnished/Mirror Smooth
• Width Across Flat: 2-13/16 Inch
