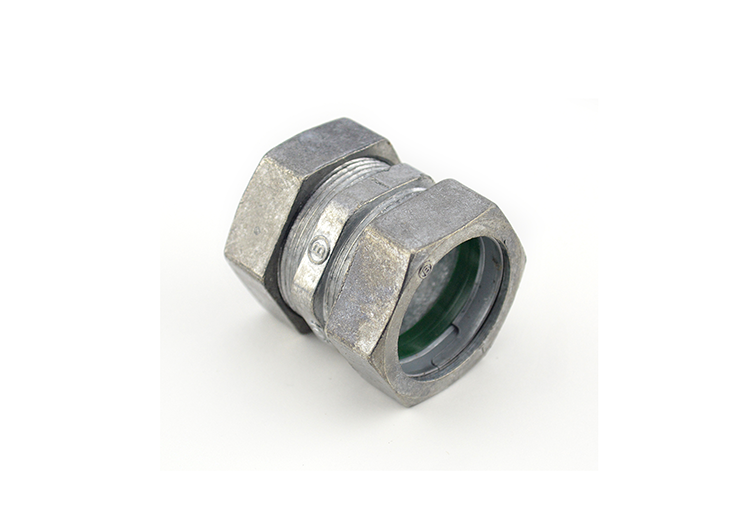

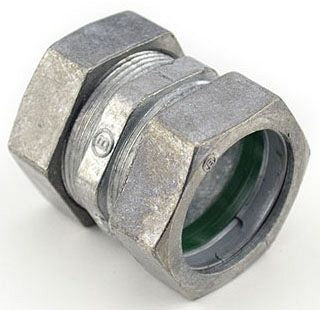

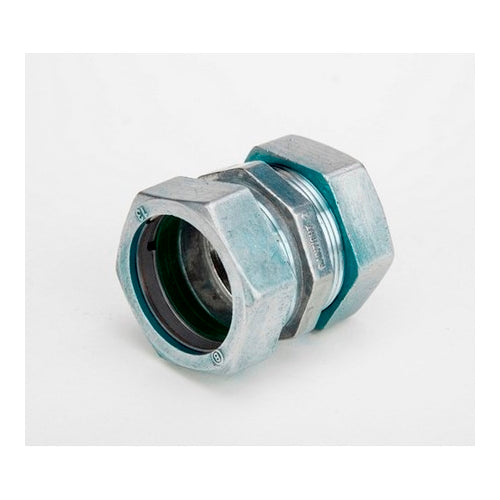

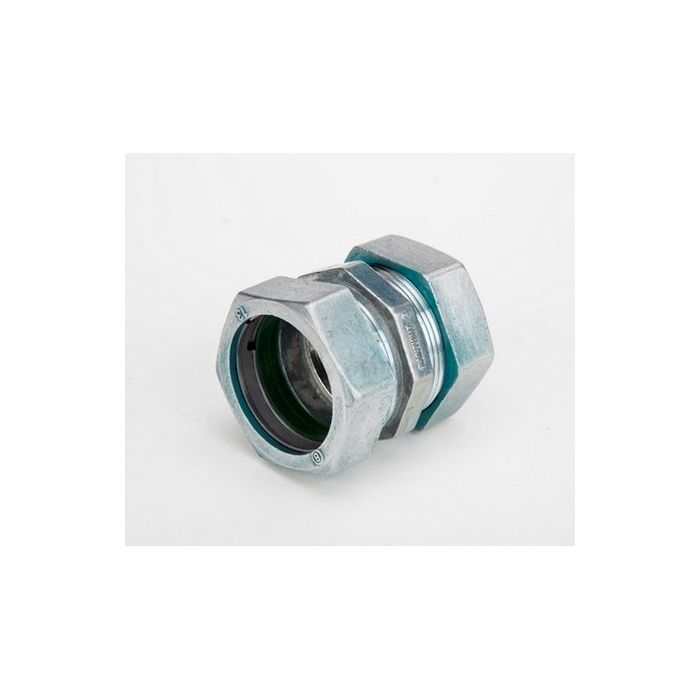

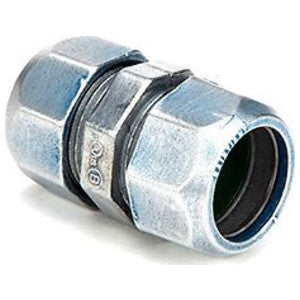

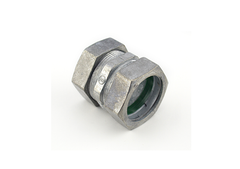

Bridgeport Fittings 262-RT Raintight Compression Coupling 1 in.

Product Description

The BRIDGEPORT FITTINGS 262-RT is a raintight compression coupling designed for 1 inch EMT conduit. Constructed from zinc die cast, this coupling ensures a secure connection between two lengths of EMT. It is suitable for use in wet locations, providing a reliable seal. This compression-type coupling is engineered for durability and performance in electrical installations.

• Compression coupling for 1 inch EMT conduit.
• Constructed from zinc die cast for durability.
• Raintight design ensures a secure seal in wet locations.

Product Highlights

Features internal sealing rings for a raintight and concrete tight connection.

Product Information

Standard Information

• Brand: BRIDGEPORT FITTINGS
• Manufacturer Part Number: 262-RT
• Country of Origin: USA

Technical Specifications

• Throat Type: Non-Insulated
• Constructional Feature: Raintight
• Diameter REF: 1.69 IN
• Material: Ball Burnished Mirror Smooth Die-Cast Zinc
• Type: Compression
• Application: Used to join 2 lengths of EMT
• Finish: Ball Burnished/Mirror Smooth
• Size: 1 in
• Standards/Approvals: RoHS Compliant|UL 514B File No. E24001|NEMA FB-1
• Suitable For Use With: EMT Conduit
