Bridgeport Fittings 255-DC2 2 inch Ball Burnished Zinc Die Cast EMT Compression Connector Pack of 10 15255

Product Description

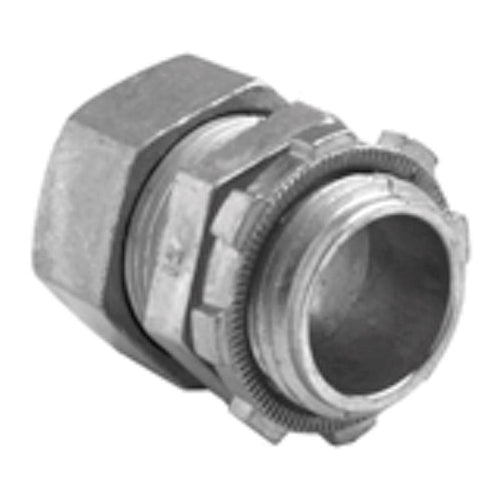

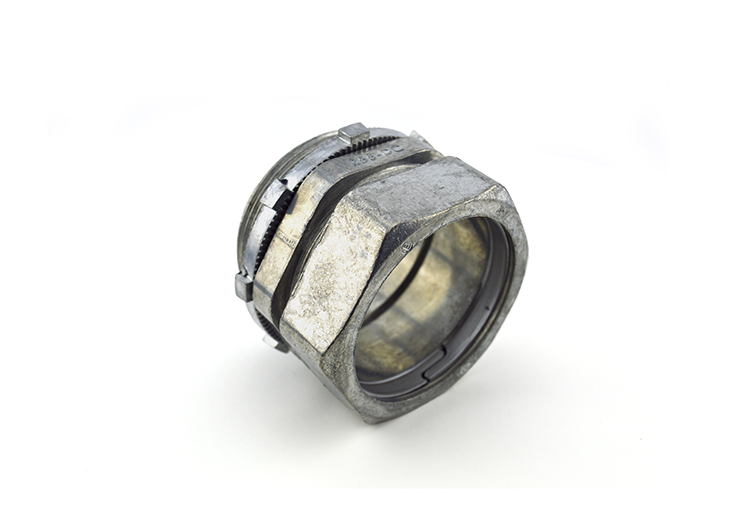

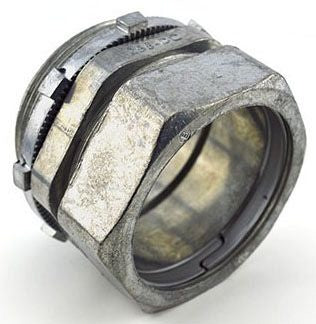

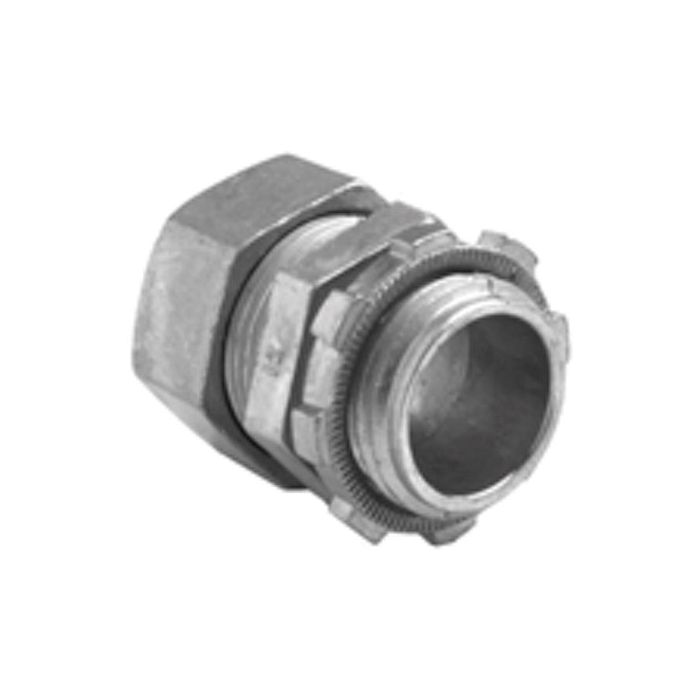

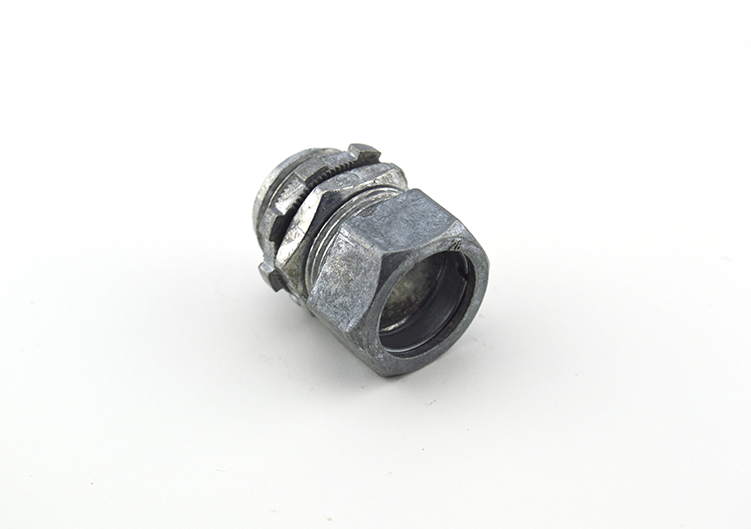

The Bridgeport Fittings 255-DC2 is a 2 inch ball burnished zinc die cast EMT compression connector. This non-insulated connector is designed to securely join electrical metallic tubing (EMT) to an electrical box or enclosure. It features a precise fit and finish, ensuring reliable connections. The connector is UL Listed concrete-tight and CSA Listed concrete-tight/raintight, making it suitable for various demanding environments. It is constructed from durable die-cast zinc.

• Provides quick and reliable connections for EMT to electrical boxes or enclosures.
• Constructed from ball burnished die-cast zinc for corrosion resistance and durability.
• UL Listed concrete-tight and CSA Listed concrete-tight/raintight for secure installations.

Product Highlights

Provides quick, concrete-tight, and raintight connections for 2 inch EMT conduit to enclosures.

Product Information

Standard Information

• Brand: BRIDGEPORT FITTINGS
• Manufacturer Part Number: 255-DC2
• Country of Origin: United States

Technical Specifications

• Throat Type: Non-Insulated
• Approval: UL 514B, CSA
• Constructional Feature: Concrete-Tight, Raintight
• Diameter: 2.94 IN
• Manufacturer: Bridgeport Fittings
• Material: Ball Burnished Mirror Smooth Die-Cast Zinc
• Thread Length: 0.74 Inch
• Type: Compression Connector
• Suitable For Use With: 1/2 to 2 in Steel/Aluminum EMT Conduit
• MPN: 255-DC2
• Brand: BRIDGEPORT FITTINGS
• Size: 2 In
• Finish: Ball Burnished Mirror Smooth
• Dimensions: 2.12 in L
• Application: Used to join steel EMT to box or enclosure. Concrete-tight. 1/2" thru 2" suitable for use with Steel or Aluminum EMT.
• Insulation: None
• Standards: ARRA Compliant, Buy American Act Compliant, RoHS Compliant, CSA LR39354, UL File No. E24001/514B, NEMA FB-1, Federal Specification A-A-50553
