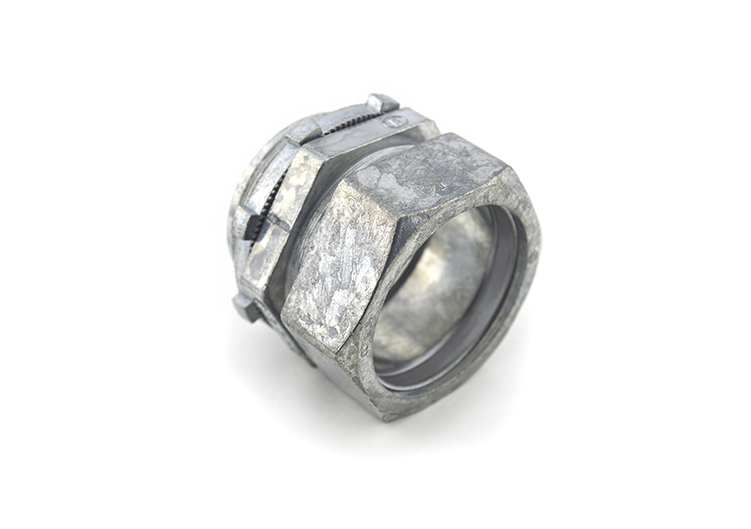

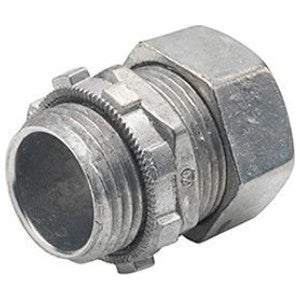

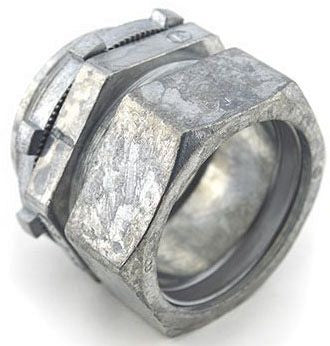

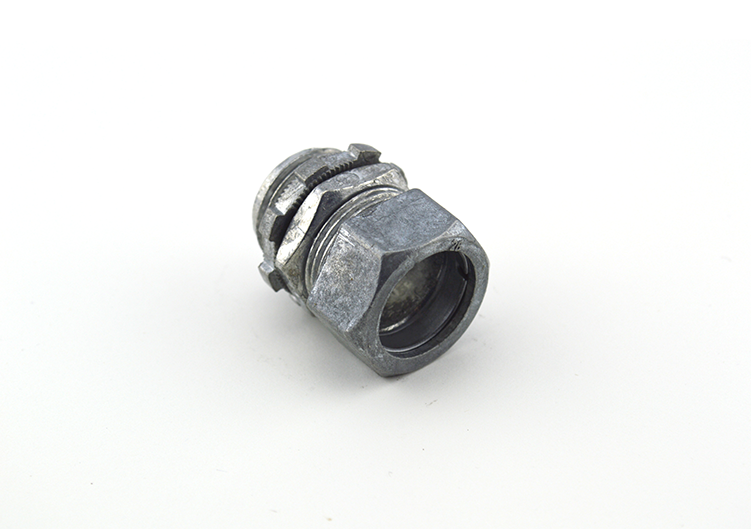

Bridgeport Fittings 254-DC2 Ball Burnished Zinc Die Cast EMT Compression Connector 1-1/2 Inch

Product Description

The Bridgeport Fittings 254-DC2 is a 1-1/2 inch compression connector designed for EMT conduit. Constructed from zinc die cast, this non-insulated connector provides a secure connection for electrical metallic tubing to an electrical box or enclosure. It is suitable for use in concrete-tight and raintight applications, ensuring reliable performance in various environments. This connector is ideal for joining steel or aluminum EMT conduit.

• Offers quick and reliable connections for EMT to box knockouts.
• Constructed from die cast zinc for corrosion resistance and ease of assembly.
• UL Listed concrete-tight and CSA Listed concrete-tight/raintight for secure seals.

Product Highlights

Designed for 1-1/2 inch EMT conduit, this zinc die cast compression connector ensures secure, concrete-tight, and raintight connections.

Product Information

Standard Information

• Brand: BRIDGEPORT FITTINGS
• Manufacturer Part Number: 254-DC2
• Country of Origin: United States

Technical Specifications

• ECCN: EAR99
• Country of Origin: United States
• Throat Type: Non-Insulated
• Approval: UL 514B, CSA, UL E24001, RoHS Compliant
• Constructional Feature: Concrete-Tight, Raintight
• Diameter: 2.44 IN
• Thread Length: 0.69 Inch
• Connector Type: EMT Compression Connector
• Material: Die Cast Zinc
• Size: 1-1/2 in
• Finish: Ball Burnished/Mirror Smooth
• Application: Used to join steel EMT to box or enclosure and for use in wet locations
