Bridgeport Fittings 253-I Compression Connector Steel Insulated EMT Conduit 1-1/4 in.

Product Description

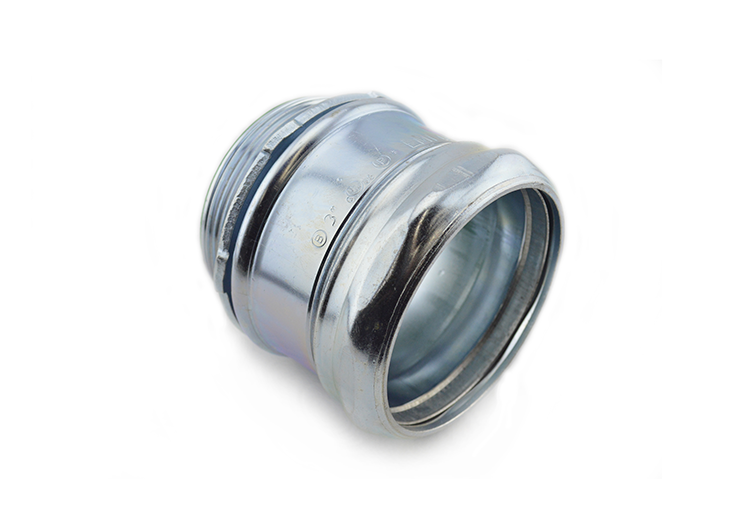

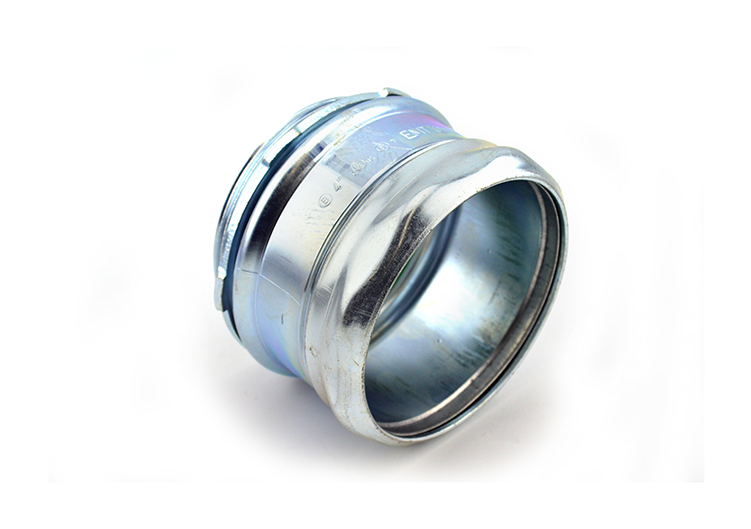

The BRIDGEPORT FITTINGS 253-I is a screw-on EMT compression connector designed to join electrical metallic tubing to an electrical box or enclosure, providing a concrete-tight seal. This steel connector features an insulated throat that protects inner wiring from abrasion and is rated for temperatures up to 105°C. It ensures secure and reliable connections for electrical installations.

• Provides quick and reliable connections for EMT to electrical boxes or enclosures.
• Features an insulated throat for superior protection against cable abrasion, rated up to 105°C.
• Constructed from zinc-plated steel for durability and corrosion resistance, ensuring a concrete-tight seal.

Product Highlights

Steel compression connector with insulated throat for EMT, ensuring concrete-tight and abrasion-protected connections up to 105°C.

Product Information

Standard Information

• Brand: BRIDGEPORT FITTINGS
• Manufacturer Part Number: 253-I
• Country of Origin: India

Technical Specifications

• ECCN: EAR99
• UNSPSC: 39121434
• Throat Type: Insulated
• Type: Compression Connector
• Material: Steel
• Size: 1-1/4 Inch
• Finish: Zinc Plated
• UL Standard: UL-514B
• EAN/UCC-13: 0781747102539
• GTIN: 30781747102523
• Prop 65 Flag: No
• UPC: 781747102539
• Split Crucible: S
• Operating Temperature: 105 C
