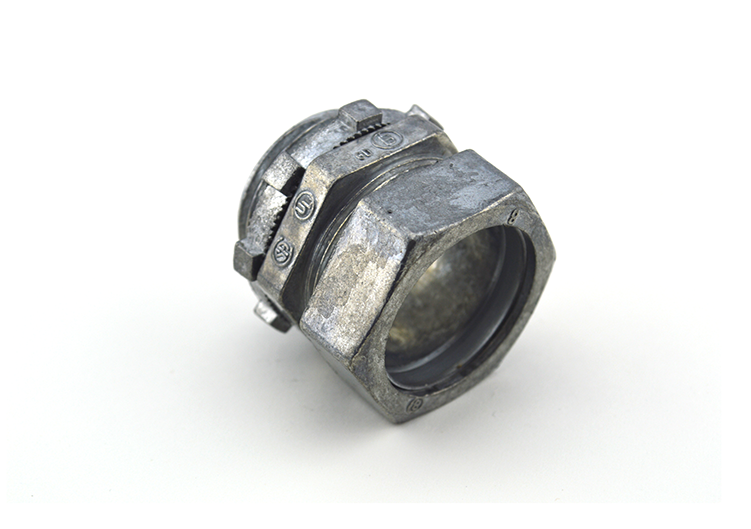

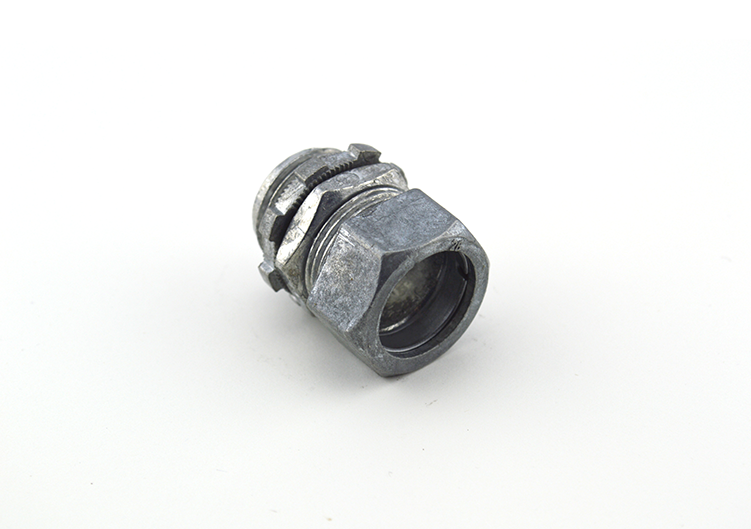

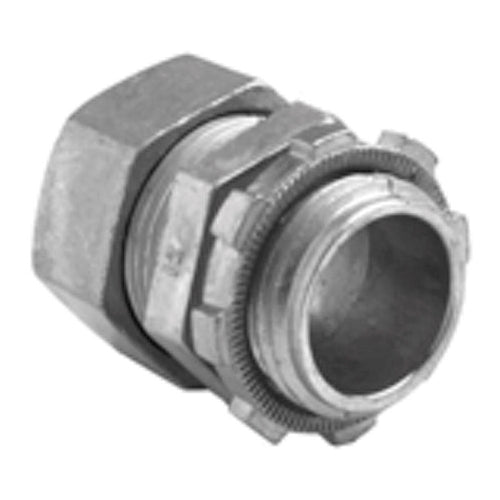

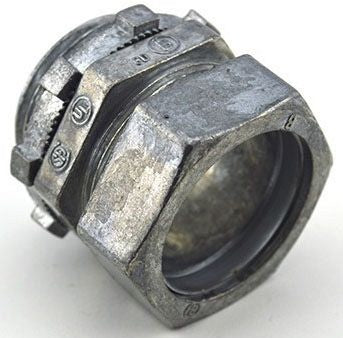

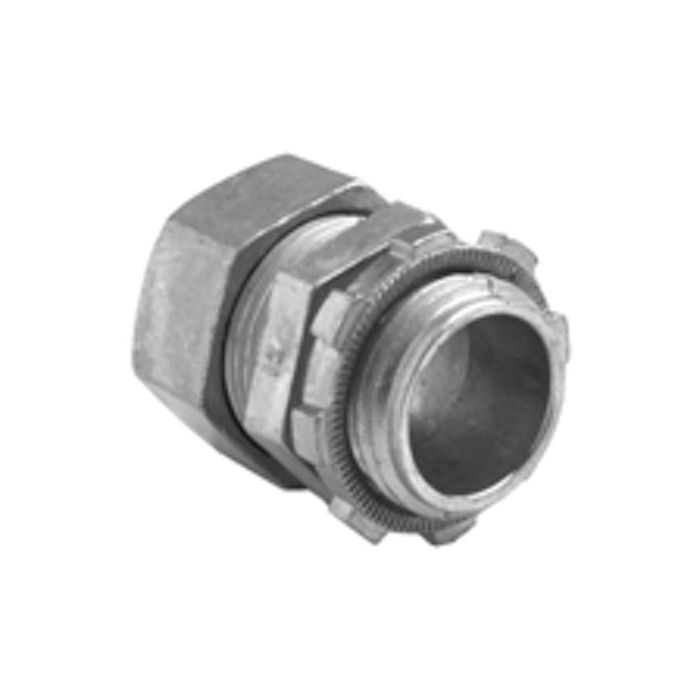

Bridgeport Fittings 252-DC2 1 inch Ball Burnished Zinc Die Cast EMT Compression Connector

Product Description

The BRIDGEPORT FITTINGS 252-DC2 is a 1 inch zinc die cast compression connector designed for EMT conduit. This non-insulated connector is used to join electrical metallic tubing to an electrical box or enclosure. It is suitable for use with 1/2 to 4 inch steel or aluminum EMT, providing a concrete-tight and raintight connection.

• Designed for 1 inch EMT conduit connections.
• Constructed from ball burnished mirror smooth die-cast zinc for durability and corrosion resistance.
• Provides concrete-tight and raintight connections, meeting UL 514B and CSA standards.

Product Highlights

This non-insulated compression connector facilitates secure and reliable connections for EMT conduit in various applications.

Product Information

Standard Information

• Brand: BRIDGEPORT FITTINGS
• Manufacturer Part Number: 252-DC2
• Country of Origin: United States

Technical Specifications

• Throat Type: Non-Insulated
• Certifications/Approvals: UL 514B, CSA, RoHS Compliant, CSA LR39354, UL File No. E24001/514B, NEMA FB-1, Federal Specification A-A-50553
• Construction Features: Concrete-Tight, Raintight
• Diameter: 1.69 IN
• Material: Ball Burnished Mirror Smooth Die-Cast Zinc
• Thread Length: 0.56 Inch
• Connector Type: Non-Insulated Compression Connector
• Application: Used to join steel EMT to box or enclosure and for use in wet locations; suitable for use with 1/2 to 4 in Steel/Aluminum EMT Conduit
• Trade Size: 1 in
• Finish: Ball Burnished/Mirror Smooth
• Dimensions: 1-1/2 in L
