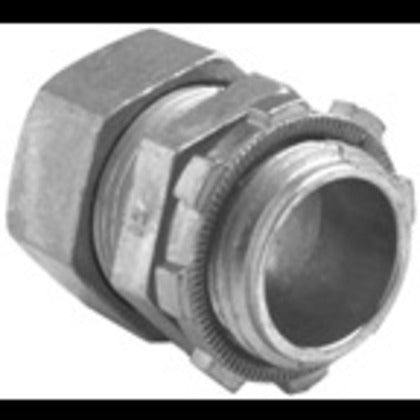

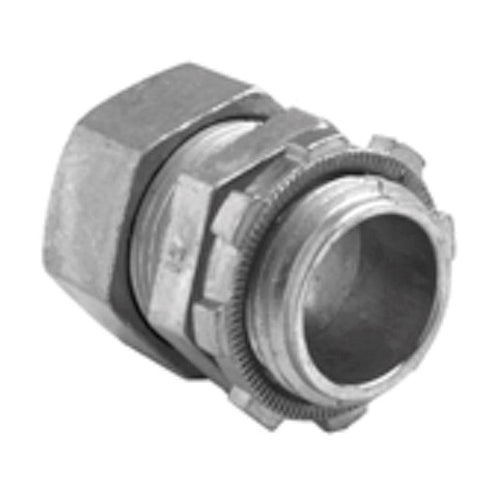

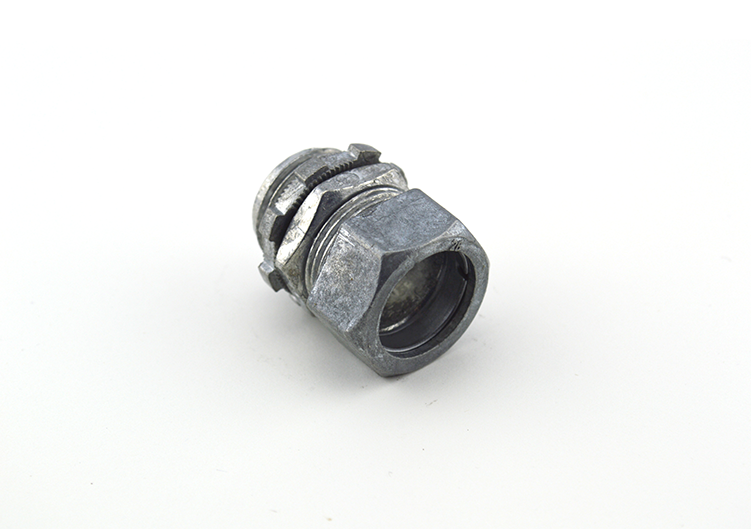

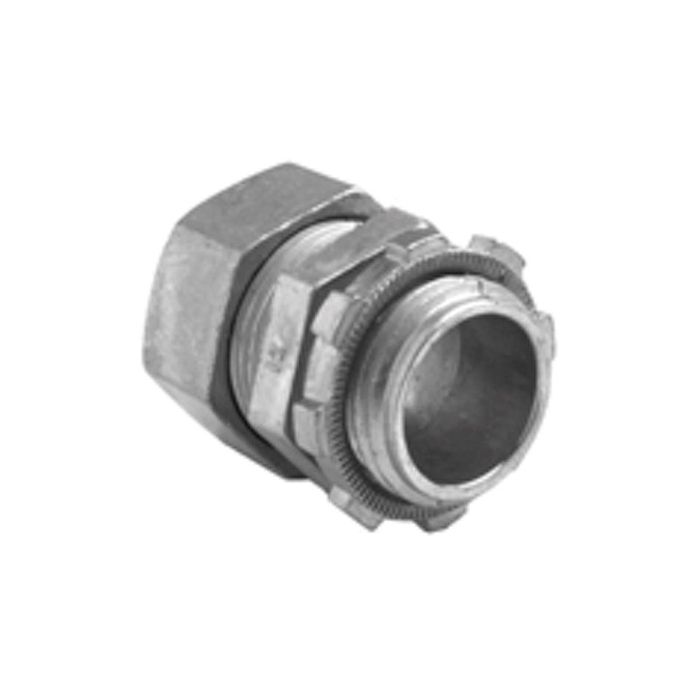

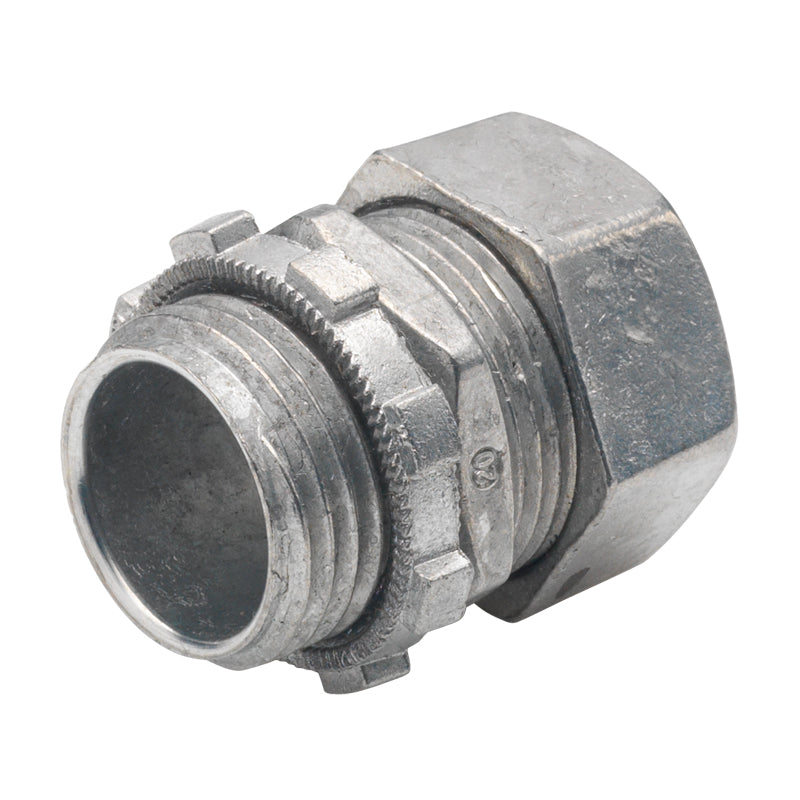

Bridgeport Fittings 250-DC2 1/2 Inch Ball Burnished Zinc Die Cast EMT Compression Connector

Product Description

The BRIDGEPORT FITTINGS 250-DC2 is a 1/2 inch compression connector designed for EMT conduit. This zinc die cast connector provides a secure connection for electrical metallic tubing to an electrical box or enclosure. It is non-insulated and features a ball burnished, mirror smooth finish, ensuring reliable performance and corrosion resistance. This connector is suitable for use with 1/2 to 2 inch steel or aluminum EMT conduit, offering concrete-tight and raintight connections.

• Designed for 1/2 inch EMT conduit.
• Constructed from ball burnished die-cast zinc for durability and corrosion resistance.
• UL Listed concrete-tight and CSA Listed concrete-tight/raintight for secure installations.

Product Highlights

Durable die-cast zinc compression connector for 1/2 inch EMT, offering concrete-tight and raintight connections.

Product Information

Standard Information

• Brand: BRIDGEPORT FITTINGS
• Manufacturer Part Number: 250-DC2
• Country of Origin: United States

Technical Specifications

• ECCN: EAR99
• UNSPSC: 39121434
• Throat Type: Non-Insulated
• Country of Origin: US - United States
• Standards/Approvals: RoHS Compliant|CSA LR39354|UL File No. E24001/514B|NEMA FB-1|Federal Specification A-A-50553
• Constructional Feature: Concrete-Tight, Raintight
• Diameter: 1.08 IN
• Material: Ball Burnished Mirror Smooth Die-Cast Zinc
• Product UPC: 781747152503
• Thread Length: 0.37 Inch
• Type: Non-Insulated Compression Connector
• Trade Size: 1/2 in
• Conduit Compatibility: 1/2 to 2 in Steel/Aluminum EMT Conduit
• Finish: Ball Burnished/Mirror Smooth
• Application: Used to join steel EMT to box or enclosure
• GTIN: 30781747152504
• Prop 65 Flag: No
