Bridgeport Fittings 246-DC Ball Burnished Zinc Die Cast EMT Set-Screw Coupling 2-1/2 Inch

Product Description

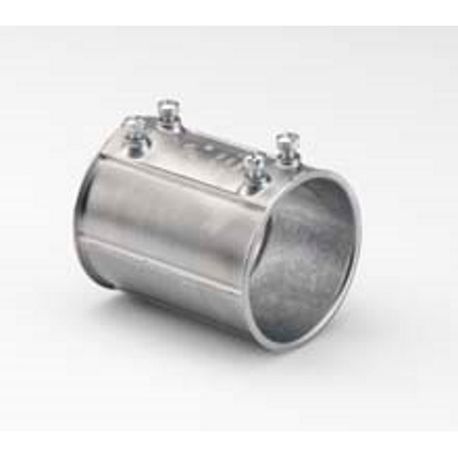

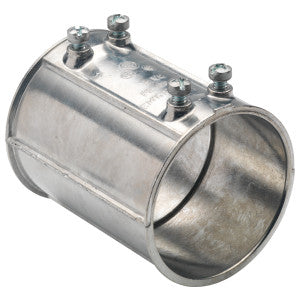

The BRIDGEPORT FITTINGS 246-DC is a 2-1/2 inch zinc die cast set-screw coupling designed for joining two lengths of EMT conduit. This ball burnished, mirror smooth coupling ensures a secure connection for electrical installations. It is suitable for various applications, including those requiring concrete-tight connections for specific sizes.

• Zinc die cast construction with a ball burnished, mirror smooth finish.
• Designed for 2-1/2 inch EMT conduit, providing a secure set-screw connection.
• UL 514B, UL (Canada and US), CSA approved and RoHS Compliant, ensuring safety and environmental standards.

Product Highlights

This EMT coupling offers a durable, concrete-tight solution for electrical conduit installations.

Product Information

Standard Information

• Brand: BRIDGEPORT FITTINGS
• Manufacturer Part Number: 246-DC
• Country of Origin: USA

Technical Specifications

• ECCN: EAR99
• UNSPSC: 39131707
• Constructional Feature: Concrete-Tight
• Diameter: 3.26 IN
• Material: Ball Burnished Mirror Smooth Die-Cast Zinc
• Type: Set Screw
• Used On: EMT Conduit
• Size: 2-1/2 in
• Finish: Ball Burnished/Mirror Smooth
• Country of Origin: US - United States
• UPC: 78174709246
• Standard: CSA LR39354, UL E24001, NEMA FB-1, Federal Standard A-A-50553
• Application: Used to join two lengths of EMT. 1/2" through 1 1/4" Concrete-tight, 1 1/2" thru 4" concrete-tight when taped. 2" thru 4" suitable for use with aluminum or steel EMT.
• Connection Type: Set-Screw
• Certifications: UL 514B, UL E24001, CSA LR39354, NEMA FB-1, Federal Standard A-A-50553, RoHS Compliant
