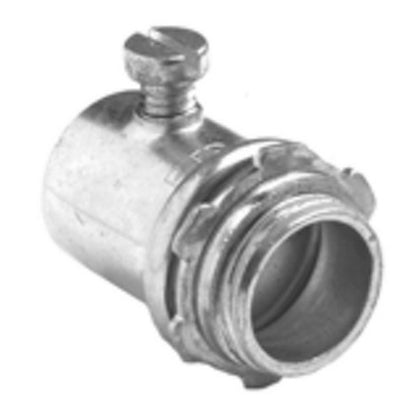

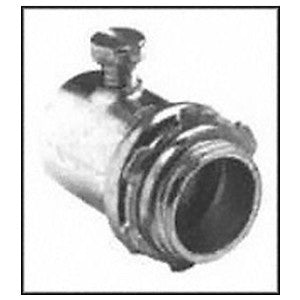

Bridgeport Fittings 234-I Set-Screw Connector 1-1/2 in.

Product Description

The BRIDGEPORT FITTINGS 234-I Set-Screw Connector is a steel connector designed for 1-1/2 inch electrical metallic tubing (EMT). It connects EMT to an electrical box or enclosure, providing a concrete-tight seal. An insulated throat protects inner wiring, rated for temperatures up to 105°C, preventing cable abrasion.

• Insulated throat offers superior protection against cable abrasion and is rated up to 105°C.
• Strong steel body with zinc plating provides durability and corrosion resistance.
• Set-screw design with a locknut ensures a concrete-tight seal at the connection point.

Product Highlights

Durable steel set-screw connector with insulated throat for secure, protected EMT connections.

Product Information

Standard Information

• Brand: BRIDGEPORT FITTINGS
• Manufacturer Part Number: 234-I
• Country of Origin: India

Technical Specifications

• ECCN: EAR99
• UNSPSC: 39121434
• Size: 1-1/2 in.
• Throat Type: Insulated
• Temperature Rating: 105°C
• Material: Steel
• Connector Type: Set Screw
• Finish: Zinc Plated
• UL Standard: UL-514B
