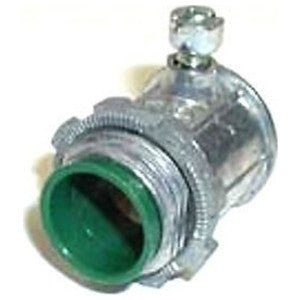

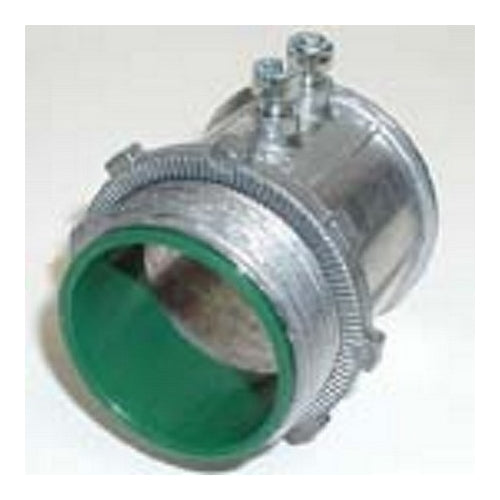

Bridgeport Fittings 233-DCI2 Ball Burnished Zinc Die Cast EMT Set-Screw Connector with Insulated Throat 1-1/4 Inch

Product Description

The BRIDGEPORT FITTINGS 233-DCI2 is a zinc die cast set-screw connector designed for joining 1-1/4 inch EMT conduit to an electrical box or enclosure. This connector features an insulated throat, rated for temperatures up to 105°C, ensuring secure and protected electrical connections. Its robust construction and concrete-tight design make it suitable for various electrical installations.

• Furnished with tri-drive slotted Phillips/Robertson head screws for versatile installation.
• Features an insulated throat with a 105°C temperature rating for enhanced safety.
• Designed for securely joining 1-1/4 inch EMT conduit to electrical boxes or enclosures.

Product Highlights

Durable zinc die cast construction with a ball burnished finish and concrete-tight insulated throat for reliable EMT conduit connections.

Product Information

Standard Information

• Brand: BRIDGEPORT FITTINGS
• Manufacturer Part Number: 233-DCI2
• Country of Origin: United States

Technical Specifications

• ECCN: EAR99
• Country of Origin: United States
• UNSPSC: 39121434
• Trade Size: 1-1/4 inch
• Temperature Rating: 105°C
• Application: For joining EMT to box or enclosure
• Finish: Ball Burnished/Mirror Smooth
• Material: Die Cast Zinc
• Mounting Type: Threaded
• Standards/Approvals: CSA File No. LR39354, Federal Specification A-A-50553, NEMA FB-1, RoHS Compliant, UL 514B File No. E24001
• Suitable For Use With: EMT Conduit
• Connector Type: Concrete-Tight Insulated Throat
• Color Family: Metallic
