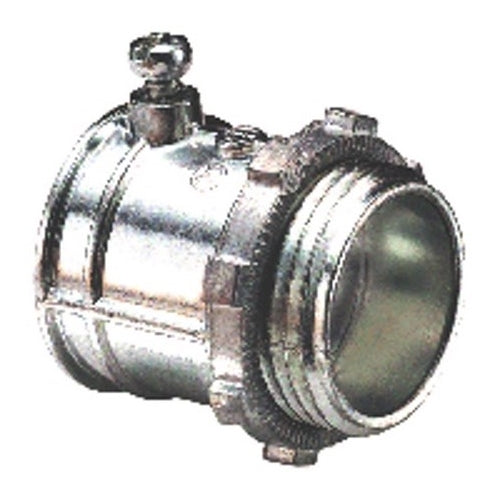

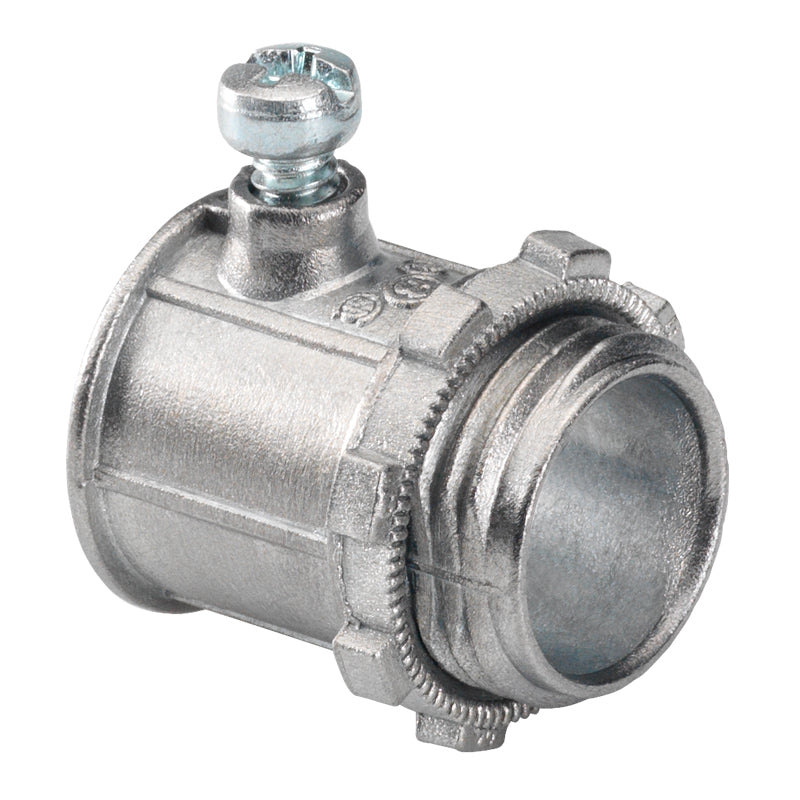

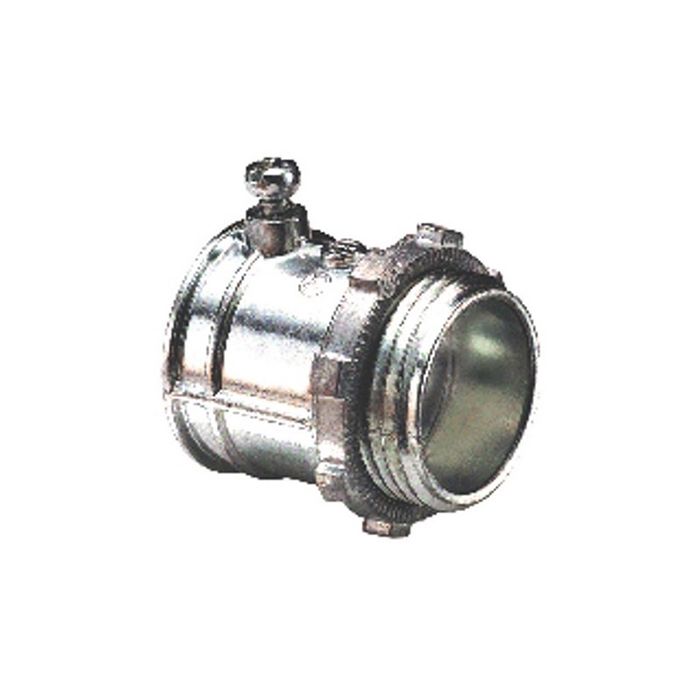

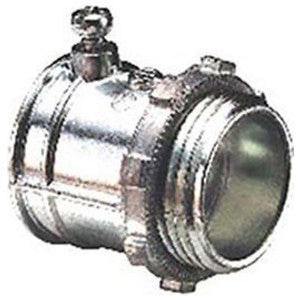

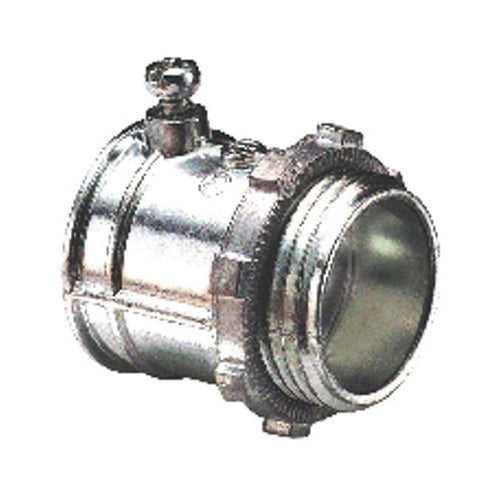

Bridgeport Fittings 231-DC2 3/4 inch Ball Burnished Zinc Die Cast EMT Set-Screw Connector

Product Description

The BRIDGEPORT FITTINGS 231-DC2 is a 3/4 inch zinc die cast set-screw connector designed for use with EMT conduit. This non-insulated connector secures electrical metallic tubing to an electrical box or enclosure, providing a concrete-tight seal. It features a ball burnished mirror smooth finish and is suitable for various electrical installations.

• Non-Insulated set screw connector for 3/4 inch EMT conduit.
• Constructed from die cast zinc with a ball burnished mirror smooth finish.
• Provides a concrete-tight seal and is furnished with tri-drive slot/Phillips/Robertson head screws.

Product Highlights

This connector is designed for securing EMT conduit to electrical boxes or enclosures, ensuring a concrete-tight connection.

Product Information

Standard Information

• Brand: BRIDGEPORT FITTINGS
• Manufacturer Part Number: 231-DC2
• Country of Origin: USA

Technical Specifications

• ECCN: EAR99
• UNSPSC: 39121434
• Trade Size: 3/4 inch
• Throat Type: Non-Insulated
• Certifications: UL 514B, CSA
• Construction Feature: Concrete-Tight
• Diameter: 1.19 IN
• Manufacturer: Bridgeport Fittings
• Material: Ball Burnished Mirror Smooth Die-Cast Zinc
• UPC: 781747152312
• Thread Length: 0.13 Inch
• Type: Set Screw
• Application: EMT Conduit
• MPN: 231-DC2
• Finish: Ball Burnished/Mirror Smooth
• Installation Method: Set Screw
• Length: 1-7/16 Inch
• GTIN: 30781747152313
• Mounting Type: Threaded Mount
