Bridgeport Fittings 230-DC2 EMT Conn 1-Screw 1/2 Inch 500 per Pack

Product Description

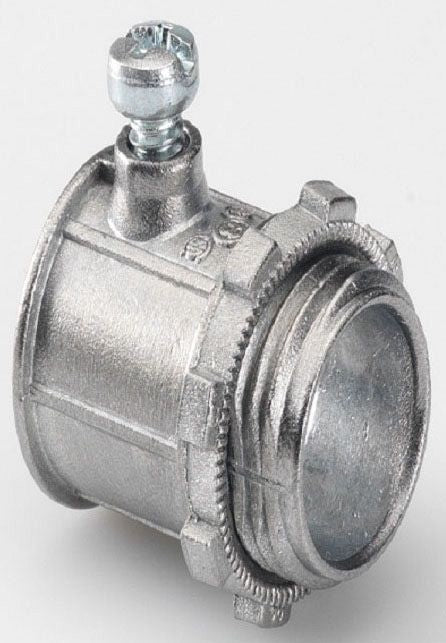

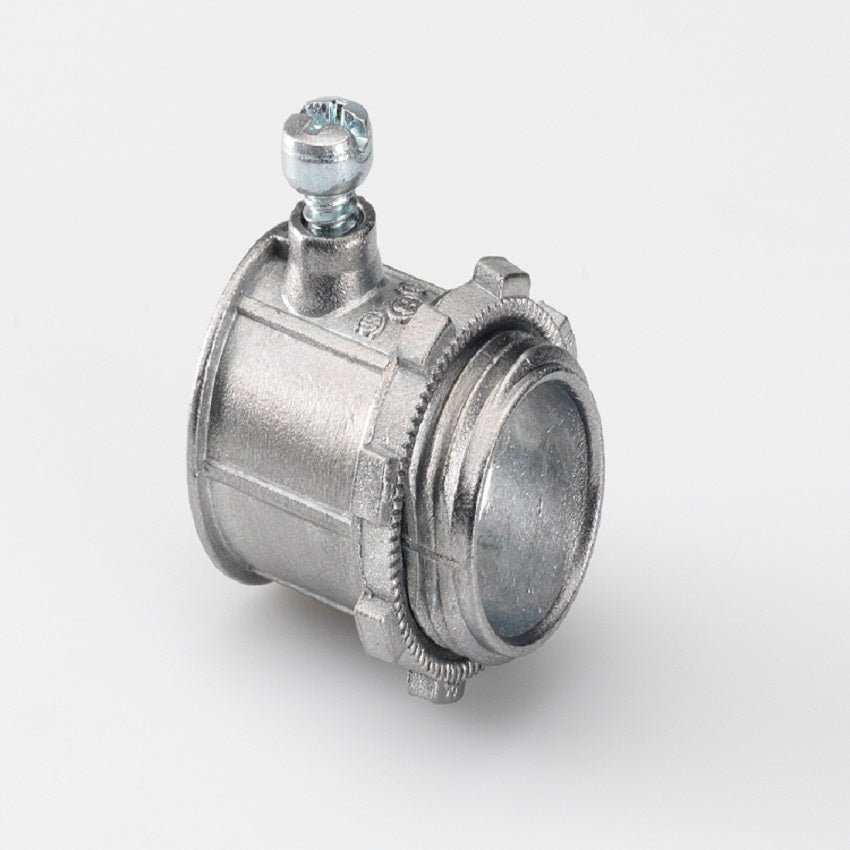

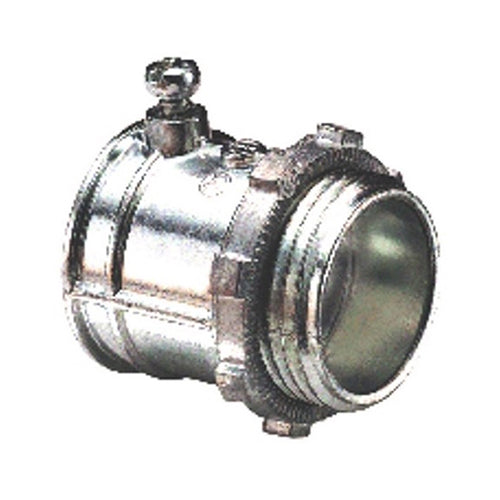

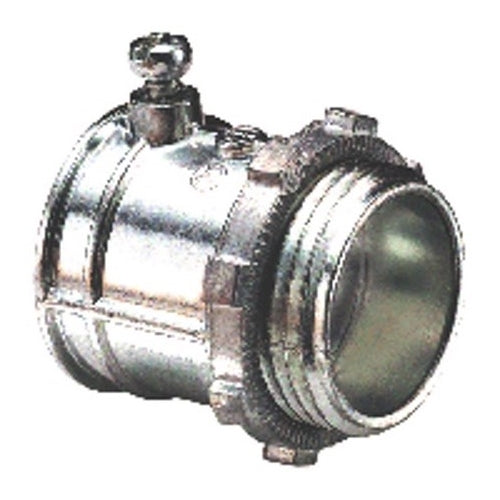

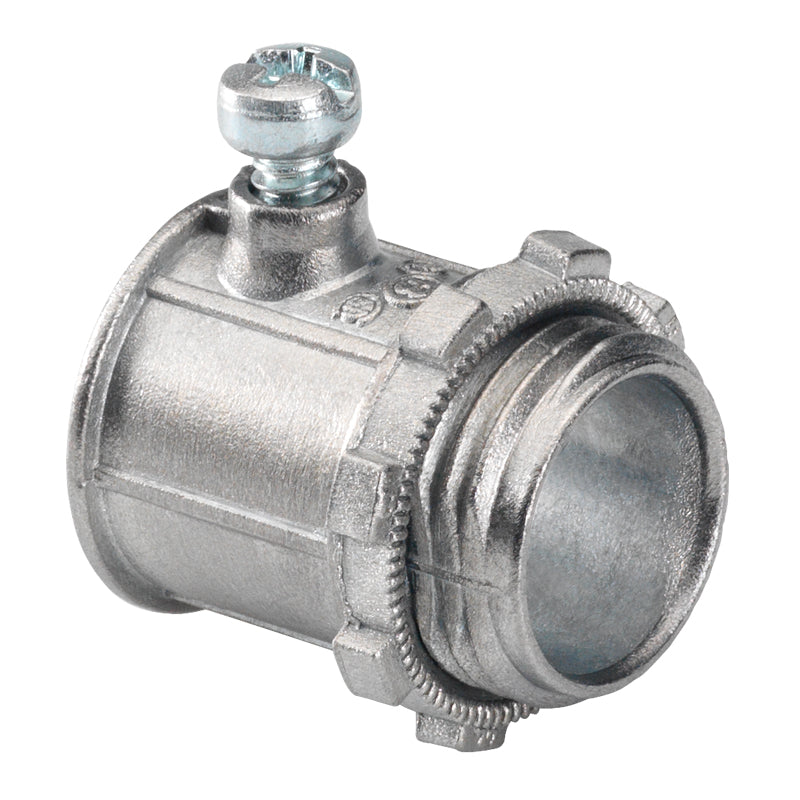

The Bridgeport Fittings 230-DC2 is an EMT connector of the set screw type, designed for use with 1/2 inch EMT conduit. Constructed from ball burnished mirror smooth die-cast zinc, this connector has a diameter of 0.94 inch and a length of 1.13 inch. It is RoHS compliant and approved by UL E24001/514B and CSA LR39354, meeting Federal Specification A-A-50553, FB-1 NEMA, UNSPSC 39121434, and REACH standards. It comes in a standard package of 500 per pack.

• Made in USA for quality assurance and compliance.
• RoHS Compliant, ensuring environmental safety standards are met.
• Features a concrete-tight design for secure connections.

Product Highlights

Secures 1/2 inch EMT conduit to electrical boxes or enclosures.

Product Information

Standard Information

• Brand: BRIDGEPORT FITTINGS
• Manufacturer Part Number: 230-DC2
• Country of Origin: USA

Technical Specifications

• Type: Non-Insulated Set Screw Connector
• Trade Size: 1/2 Inch
• Diameter: 0.94 Inch
• Length: 1.13 Inch
• Material: Ball Burnished Mirror Smooth Die-Cast Zinc
• Certifications: UL E24001/514B, CSA LR39354
• Used On: EMT Conduit
• Standards Met: Federal Specification A-A-50553, FB-1 NEMA, REACH, UNSPSC 39121434
• UNSPSC Code: 39121434
• ECCN: EAR99
• Country of Origin: United States
• Throat Type: Non-Insulated
• Constructional Feature: Concrete-Tight
• Thread Length: 0.38 Inch
• Mounting Type: Threaded
• UPC: 78174715230
• ARRA Compliant: Yes
• Buy American Compliant: Yes
• RoHS Compliance: Yes
• GTIN: 30781747152306
