Bridgeport Fittings 1695 Steel Knockout Hole Plug 1-1/2 in

Product Description

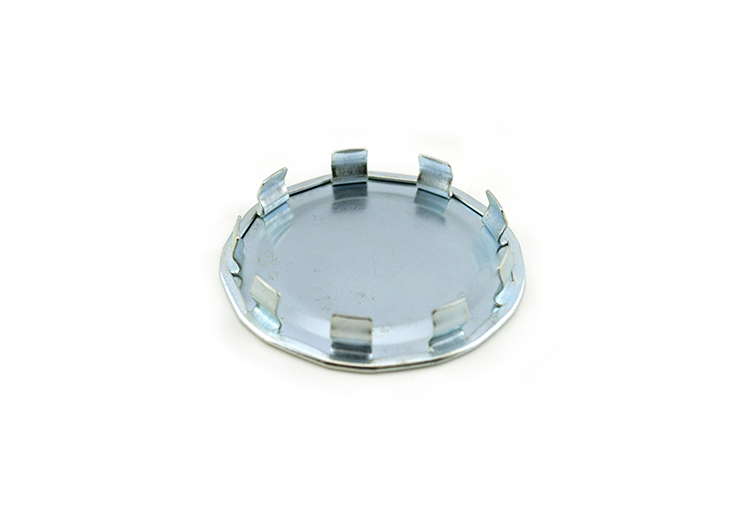

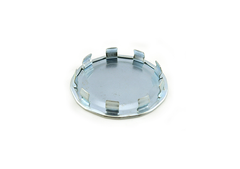

The BRIDGEPORT FITTINGS 1695 is a steel knockout hole plug designed to cap unused knockout openings in electrical boxes and enclosures. Sized for 1-1/2 inch knockouts, this plug installs without tools — it presses or hammers into place from the outside of the box. The steel construction provides a durable, long-lasting seal that holds up in both indoor and outdoor environments. Electricians and maintenance personnel reach for this type of fitting to close off unused openings and maintain the integrity of an enclosure after conduit or wiring changes.

This plug is suited for residential, commercial, and light industrial electrical installations wherever a 1-1/2 inch knockout is left unused. Common applications include panel boxes, junction boxes, outlet boxes, and general-purpose enclosures. It is appropriate for both new construction and retrofit work where an enclosure has been modified and spare knockouts need to be sealed.

Key Features

• Caps unused 1-1/2 inch knockout holes in electrical boxes and enclosures
• Steel construction for durable, lasting closure
• Press-in or hammer-in installation — no special tools required
• Rated for indoor and outdoor use
• Maintains enclosure integrity after conduit or wiring changes

Compatibility

Designed as a standard replacement or fill plug for electrical boxes and enclosures with 1-1/2 inch knockout openings.

Installation Notes

Installation is performed by licensed electricians or qualified maintenance personnel. De-energize the circuit and disconnect power to the enclosure before servicing. The plug seats from the exterior of the box by hand pressure or light hammer taps — do not overdrive, as this can deform the plug or damage the knockout edge. Follow applicable NEC requirements for enclosure integrity and fill.

Technical Specifications

• Knockout Size: 1-1/2 inches
• Material: Steel
• Application: Indoor and Outdoor

Standard Information

• Brand: BRIDGEPORT FITTINGS
• Manufacturer Part Number: 1695
