Bridgeport Fittings 163-G Grounding Locknut 1 In. 14-4 Lug

Product Description

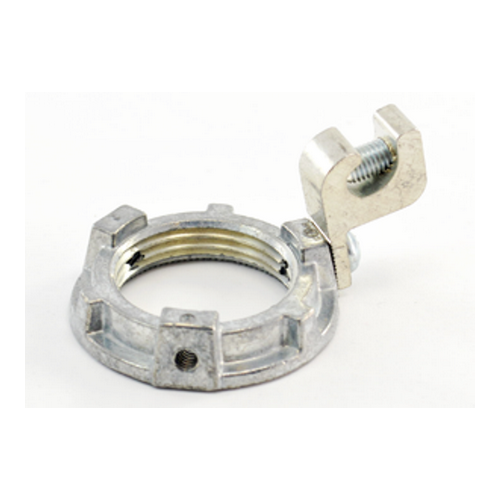

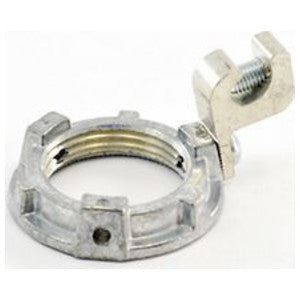

The BRIDGEPORT FITTINGS 163-G Grounding Locknut is a 1-inch zinc die-cast locknut with a 14-4 AWG lug capacity. It is designed for bonding connectors inside electrical boxes, serving as an alternative to a grounding bushing and standard locknut. This locknut is suitable for tight locations or fittings with shorter locknut threads, providing an additional grounding path.

• Used in place of a grounding bushing and locknut for bonding connectors inside the box.
• Ideal for tight locations or fittings with shorter locknut threads.
• ETL Listed for use with all Bridgeport Fittings connectors.

Product Highlights

Provides an additional grounding path and is ETL Listed for use with all Bridgeport Fittings connectors.

Product Information

Standard Information

• Brand: BRIDGEPORT FITTINGS
• Manufacturer Part Number: 163-G
• Country of Origin: China

Technical Specifications

• Color: Gray
• Lug Capacity: 14 to 4 AWG
• Type: Locknut
• Application: Grounding
• Material: Zinc Die Cast
• Size: 1 Inch
• Lug Type: 14-4
• Finish: Ball Burnished Mirror Smooth
• Thread Size: 1 in
