Bridgeport Fittings 162-G Grounding Locknut 3/4 In. 14-4 Lug

Product Description

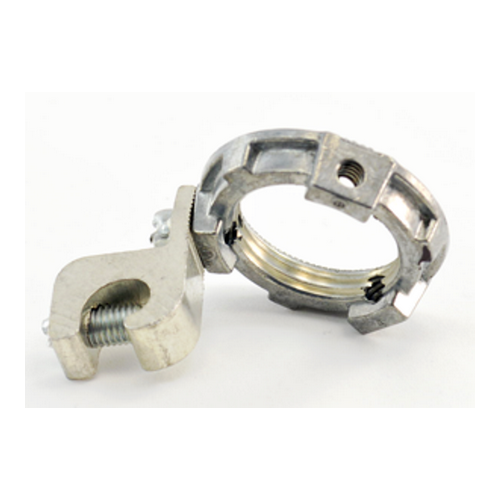

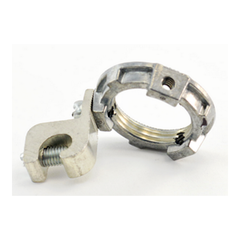

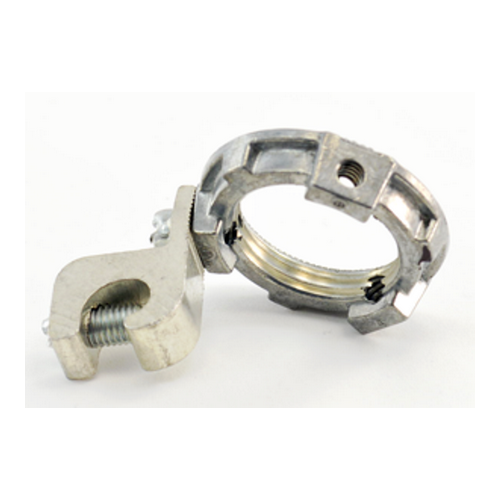

The BRIDGEPORT FITTINGS 162-G is a grounding locknut, constructed from zinc die cast, designed for 3/4 inch applications with a 14-4 lug. It is used for bonding connectors inside electrical boxes, serving as an alternative to a grounding bushing and standard locknut. This locknut is ideal for tight locations or fittings with shorter locknut threads, ensuring secure electrical connections and providing an additional bonding path.

• ETL Listed for use with all Bridgeport Fittings connectors.
• Ideal for tight locations or fittings with shorter locknut threads.
• Replaces a grounding bushing and locknut for bonding connectors inside the box.

Product Highlights

Zinc die cast grounding locknut with 14-4 lug for secure electrical bonding in confined spaces.

Product Information

Standard Information

• Brand: BRIDGEPORT FITTINGS
• Manufacturer Part Number: 162-G
• Country of Origin: China

Technical Specifications

• ECCN: EAR99
• Lug Capacity: 14 to 4 AWG
• Size: 3/4 inch
• Lug Type: 14-4
• Material: Zinc Die Cast
• Function: Grounding
• Product Type: Locknut
• Finish: Ball Burnished Mirror Smooth
