Bridgeport Fittings 1523DC offset nipple 1 1/4 in box of 10

Product Description

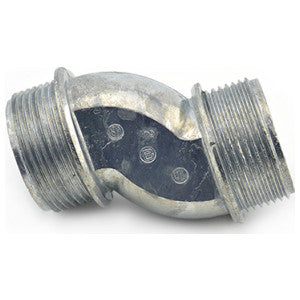

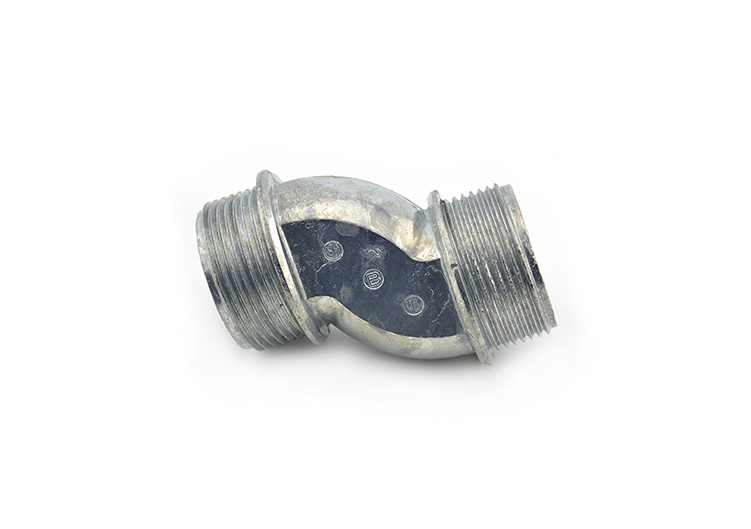

The BRIDGEPORT FITTINGS 1523DC Offset Nipple is a 1-1/4 inch die cast zinc component designed to connect raceways, enclosures, or boxes with differing axes. It facilitates offsetting a conduit system by 3/4 inch, providing a short raceway connection. The nipple features a ball burnished mirror smooth finish, ensuring durability and corrosion resistance for electrical installations.

• Facilitates offsetting a conduit system with differing axes for versatile raceway connections.
• Features NPSM threads for creating a pressure-tight, vibration-resistant seal.
• Constructed from a zinc die cast body, providing natural resistance to corrosion for long-term use.

Product Highlights

Corrosion-resistant die cast zinc offset nipple for 1-1/4 inch conduits, designed to offset raceway axes by 3/4 inch.

Product Information

Standard Information

• Brand: BRIDGEPORT FITTINGS
• Manufacturer Part Number: 1523DC
• Country of Origin: US - United States

Technical Specifications

• Finish: Ball Burnished Mirror Smooth
• Certifications: UL-514B, CSA LR39354, Federal A-A-50553, NEMA FB-1, UL E9391
• Material: Die Cast Zinc
• UNSPSC: 39131718
• EAN/UCC-13: 0781747915238
• GTIN: 30781747915239
• UPC: 781747915238
• Type: Offset
• Series: 1523
• Size: 1-1/4 Inch
• End Style: Male Threaded
• Length: 3.063 Inch
• Offset Capability: 3/4 Inch
• ECCN: EAR99
• Country of Origin: US - United States
• Use With: Enclosure Runs
