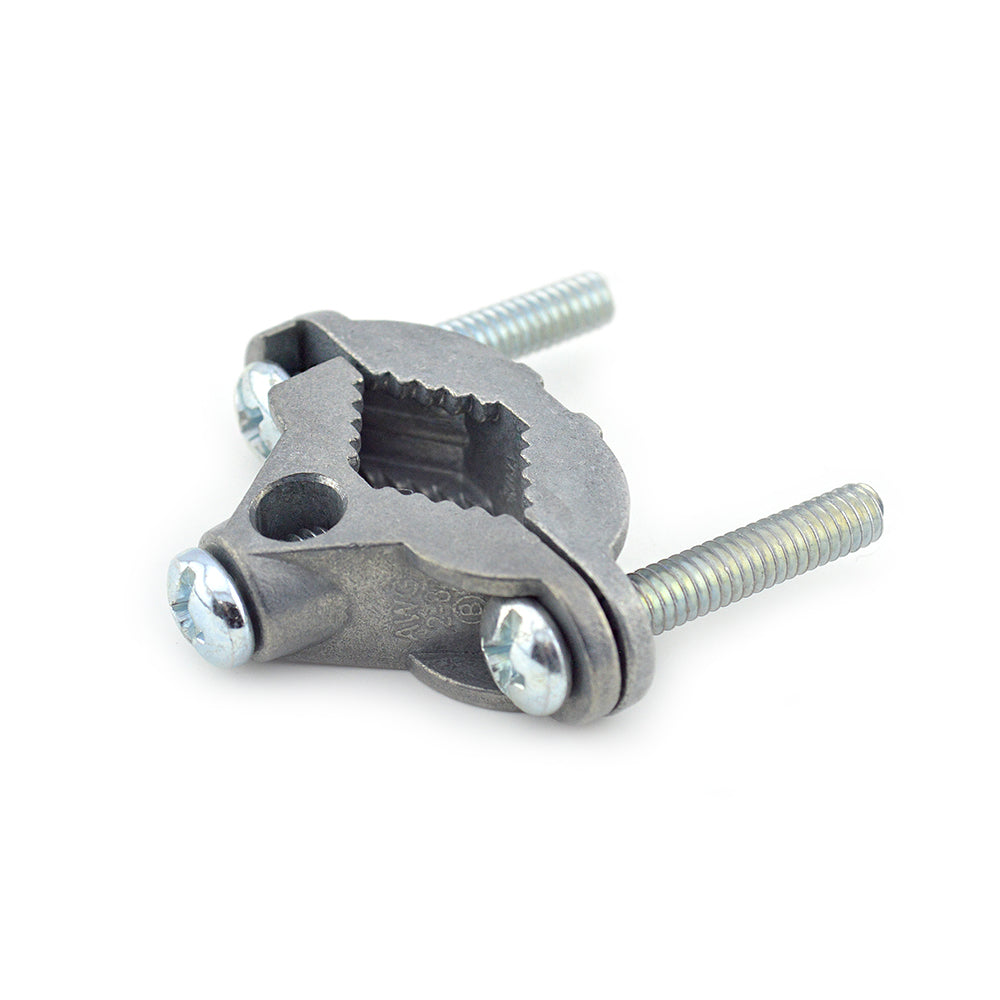

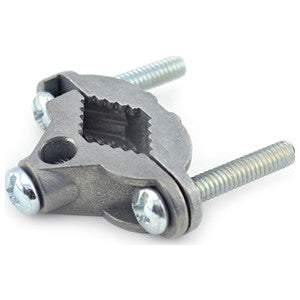

Bridgeport Fittings 1309-DC 1/2 to 1 Inch 8 to 4 AWG Ball Burnished Zinc Die Cast Bare Wire Ground Clamp

Product Description

The BRIDGEPORT FITTINGS 1309-DC is a bare wire ground clamp designed for electrical grounding applications. This zinc die-cast clamp connects 8 to 4 AWG bare wire to 1/2 to 1 inch pipe, including copper water pipes. It ensures a secure connection for grounding electrodes and is suitable for various pipe sizes. The ball burnished mirror smooth finish provides durability. It is UL 467 and CSA approved, meeting stringent electrical standards for safety and performance.

• Connects 8 AWG, 6 AWG, or 4 AWG bare copper wire to 1/2 to 1 inch IPS pipe.
• Constructed from durable ball burnished mirror smooth die-cast zinc for corrosion resistance.
• UL 467 and CSA approved for reliable grounding applications.

Product Highlights

Durable zinc die-cast ground clamp for secure electrical connections to pipes.

Product Information

Standard Information

• Brand: BRIDGEPORT FITTINGS
• Manufacturer Part Number: 1309-DC
• Country of Origin: China

Technical Specifications

• ECCN: EAR99
• Country of Origin: CN - China
• UNSPSC: 39121613
• Approval: UL 467, CSA
• Conductor Size: 8 AWG, 6 AWG, 4 AWG (Copper)
• IPS Size: 1/2 to 1 Inch
• Manufacturer: Bridgeport Fittings
• Material: Ball Burnished Mirror Smooth Die-Cast Zinc
• Type: Ground Clamp With Steel Strap
• Finish: Ball Burnished Mirror Smooth
• Conductor Type: Bare Copper
• Applicable Standard: Federal Specification A-A-50552, NEMA FB-1
