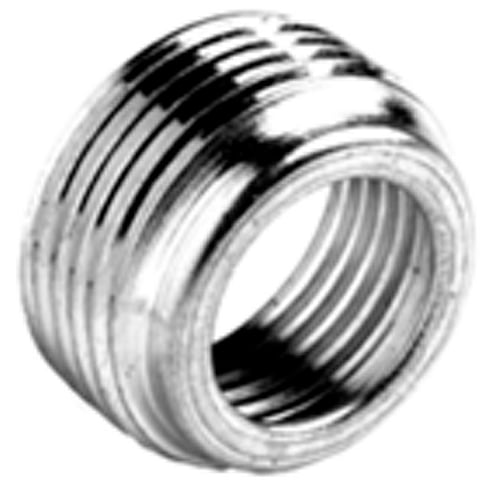

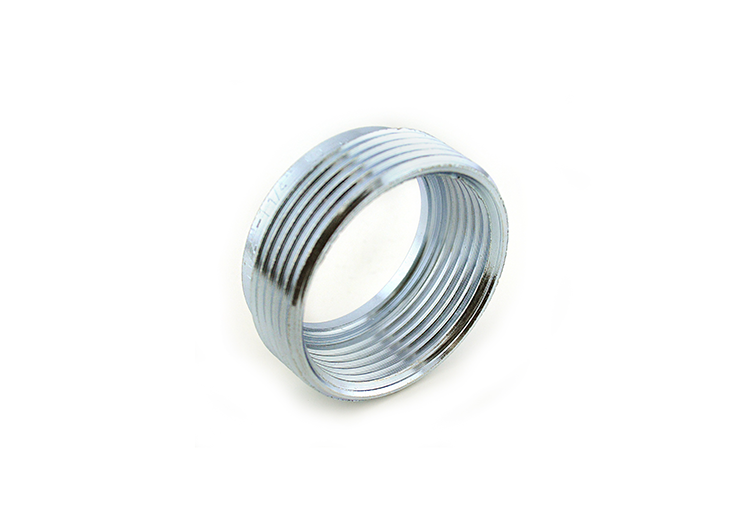

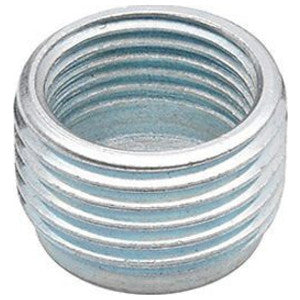

Bridgeport Fittings 1170 conduit reducing bushing 1-1/2 to 1-1/4 in

Product Description

The BRIDGEPORT FITTINGS 1170 is a conduit reducing bushing designed for rigid and IMC conduit applications, reducing internal female threads from 1-1/2 inches to 1-1/4 inches. Constructed from zinc electroplated steel, this threaded bushing provides corrosion resistance and consistent alignment for secure connections. It features a plastic liner to prevent wire insulation damage, suitable for temperatures up to 150 degrees C.

• ROHS Compliant, meeting environmental standards.
• Reduces internal female threads from 1-1/2 inches to 1-1/4 inches for rigid and IMC conduits.
• Features a plastic liner to prevent damage to wire insulation and is rated for 150 degrees C.

Product Highlights

Durable zinc electroplated steel construction with a protective plastic liner for conduit size reduction.

Product Information

Standard Information

• Brand: BRIDGEPORT FITTINGS
• Manufacturer Part Number: 1170
• Country of Origin: China

Technical Specifications

• ECCN: EAR99
• Country of Origin: China
• UNSPSC: 39121312
• Approval: UL 514B, UL (Canada and US), CSA, Type UL E9391, RoHS Compliant, CSA LR39354
• Material: Zinc Electroplated Steel
• Type: Threaded
• Used On: IMC/Rigid Conduit
• Trade Size: 1-1/2 to 1-1/4 in
• Temperature Rating: 150 deg C
• Application: For use with locknut to protect conductors inside threaded rigid or IMC conduit entering a box
