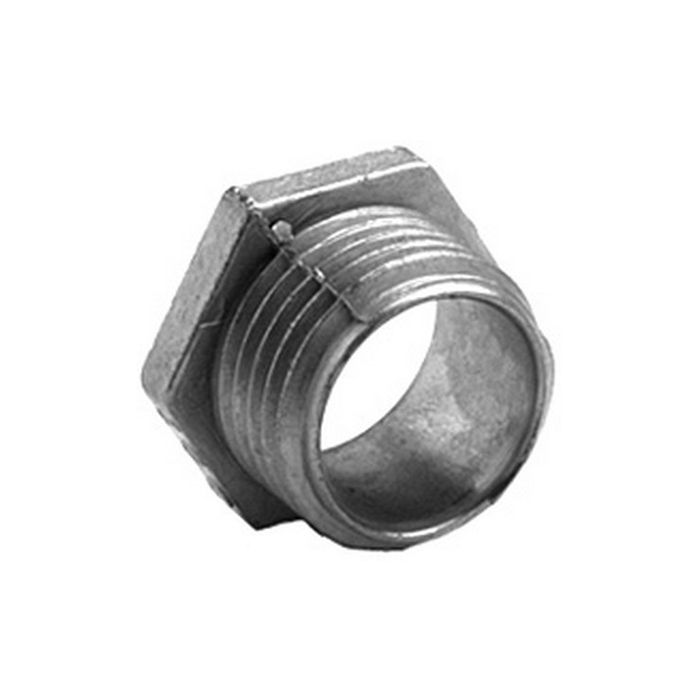

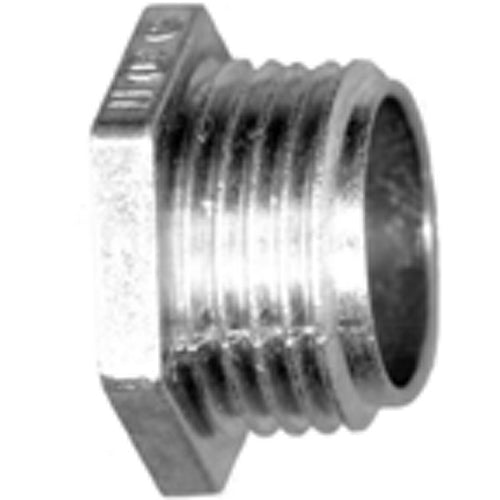

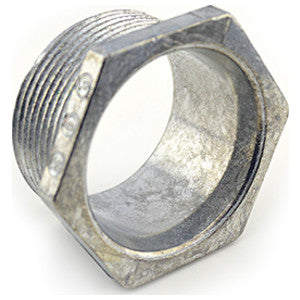

Bridgeport Fittings 1106DC Chase Nipple 1-1/2 in. 100/Pack

Product Description

The BRIDGEPORT FITTINGS 1106DC Chase Nipple is a 1-1/2 inch zinc die cast fitting designed for electrical conduit applications. It can be used through a knockout to connect a box to a conduit coupling, or with a locknut to join two boxes or connect fixture housing to continuous runs. This non-insulated nipple serves as a short raceway between enclosures, suitable for Rigid/IMC Conduit systems. Its ball burnished/mirror smooth finish ensures durability.

• Constructed from durable zinc die cast material with a ball burnished/mirror smooth finish.
• Designed for use with Rigid/IMC Conduit, featuring a non-insulated throat and male threaded end style.
• Facilitates connections between boxes, conduit couplings, or fixture housing, acting as a short raceway.

Product Highlights

This 1-1/2 inch chase nipple provides a secure, non-insulated, male threaded connection for Rigid/IMC conduit systems, ideal for creating short raceways between enclosures.

Product Information

Standard Information

• Brand: BRIDGEPORT FITTINGS
• Manufacturer Part Number: 1106DC
• Country of Origin: United States

Technical Specifications

• Finish: Ball Burnished/Mirror Smooth
• Material: Zinc Die Cast
• Type: Chase Nipple
• Conduit Type: Rigid/IMC Conduit
• Throat Type: Non-Insulated
• Size: 1-1/2 in.
• Length: 1-3/8 in
• Diameter: 2-3/8 in
• Series: 1106
• End Style: Male Threaded
• Thickness: 5/16 Inch
• Hex Size: 2-3/8 Inch
• Threads: NPSM
• Drive System: External Hex
• Approvals: UL 514B, UL E9391 Listed, CSA LR39354 Certified, NEMA FB-1, RoHS Complaint
