Bridgeport Fittings 1005 Anti-Short Bushing Size 5

Product Description

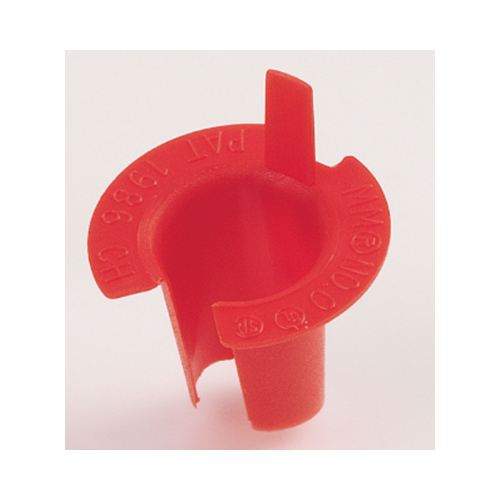

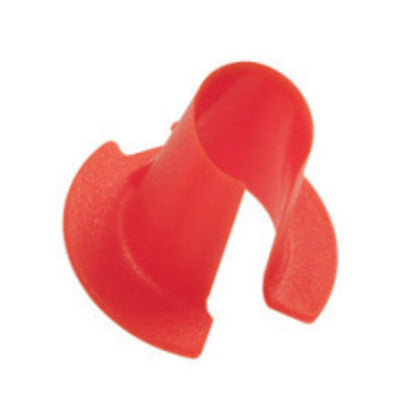

The BRIDGEPORT FITTINGS 1005 is a polyethylene anti-short bushing designed to protect wire insulation. This bushing, available in a 5 trade size and compatible with 1 inch flex trade size, is placed between the wire and armored sheath. Its "Redhead" design prevents damage and abrasion to wire insulation, reducing the risk of electrical shorts. Constructed from polyethylene, it is rated for temperatures up to 90 degrees C.

• Polyethylene anti-short bushing for wire insulation protection.
• Features a 5 trade size and 1 inch flex trade size compatibility.
• "Redhead" design prevents damage to wire insulation when placed between wire and armored sheath.

Product Highlights

Prevents damage to wire insulation and reduces risk of shorts in electrical installations.

Product Information

Standard Information

• Brand: BRIDGEPORT FITTINGS
• Manufacturer Part Number: 1005
• Country of Origin: Canada

Technical Specifications

• Bushing Type: Anti-Short Bushing
• Material: Polyethylene
• Trade Size: 5 Inch
• FMC Compatible Size: 1 inch
• Temperature Rating: 90 C
• Color: Red
• UL Standard: UL-514B
• AC Cable Size: 14 to 1/0 AWG
