Bridgeport Fittings 1001 Anti-Short Bushing Size 1

Product Description

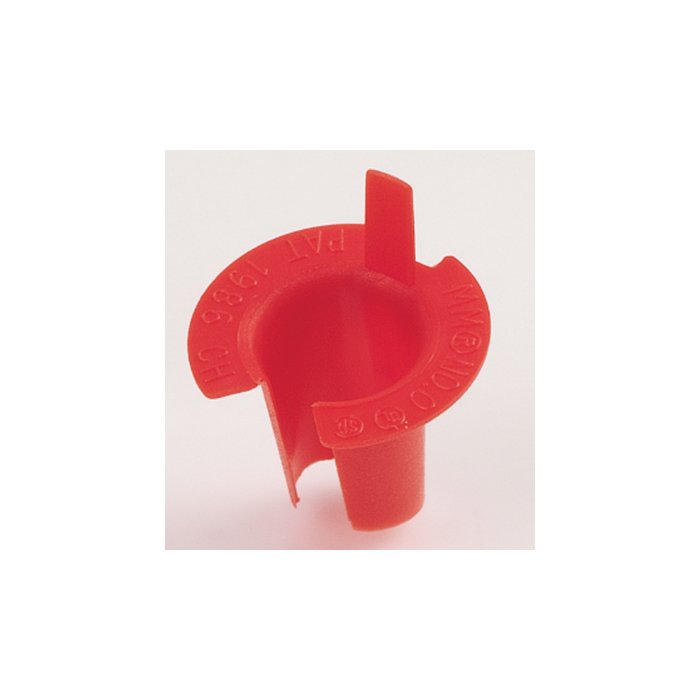

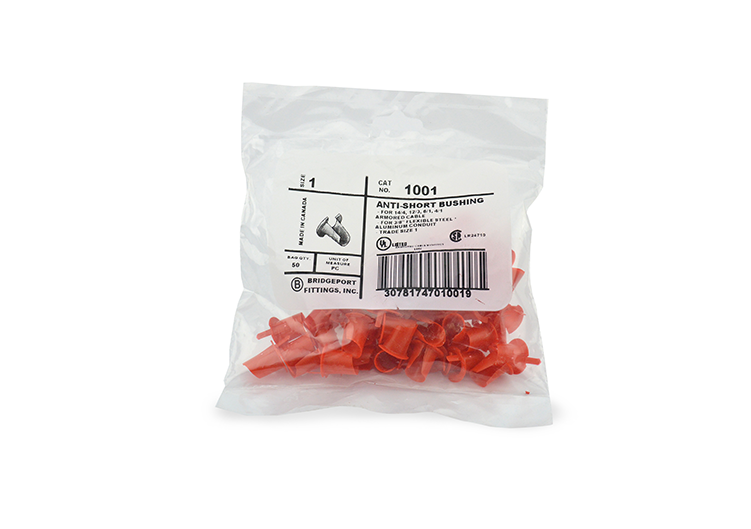

The BRIDGEPORT FITTINGS 1001 anti-short bushing is a polyethylene component designed to protect wire insulation. This bushing, with a trade size of 1 and a 3/8 inch flex trade size, is used between the wire and armored sheath to prevent damage. It is compatible with various cable sizes, including 14/4, 12/3, 6/1, and 4/1, and is suitable for 3/8 inch Flexible Metal Conduit (FMC). It is rated for temperatures up to 90 degrees C.

• Polyethylene construction with a 1 trade size and 3/8 inch flex trade size.
• Prevents damage to wire insulation when installed between the wire and armored sheath.
• Compatible with 14/4, 12/3, 6/1, 4/1 cables and 3/8 inch Flexible Metal Conduit (FMC).

Product Highlights

Effectively prevents wire insulation damage in electrical installations.

Product Information

Standard Information

• Brand: BRIDGEPORT FITTINGS
• Manufacturer Part Number: 1001
• Country of Origin: Canada

Technical Specifications

• Type: Anti-Short Bushing
• Material: Polyethylene
• Trade Size: 1
• Color: Red
• Cable Compatibility: 14/4, 12/3, 6/1, 4/1 Cable
• FMC Size: 3/8"
• UL Standard: UL-514B
• Finish: Plain
• Temperature Rating: 90 deg C
