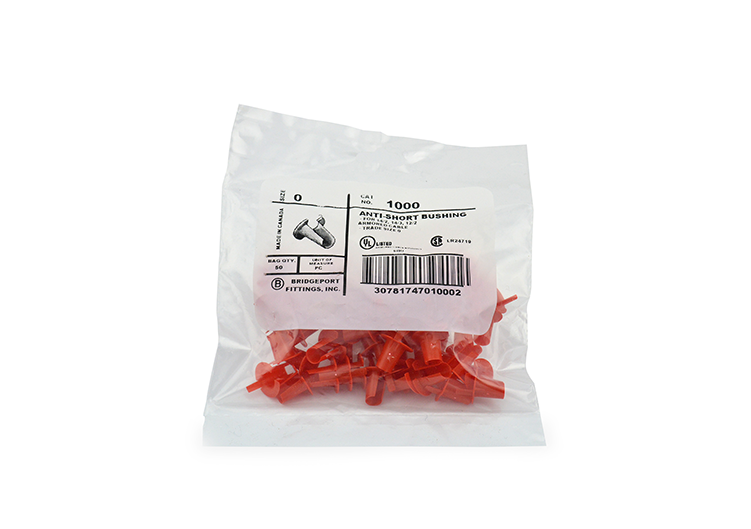

Bridgeport Fittings 1000 Anti-Short Bushing Size 0 Bag of 50

Product Description

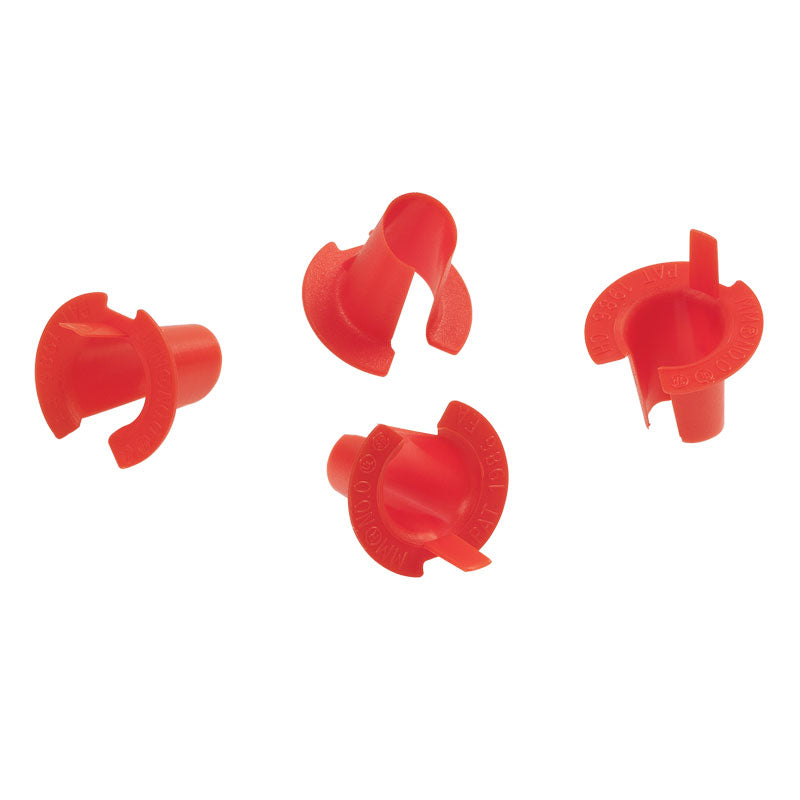

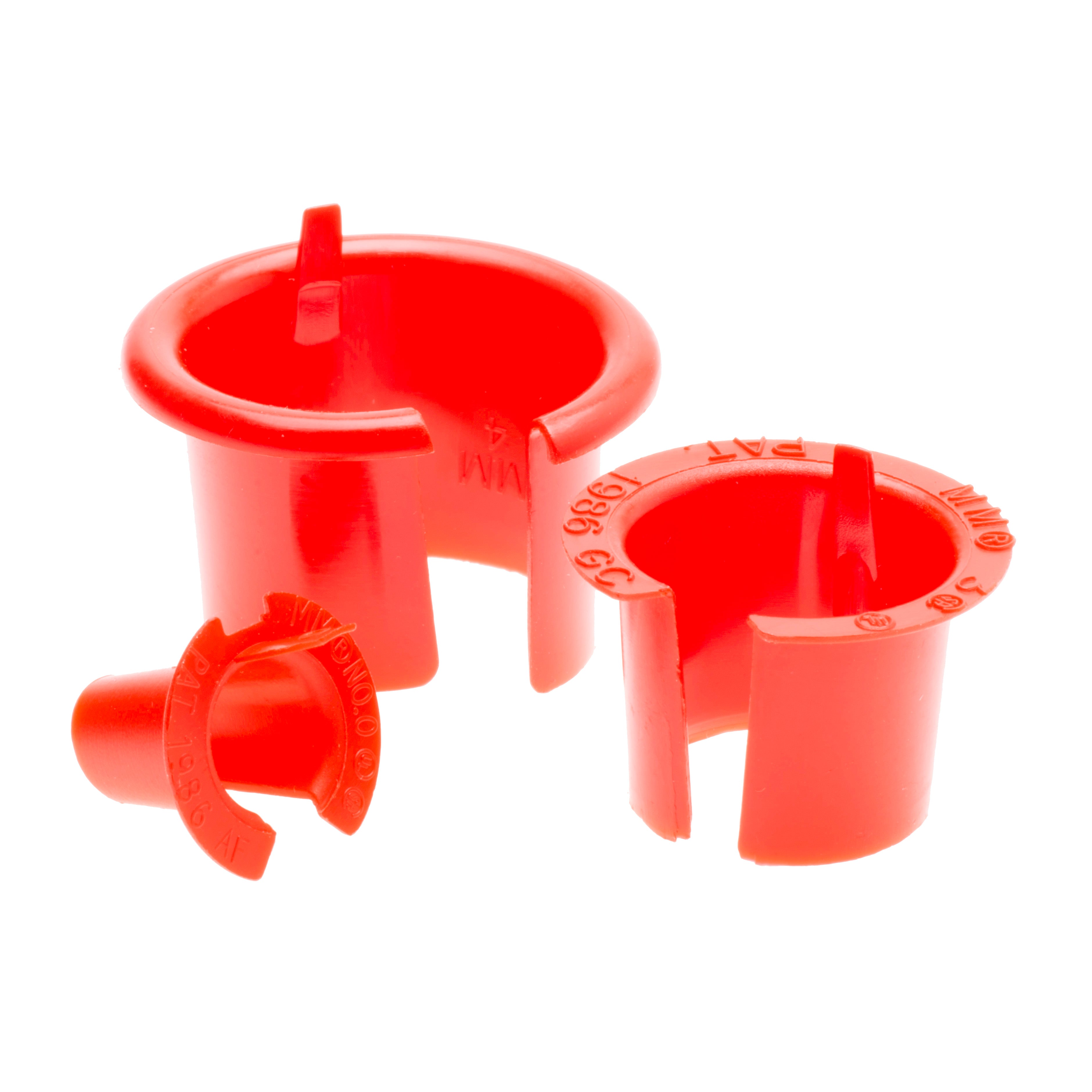

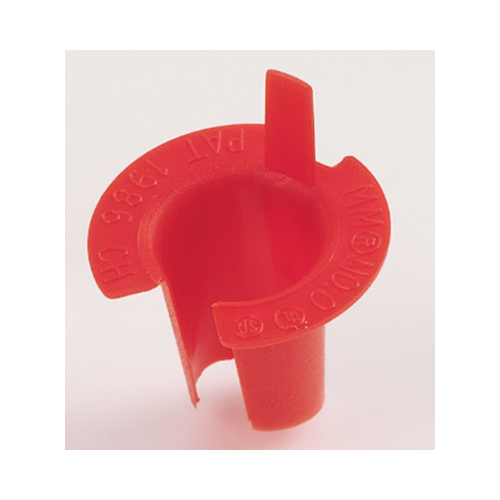

The BRIDGEPORT FITTINGS 1000 Anti-Short Bushing is a polyethylene component designed to prevent damage to wire insulation. This bushing, with a 0 trade size and 5/16 inch flex trade size, is placed between the wire and armored sheath. It is compatible with 14 AWG and 12 AWG AC cables, including 14/2, 14/3, and 12/2 cables, and 5/16 inch Flexible Metal Conduit (FMC).

• Constructed from durable polyethylene material.
• Features a 0 trade size and 5/16 inch flex trade size.
• Prevents damage to wire insulation and protects cables from abrasion.

Product Highlights

Effectively prevents wire insulation damage and cable abrasion in conduit installations.

Product Information

Standard Information

• Brand: BRIDGEPORT FITTINGS
• Manufacturer Part Number: 1000
• Country of Origin: Canada

Technical Specifications

• Type: Anti-Short Conduit Bushing
• AWG Compatibility: 14 AWG, 12 AWG AC Cable
• Trade Size: #0 Trade
• Material: Polyethylene
• Finish: Plain
• Brand: BRIDGEPORT FITTINGS
• MPN: 1000
• Cable Compatibility: 14/2, 14/3, 12/2
• FMC Compatibility: 5/16 inch
• Color: Red
• UL Standard: UL 514B
• Temperature Rating: 90 deg C
• Standards & Approvals: UL E11259, UL 514B, CSA LR24719M5, NEMA FB-1, RoHS Compliant
