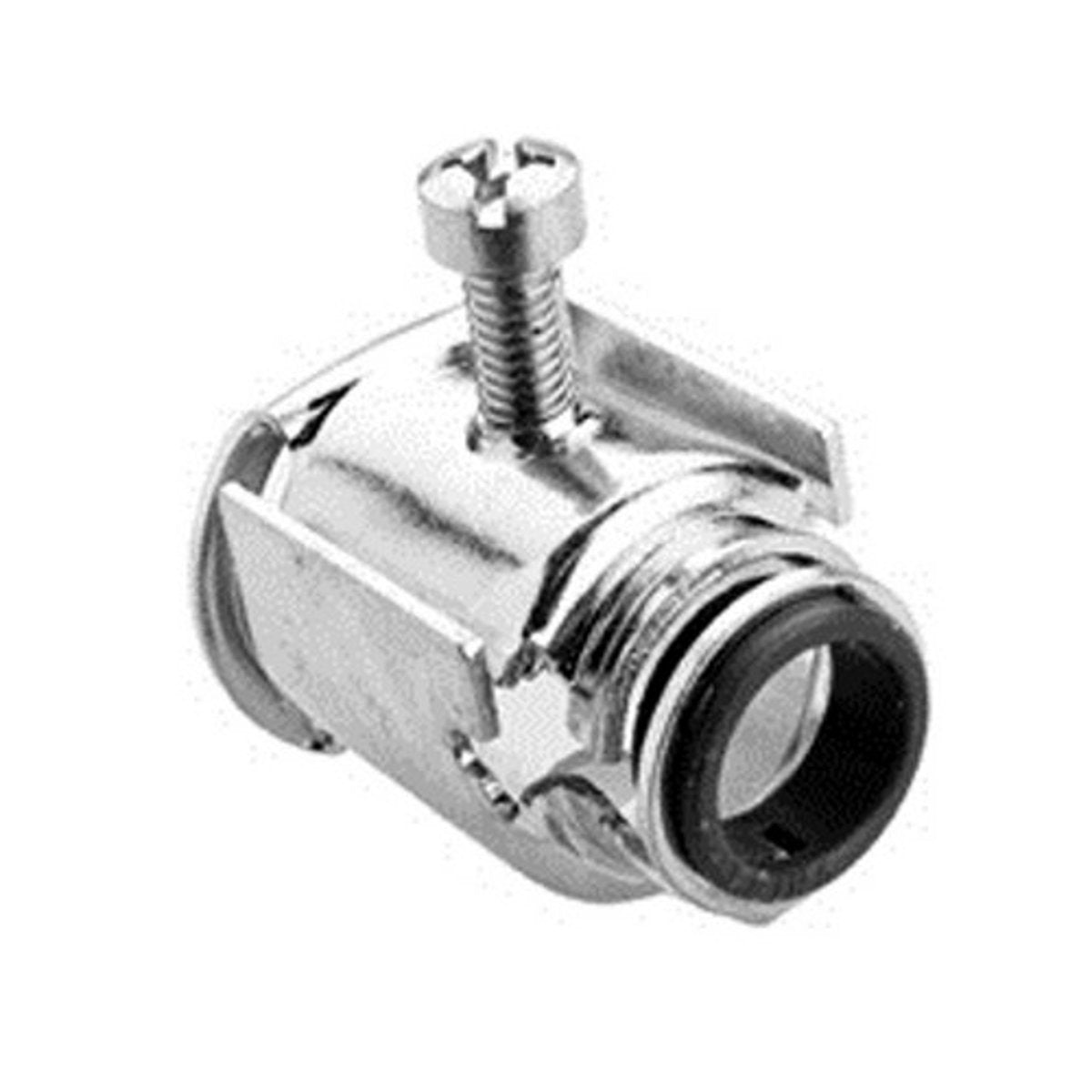

Bridgeport AMC-5075 Connector, E-Z Lock, Steel, .565 Inch Throat Opening

Product Description

The Bridgeport AMC-5075 is a steel E-Z Lock connector designed for easy installation. This connector fits cables with a throat opening of .565 inches. It is ideal for connecting various types of cables including steel interlocked and aluminum clad cables.

• Compatible with 10/4 to 6/3 conductor range.
• Meets cULus safety standards.
• Temperature rated up to 105 degrees Celsius.

Product Highlights

The E-Z Lock feature enables quick and secure cable connections, making it suitable for both residential and commercial applications.

Product Information

Standard Information

• Catalog Number: AMC-5075
• Manufacturer: Bridgeport Fittings, LLC

Technical Specifications

• Brand: Bridgeport
• UPC: 781747205773
• GTIN: 00781747205773
• Size: 1/2
• Finish: Zinc Electro-Plate
• Material: Steel
• Application: For steel interlocked and aluminum interlocked cables
• Conductor Range: 10/4 (.62 0 min) to 6/3 (.803 0 max)
• Number of Conductors: 1 Cable
• Country of Origin: China
