Bridgeport AMC-5075 Connector, E-Z Lock, Steel, .565 Inch Throat Opening

Product Description

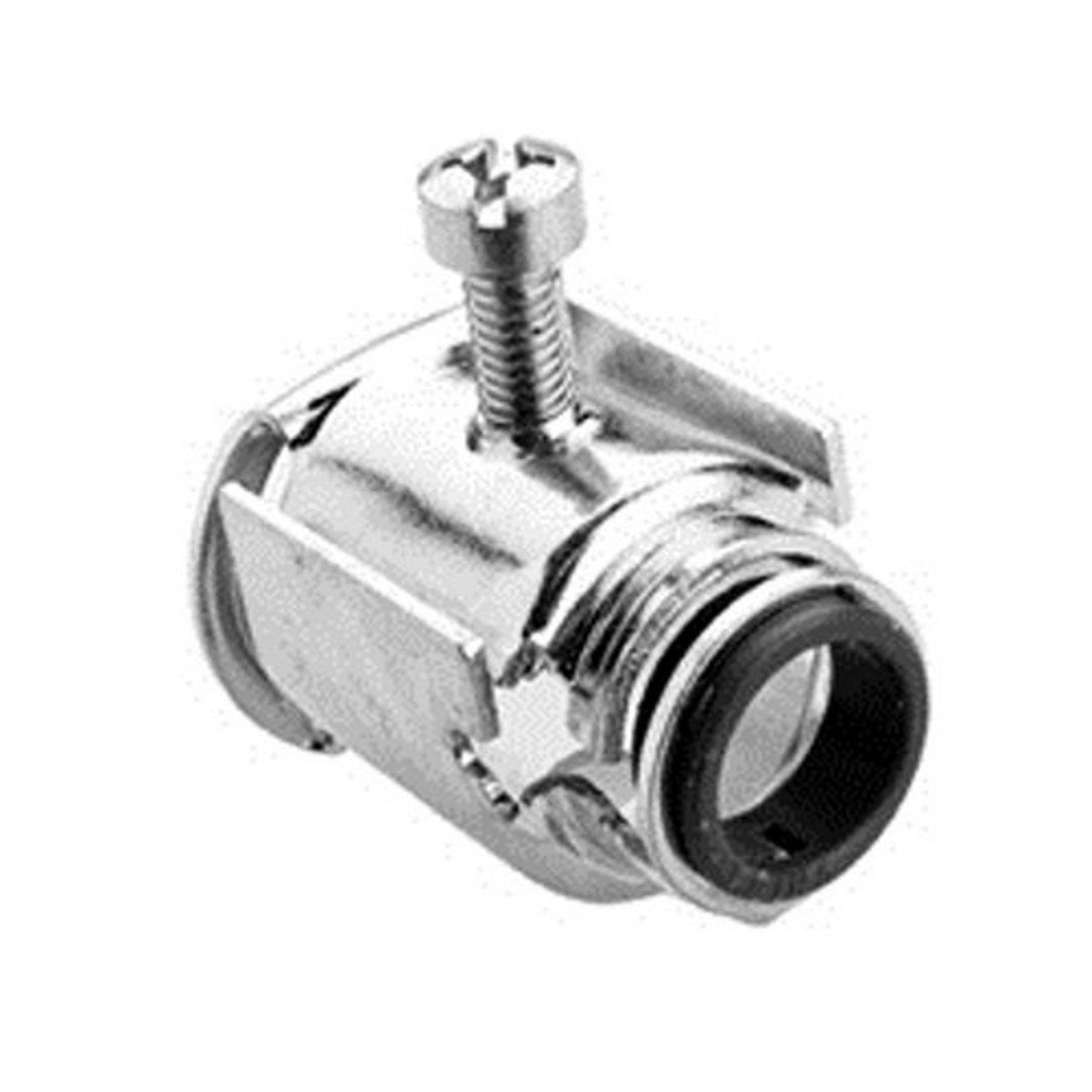

The Bridgeport AMC-5075 is a steel E-Z Lock connector designed for quick and effective installation. This connector accommodates cable types such as steel interlocked, aluminum interlocked, and aluminum corrugated metal clad cable. It features a throat opening of .565 inches, allowing for easy cable handling and secure connections.

• Compatible with 10/4 to 6/3 gauge cables
• Constructed from durable steel with a zinc electro-plate finish
• Insulator rated for temperatures up to 105 degrees Celsius

Product Highlights

This connector is ideal for connecting flexible metal conduit to a box or enclosure, ensuring safety and reliability in electrical systems.

Product Information

Standard Information

• Catalog Number: AMC-5075
• Manufacturer: Bridgeport Fittings, LLC

Technical Specifications

• Brand: Bridgeport
• Country of Origin: China
• Material: Steel
• Finish: Zinc Electro-Plate
• Temperature Rating: 105 Degrees C
• Conductor Range: 10/4 (minimum 0.62 inches) to 6/3 (maximum 0.803 inches)
• UPC: 781747205773
• Item Type: Connector
• Size: 1/2
