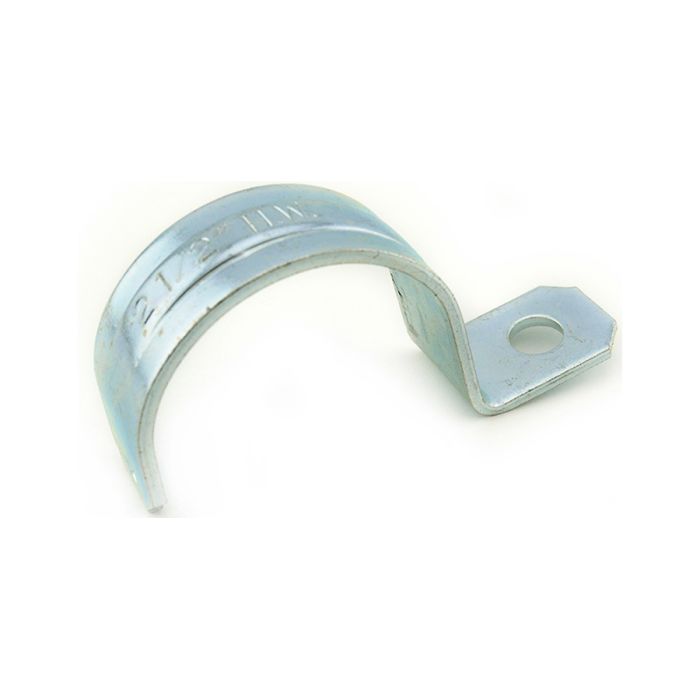

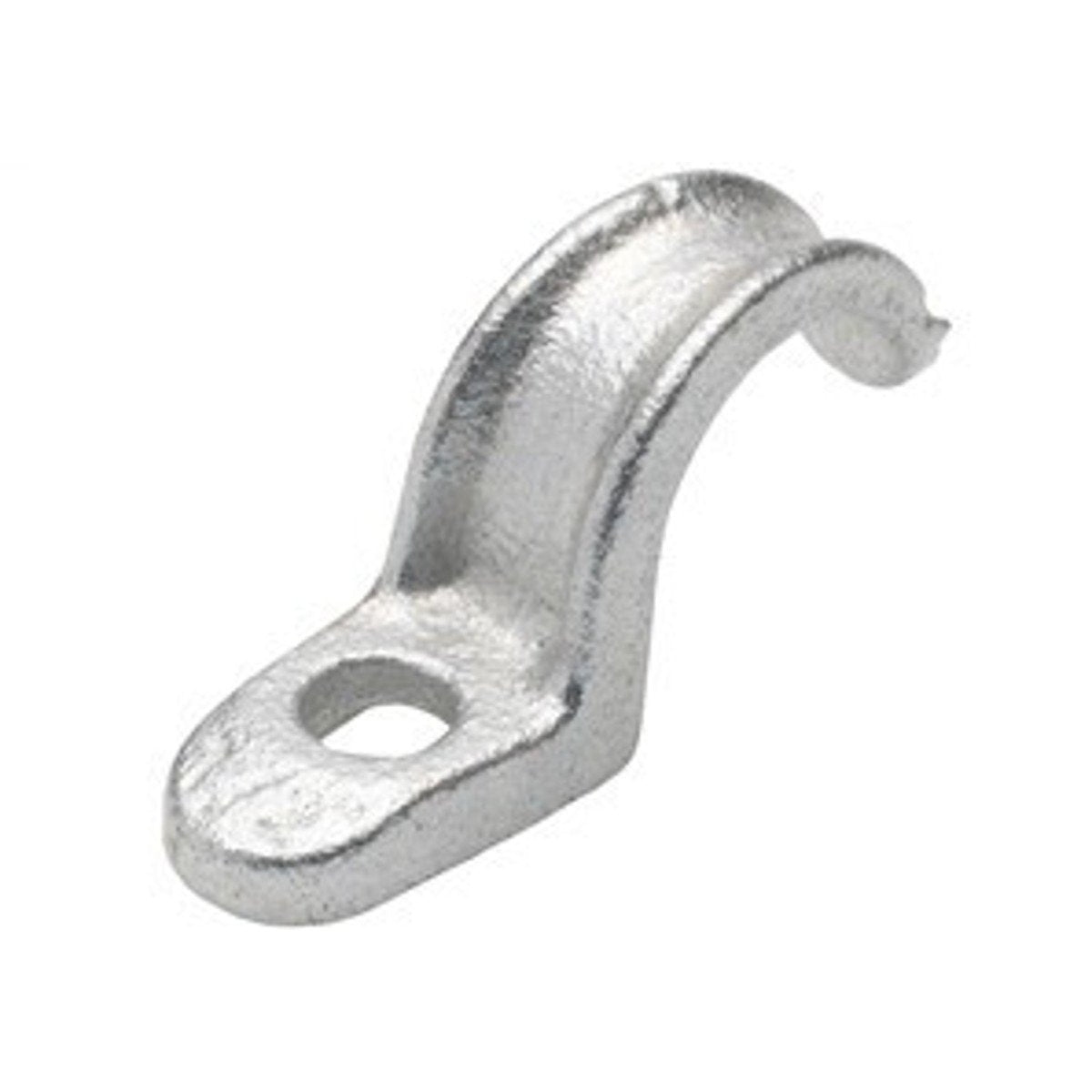

Bridgeport 907 Strap, One Hole, Malleable Iron, Size 2 1/2 Inch

Product Description

The BRIDGEPORT 907 strap is used to support EMT to a mounting surface. This one-hole pipe strap is made from zinc electro-plated malleable iron and is suitable for use with IMC/Rigid conduit. It measures 3-3/8 in L x 1-1/4 in W and has a 9/16 inch stud size.

• For Use With: IMC/Rigid Conduit
• 1-Hole design
• Made of Steel with Electro-Plated Zinc finish

Product Highlights

The Bridgeport 907 is a one-hole pipe strap made of malleable iron with a zinc electro-plated finish, designed for supporting EMT to mounting surfaces.

Product Information

Standard Information

• Brand: BRIDGEPORT
• Manufacturer Part Number: 907
• Country of Origin: China

Technical Specifications

• Catalog Number: 907
• Manufacturer: Bridgeport Fittings, LLC
• Brand: Bridgeport
• Country of Origin: China
• Made in USA: No
• Application: Used to support EMT to mounting surface.
• Finish: Zinc Electro-Plated
• Material: Malleable Iron
• Standard: cULus
• UPC: 781747009074
• GTIN: 00781747009074
• Item Type: One Hole Pipe Strap
• Size: 2 1/2 in
• Hole/Bolt Size: 9/16 Inch
• Length: 3-15/16 Inch
• Width: 1-1/4 Inch
• Approval: UL 514B, UL (Canada and US), CSA
• Used On: IMC/Rigid Conduit
• ROHS Compliant: True
• Mounting Type: Surface
• Suitable For Use With: IMC/Rigid Conduit
• Type: 1-Hole
• Stud Size: 9/16 in
