Bridgeport 811 2-1/2 90D Sqz Flexconn (Pack of 5)

Product Description

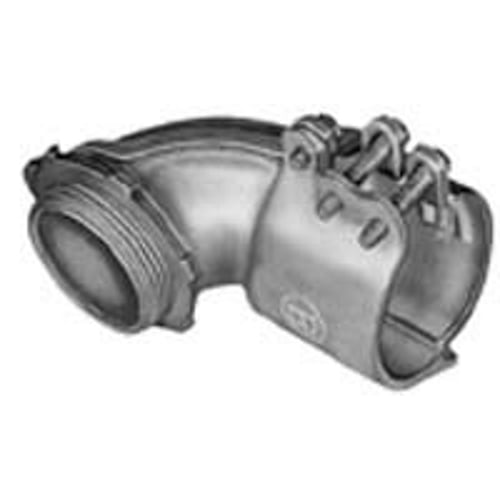

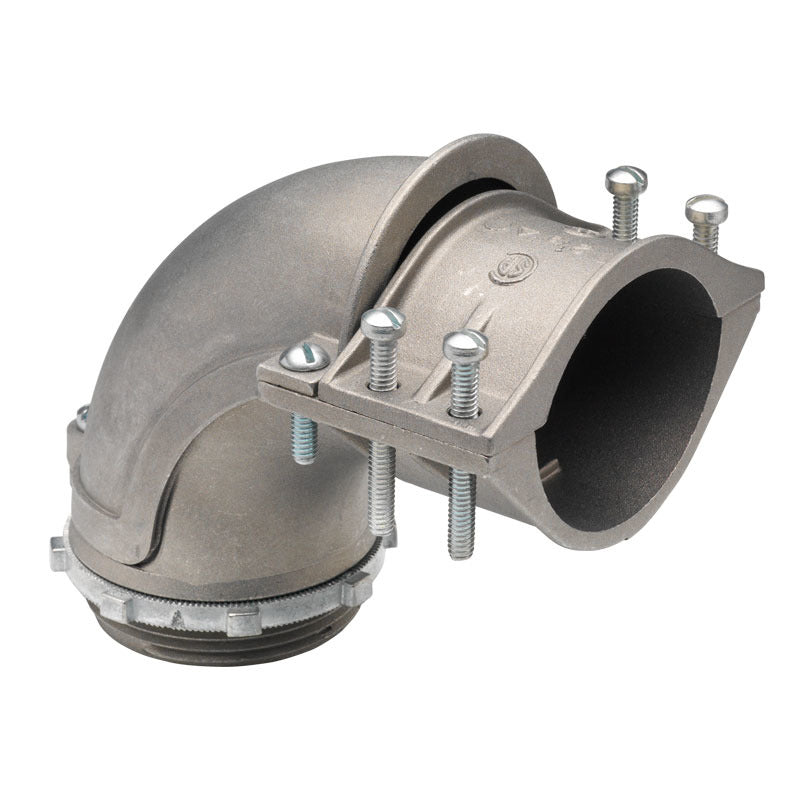

The BRIDGEPORT 811 is a flexible conduit connector designed to join flexible metal conduit to an electrical box or enclosure at a 90-degree angle. Constructed from zinc electroplated malleable iron, it is suitable for heavy-duty applications. This connector fits a 2-1/2 inch trade size and knockout.

• Connects flexible metal conduit to an electrical box or enclosure at a 90-degree angle
• Constructed from heavy-duty malleable iron
• UL listed and RoHS compliant

Product Highlights

This 2-1/2 inch 90-degree squeeze connector is made from zinc electroplated malleable iron and is UL listed and RoHS compliant.

Product Information

Standard Information

• Brand: BRIDGEPORT
• Manufacturer Part Number: 811
• Country of Origin: IND

Technical Specifications

• Type: 90 Degree
• Trade Size: 2-1/2 in
• Knockout Size: 2-1/2 Inch
• Cable Opening: Single
• Cable/Conduit Type: Flexible Metal Conduit
• Throat Type: Non-Insulated
• Material: Malleable Iron
• Approval: UL 514B, UL (Canada and US), CSA
• ROHS Compatible: True
• Applicable Standard: Federal Specification A-A-50552, NEMA FB-1
• Finish: Zinc Plated
• Angle: 90 deg
• Application: Used to connect flexible metal conduit to box or enclosure
• Standard & Approvals: CSA LR39354 Certified, UL E9391, UL 514B Listed, NEMA FB-1
