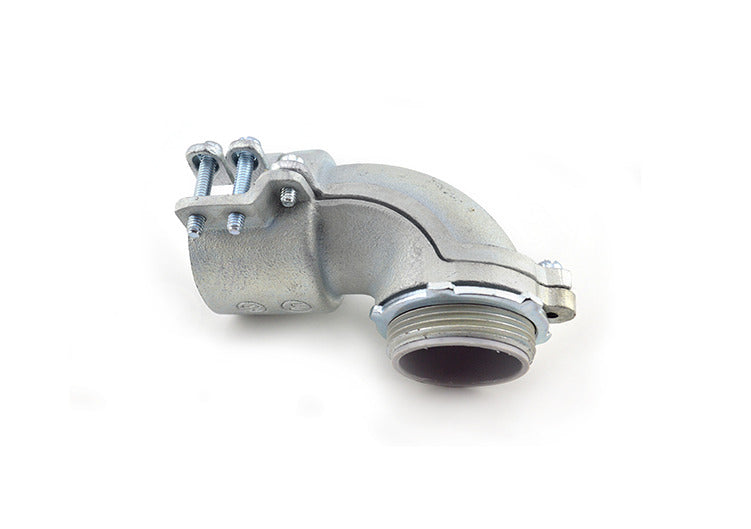

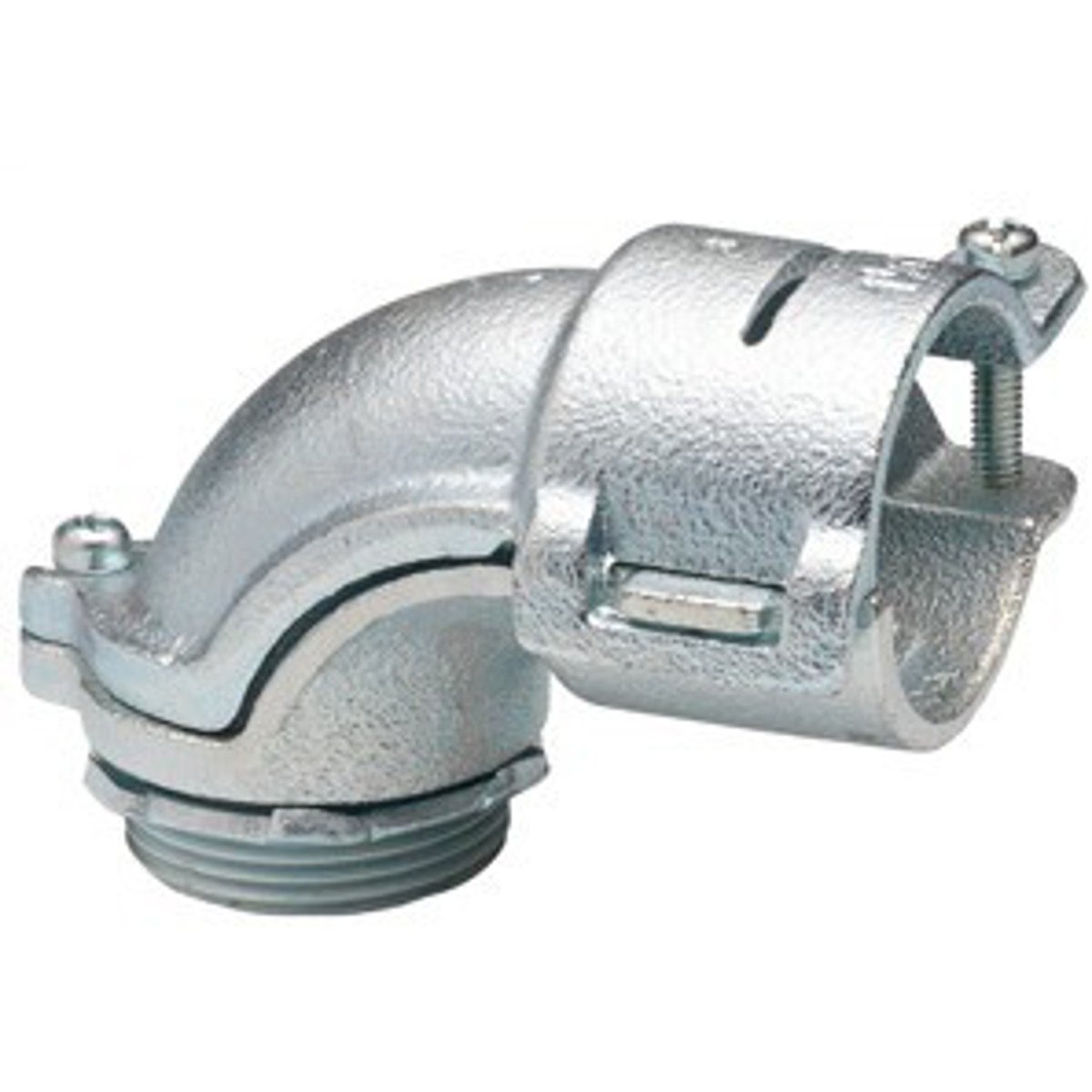

Bridgeport 809-I Connector, 90 Degrees, Malleable Iron, Insulated Throat, Size K.O. 1 1/2 Inch

Product Description

The BRIDGEPORT 809-I is a 90-degree connector with a cover, designed for connecting flexible metal conduit to a box or enclosure. Constructed from zinc electro-plated malleable iron, this connector features an insulated throat to protect inner wiring. It is suitable for use with 1 1/2 inch K.O. sizes.

• Constructed from zinc electro-plated malleable iron
• Features an insulated throat for wiring protection
• Certified by cULus and CSA

Product Highlights

This 90-degree connector is ideal for establishing secure connections between flexible metal conduits and electrical boxes, ensuring safety and reliability.

Product Information

Standard Information

• Brand: BRIDGEPORT
• Manufacturer Part Number: 809-I
• Country of Origin: India

Technical Specifications

• Catalog Number: 809-I
• Manufacturer: Bridgeport Fittings, LLC
• Brand: Bridgeport
• Country of Origin: India
• Made in USA: No
• Application: 90 Degrees fitting with cover used for connecting flexible metal conduit to box or enclosure.
• Finish: Zinc Electro-Plated
• Material: Malleable Iron
• Standard: cULus, CSA
• UPC: 781747108098
• GTIN: 00781747108098
• Item Type: Connector
• Size: 1 1/2 in
• Temperature Rating: 105 Degrees C
• Type: 90 Degree
• Trade Size: 1-1/2 Inch
• Knockout Size: 1-1/2 Inch
• Cable Opening: Single
• Cable/Conduit Type: Flexible Metal Conduit
• Length: 3-1/2 Inch
• Throat Type: Insulated
• Approval: UL (Canada and US), CSA
• ROHS Compatible: True
• Throat Size: 1.41 Inch Dia
• Angle: 90 Deg
• Applications: 90 Degrees fitting with cover used for connecting flexible metal conduit to box or enclosure.
• Connector Type: FMC
• Ul Standard: UL-514B
