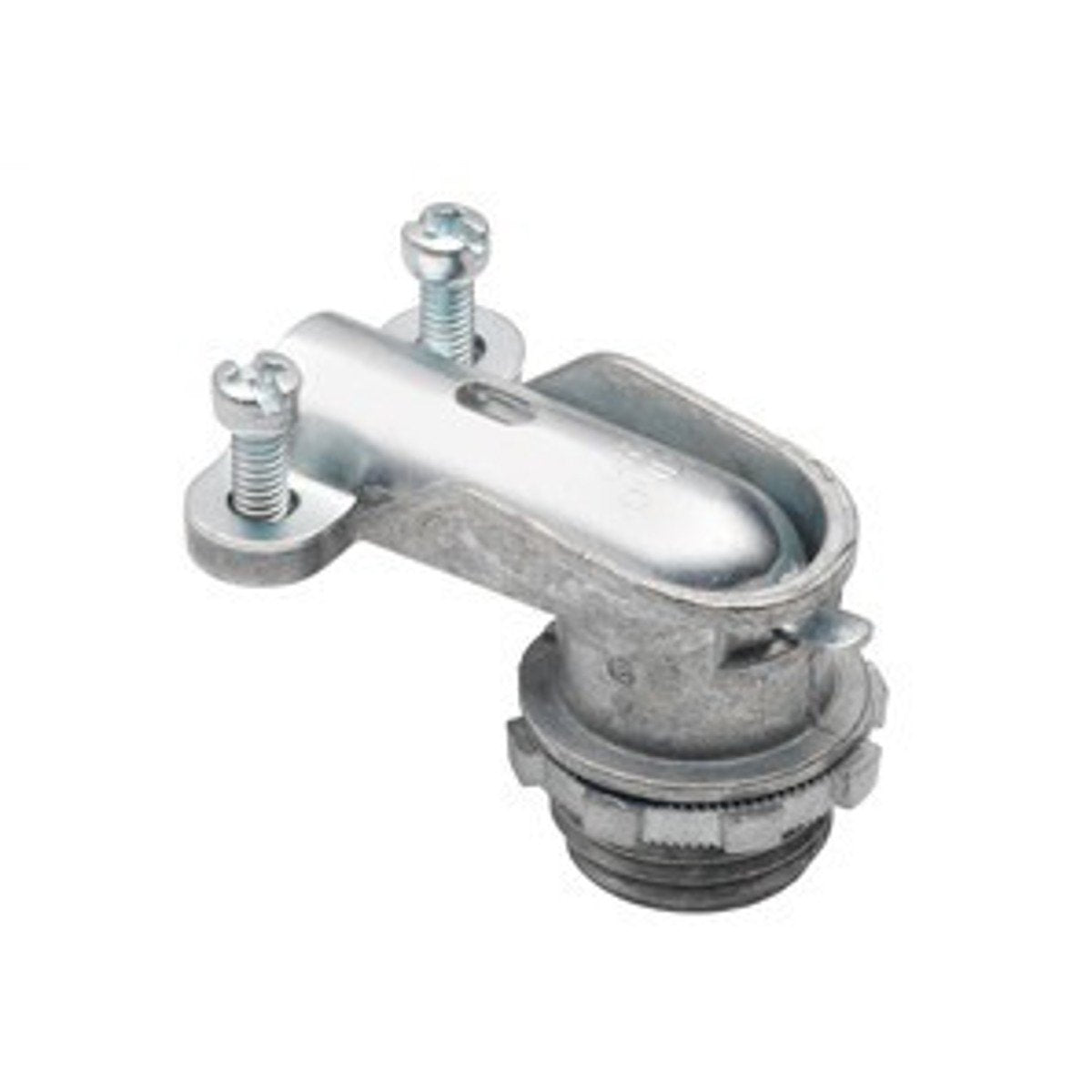

Bridgeport 801-DCI2 Connector, 90 Degrees, Zinc Die Cast, Insulated Throat, Flex Size 3/8 Inch

Product Description

The Bridgeport 801-DCI2 is a 90 degrees connector designed for connecting flexible metal conduit to boxes or enclosures. The insulation is rated for one hundred five degrees Celsius. This connector accommodates wire sizes ranging from twelve to ten gauge.

• Constructed from durable zinc die-cast material.
• Suitable for flexible metal conduit connections.
• Includes a two-way Phillips and slotted head screw.

Product Highlights

This connector is ideal for use in electrical installations where flexibility and ease of access are important.

Product Information

Standard Information

• Catalog Number: 801-DCI2
• Manufacturer: Bridgeport Fittings, LLC

Technical Specifications

• Material: Zinc Die Cast
• Size: 3/8 in
• Temperature Rating: 105 Degrees C
• Conductor Range: 12/2 (.560 0 min) to 10/3 (.610 0 max)
• NEMA Rating: FB-1
• Application: Connects flexible metal conduit to box or enclosure
• Made in USA: Yes
• UPC: 781747168016
